CMM363-2G
CLOUD MONITORING COMMUNICATION MODULE
USER MANUAL
SMARTGEN (ZHENGZHOU) TECHNOLOGY CO., LTD.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CMM363-2G and is the answer not in the manual?

Questions and answers

Summary of Contents for Smartgen CMM363-2G

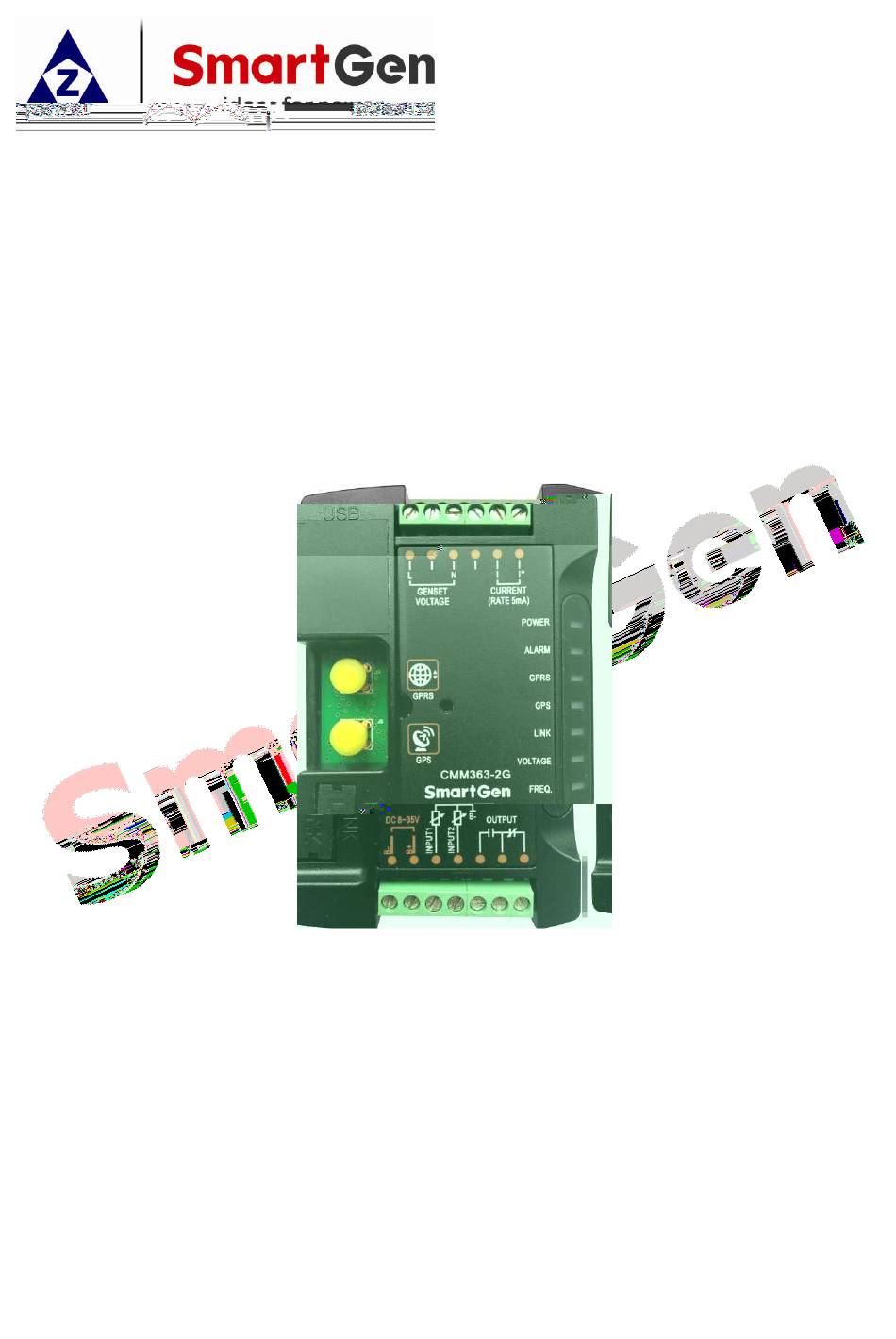

  • Page 1 CMM363-2G CLOUD MONITORING COMMUNICATION MODULE USER MANUAL SMARTGEN (ZHENGZHOU) TECHNOLOGY CO., LTD.
  • Page 2: Table Of Contents

    CMM363-2G Cloud Monitoring Communication Module User Manual CONTENT OVERVIEW ............................4 PERFORMANCE AND CHARACTERISTICS ..................4 SPECIFICATION ..........................5 PANEL AND TERMINAL DESCRIPTION ..................6 PANEL INDICATION AND BUTTONS ..................6 GPRS ............................7 GPS ............................7 SIM INSTALLATION ......................... 7 TERMINAL ..........................
  • Page 3 CMM363-2G Cloud Monitoring Communication Module User Manual Chinese trademark English trademark SmartGen — make your generator smart SmartGen Technology Co., Ltd. No.28 Jinsuo Road Zhengzhou Henan Province P. R. China Tel: 0086-371-67988888/67981888 0086-371-67991553/67992951 0086-371-67981000(overseas) Fax: 0086-371-67992952 Web: http://www.smartgen.com.cn http://www.smartgen.cn Email: sales@smartgen.cn...
  • Page 4: Overview

    CMM363-2G Cloud Monitoring Communication Module U1(m74 c6(m)3Sq107.05...
  • Page 5: Specification

    CMM363-2G Cloud Monitoring Communication Module User Manual system. All parameters are adjusted via PC through the LINK interface. 11) A variety of temperature, pressure, and oil level sensor curve can be used directly and be customized. 12) Widely power supply: DC (8~35) V, can adapt to different battery voltage environment.
  • Page 6: Panel And Terminal Description

    CMM363-2G Cloud Monitoring Communication Module User Manual 4 PANEL AND TERMINAL DESCRIPTION 4.1 PANEL INDICATION AND BUTTONS Icon Note Green LED Light: Cloud transmission communication normal POWER Red LED Light: Power supply indicator Normally Extinguish: Alarm free ALARM(Red) 0.5s Blink: Outage alarm...
  • Page 7: Gprs

    CMM363-2G Antenna Connection 4.4 SIM INSTALLATION Insert SIM card, CMM363-2G will connect to servers via GPRS network. Note: Only mobile and Unicom network are supported. Use standard SIM card (25mmX15mm); If GPS indicator and GPRS indicator blink in the same time, which means SIM card hasn’t been inserted or bad contacts.
  • Page 8: Terminal

    CMM363-2G Cloud Monitoring Communication Module User Manual 4.5 TERMINAL Function Cable Size Note 1.0mm Connected with negative of starter battery. Connected with positive of starter battery. 3A fuse is 1.0mm recommended. Aux. Input 1 1.0mm Connect analog sensors Aux. Input 2 1.0mm...
  • Page 9: Protection

    CMM363-2G Cloud Monitoring Communication Module User Manual PROTECTION 5.1 ALARM When warning signals been detected, the controller only warning not closing down. Controller warning parameters as below: Type Description Controller issued warning signal when detected genset frequency over the Over-frequency pre-set alarm threshold.
  • Page 10: Shutdown Alarm

    CMM363-2G Cloud Monitoring Communication Module User Manual 5.2 SHUTDOWN ALARM Shutdown alarm immediate output when the controller detects shutdown alarm signal. Shutdown alarms as bellow: Type Description When the controller detects that the genset frequency has exceeded Over-frequency the pre-set value, it will initiate a shutdown alarm.
  • Page 11: Programmable Parameters

    CMM363-2G Cloud Monitoring Communication Module User Manual 6 PROGRAMMABLE PARAMETERS 6.1 CONTENTS AND SCOPES OF PARAMETERS Items Parameters Default Description Module Setting Time Zone (-12-12) Setting time zone. Address of controller when remote Address (1-254) control. History Data History data upload interval.
  • Page 12 CMM363-2G Cloud Monitoring Communication Module User Manual Transformer Over-voltage (0-200)% Protection on input threshold value is Shutdown percentage of gen rated voltage. Delay Under-voltage (0-200)% also can be set. Shutdown Over-frequency (0-200)% Protection input threshold value is Shutdown percentage of gen rated frequency.
  • Page 13 CMM363-2G Cloud Monitoring Communication Module User Manual When external sensor’s temperature exceeds 98, high downtime alarm High Downtime (0-1000) ºC will be initiated. Only when protection input is valid, will it start to judge. Delay value can be set. When external sensor’s temperature...
  • Page 14 CMM363-2G Cloud Monitoring Communication Module User Manual Form1 Item Description Not Used Not used. Lamp Test All the indicators are illuminated when input is active. Warning Alarm Input WBTTm0 g[ ( S)42(t)5(op )4(a)115.6 re431.5.81.45 479.83( )] TJETen-US Only warning without stopping when input is active.
  • Page 15 CMM363-2G Cloud Monitoring Communication Module User Manual Sensor 2 Open Circuit Sensor 2 open circuit alarm action. Sensor 2 Low Alarm Sensor 2 low warning alarm action. Sensor 2 Low Stop Alarm Sensor 2 low stop alarm action. Sensor 2 High Alarm Sensor 2 high warning alarm action.
  • Page 16: Commisioning

    CMM363-2G Cloud Monitoring Communication Module User Manual 7 COMMISIONING Before the formal operation, suggest do checks as bellow: Confirm all wiring correct and the wire diameter suitable. Confirm module DC working power installed fuse and positive and negative electrode which connected to starter battery connect correctly.
  • Page 17: Case Dimension And Installation

    CMM363-2G Cloud Monitoring Communication Module User Manual 9 CASE DIMENSION AND INSTALLATION CMM363-2G Case Dimension CMM363-2G Guide Rail Installation Screw Installation CMM363-2G Cloud Monitoring Communication Module 2016-08-21 Version 1.0 Page 17 of 18...
  • Page 18: Fault Finding

    CMM363-2G Cloud Monitoring Communication Module User Manual AC Input Controller current input must connect with CT and CT secondary current must be 5mA. Meanwhile, phase of CT and phase of voltage must be correct. Otherwise, the sample current and the active power may be incorrect.
