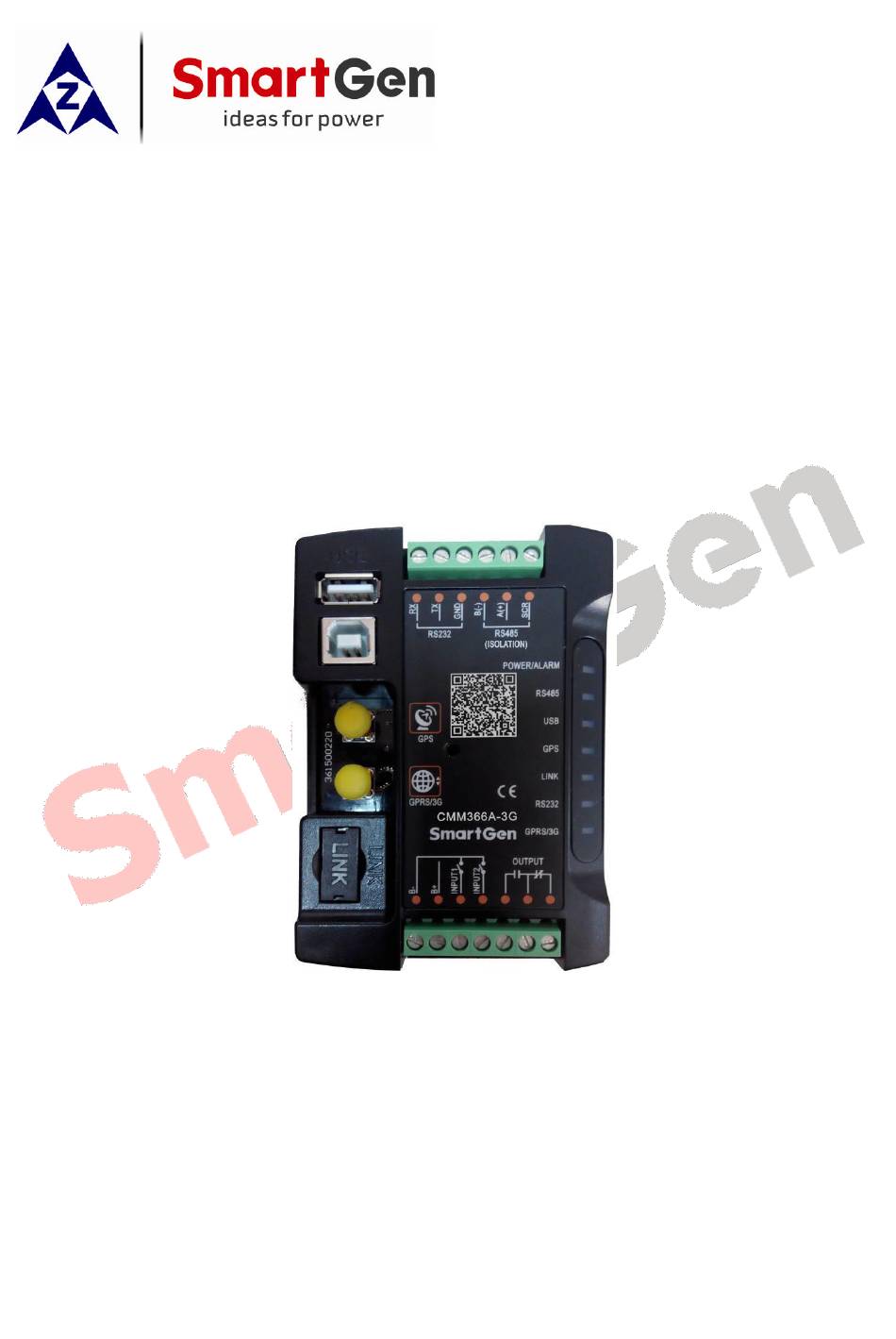

- Page 1 CMM366A-3G CLOUD MONITORING COMMUNICATION MODULE USER MANUAL SMARTGEN (ZHENGZHOU) TECHNOLOGY CO., LTD.
- Page 2 SmartGen Technology at the address above. Any reference to trademarked product names used within this publication is owned by their respective companies. SmartGen Technology reserves the right to change the contents of this document without prior notice. Table 1 - Software Version Date...
-
Page 3: Table Of Contents
CMM366A-3G Cloud Monitoring Communication Module User Manual CONTENT OVERVIEW ............................4 PERFORMANCE AND CHARACTERISTICS ..................4 SPECIFICATION ..........................5 PANEL AND TERMINAL DESCRIPTION................... 6 PANEL INDICATOR AND BUTTONS ................... 6 GPRS ............................7 GPS .............................. 7 SIM INSTALLATION ........................7 RS485 ............................ -
Page 4: Overview
APP (IOS or Android) and PC terminal devices. CMM366A-3G module not only can achieve genset monitoring but also can insert some digital alarm input/output signal to achieve monitoring of generator room entrance guard, guard against theft and fire facilities. -
Page 5: Specification
CMM366A-3G Cloud Monitoring Communication Module User Manual SPECIFICATION Table 2 – Technical Data Items Contents Operating Voltage DC 8.0V~35.0V, continuous power supply. Standby: ≤2W Power Consumption Working: ≤5W Auxiliary Input Digital Input, connect (B-) is active. Auxiliary Output 1A DC30V Volts free output... -
Page 6: Panel And Terminal Description
CMM366A-3G Cloud Monitoring Communication Module User Manual PANEL AND TERMINAL DESCRIPTION PANEL INDICATOR AND BUTTONS Table 3 – Indicators Description Icon Note GreenLED Light: Power supply normal indicator; POWER/ALARM RedLED Light: Common alarm indicator. Normally Extinguish: RS485 disabled; RS485(Red) Normally Light: Communication fail;... -
Page 7: Gprs
NOTE: GPRS antenna and GPS antenna cannot be connected reversely. SIM INSTALLATION Insert 3G or 2G SIM card. CMM366A-3G will connect to servers via GPRS network. NOTE: WCDMA 3G network, all 2G network are supported. Use standard SIM card (25mmX15mm); GPS indicator and GPRS indicator blink in the same time, which means SIM card hasn’t been inserted or bad contacts. -
Page 8: Link
CMM366A-3G Cloud Monitoring Communication Module User Manual RS485 Receive genset data information by connecting module RS485 port with Genset Controller RS485 port. If communication is abnormal, 120Ω terminal resistance is recommonded. One end of shield wire hangs in the air and the other one connects with SCR. -
Page 9: Usb Host
USB cable.. Figure 6 - USB HOST Connection USB DEVICE All the parameters can be configured and view CMM366A-3G ID&Login password by connecting USB port with USB disk of PC software. Figure 7 – USB Connect PC Device CMM366A-3G Cloud Monitoring Communication Module 2017-12-23 Version 1.0... -
Page 10: 4.10 Terminal
CMM366A-3G Cloud Monitoring Communication Module User Manual 4.10 TERMINAL Table 4 – Terminals Description Function Cable Size Note 1.0mm Connected with negative of starter battery. Connected with positive of starter battery. 3A fuse 1.0mm is recommended. Aux. Input 1 1.0mm Active when connect to B-. -
Page 11: Programmable Parameters
CMM366A-3G Cloud Monitoring Communication Module User Manual PROGRAMMABLE PARAMETERS CONTENTS AND SCOPES OF PARAMETERS Table 5 – Parameter Content & Scope Items Parameters Defaults Description Gateway 20 Chinese characters, letters or Site Name (0-65535) numbers Server URL (0-65535) www.monitoryun.com 40 characters... - Page 12 CMM366A-3G Cloud Monitoring Communication Module User Manual restart up after all parameters been set. Table 6 – Digital Input Ports Content Item Description Not Used Not used. Lamp Test All the indicators are illuminated when input is active. Remote Control Inhibited Cloud start/stop control is prohibited when input is active.
-
Page 13: Pc Configuration Interface
CMM366A-3G Cloud Monitoring Communication Module User Manual PC CONFIGURATION INTERFACE Connecting the USB port of CMM366A-3G communication module with PC USB port to configure the parameters. Figure 8 - Gateway Configuration Figure 9 - Module Monitoring Interface CMM366A-3G Cloud Monitoring Communication Module 2017-12-23 Version 1.0... -
Page 14: System Diagram
CMM366A-3G Cloud Monitoring Communication Module User Manual SYSTEM DIAGRAM One CMM366A-3G module connects with one genset monitor module. It can be connected via RS485 port, LINK port, RS232 port or USB port. Figure 10 - CMM366A System Application Diagram CMM366A-3G Cloud Monitoring Communication Module 2017-12-23 Version 1.0... -
Page 15: Case Dimension And Installation
CMM366A-3G Cloud Monitoring Communication Module User Manual CASE DIMENSION AND INSTALLATION 2 ways for installation: 35mm guide rail in box or screw (M4) installation as below: Figure 11 - CMM366A-3G Case Dimension Figure 12 - CMM366A-3G Guide Rail Installation Figure 13 - CMM366A-3G Screw Installation... -
Page 16: Troubleshooting
CMM366A-3G Cloud Monitoring Communication Module User Manual TROUBLESHOOTING Table 8 – Fault Finding Symptoms Possible Solutions Controller no response with Check power voltage; power. Check controller connection wirings. Check SIM card is inserted or not; GPRS/3G Indicator Not Light Check GPRS antenna is connected or not. -
Page 17: Packing List
CMM366A-3G Cloud Monitoring Communication Module User Manual PACKING LIST Table 9 Packing List Name Quantity Remark CMM366A-3G Osculum type antenna External GPS antenna 120Ωmatched resistor Certification User manual _________________________________ CMM366A-3G Cloud Monitoring Communication Module 2017-12-23 Version 1.0 Page 17 of 17...
