Gemini VII 2390 Service

Windows Environment

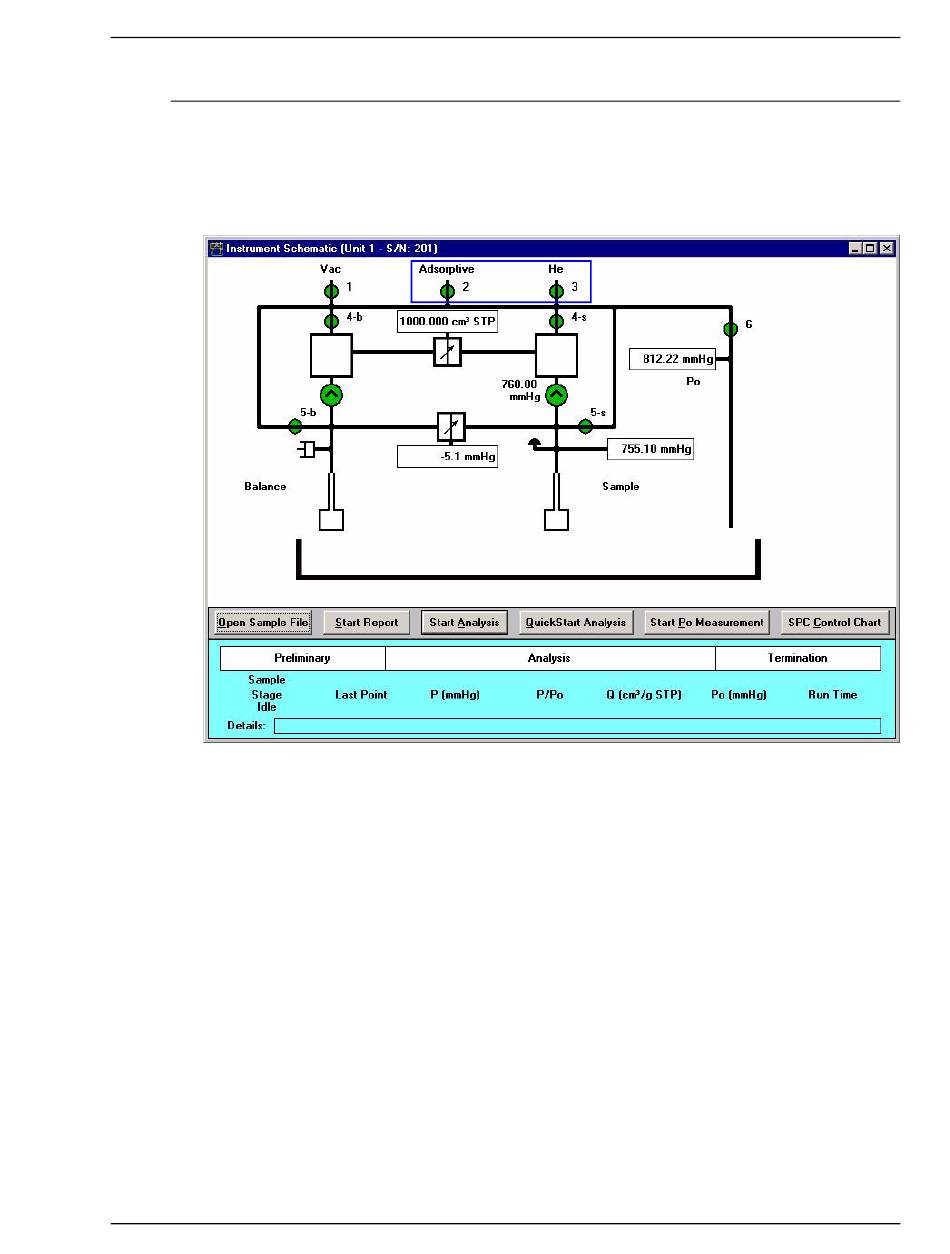

In the Windows environment, the instrument schematic is used to manually control
components. Manual control is enabled by selecting Unit > Manual Control from the menu
bar.
12
Schematic legend:
1 Vacuum port
2 Gas inlet manifold
3 Po valve (p, t models only)
4 Po Transducer/reading (p, t models only)
5 Balance reservoir valve
6 Balance reservoir
7 Balance servo valve
8 Volume adsorbed transducer (reading above)
9 Sample reservoir valve
10 Sample reservoir
All transducers are 1000 torr unless otherwise stated.
This illustration shows all components on the schematic; only valves and the elevator can be
manually controlled.
Feb 09
1
5
6
8
7
13
15
18
2
9
10
11
14
17
16
19
11 Sample servo valve
12 Balance port valve
13 Balance transducer, 10-torr differential
(reading below)
14 Sample port valve
15 Balance adjustment screw
16 Pressure relief valve
17 Sample transducer/reading
18 Balance port tube
19 Sample port tube
20 Elevator
Manual Control
3
4
20
2-17
