Water Connection - mectron COMPACT PIEZO P2K Installation Manual

COMPACT PIEZO P2K
4.4 Water Connection
The COMPACT PIEZO P2K requires a water
supply line to cool the handpiece and inserts
during the operating cycle.
The device is sold with a connecting cable
between the electronic module and handpiece
equipped with a polyurethane tube with 1.3
mm internal diameter (see Figure 13 on page
24).
The water line of the dental unit must satisfy
the following requirements:
• Guarantee a supply pressure between:
1.00 ÷ 6.00 bar;
• Be fitted with a solenoid valve, 24 V
2.5W maximum, to control the opening
of the irrigation circuit;
• Downstream of the pressure regulator
24
For details of the procedure to regulate
the pressure and flow rate, see the use and
installation manual of the dental unit.
Connect the water circuit in a stable manner in
compliance with standard ISO 60601, seeking
to isolate the water circuit as much as possible
from the live electrical parts.
CAUTION: The water hose of the scaler
handpiece cord must be directly connected
to the dental unit cold water circuit.

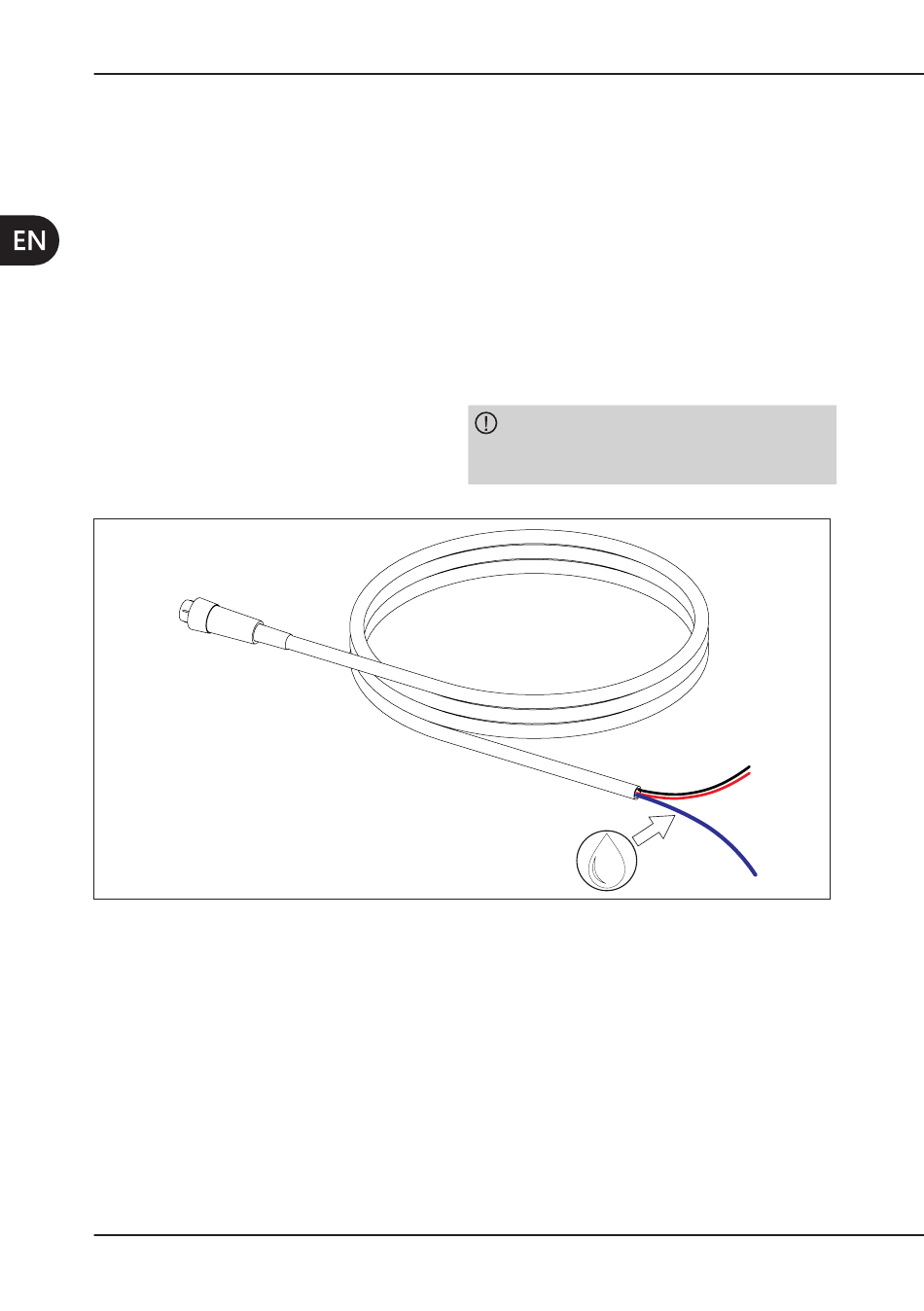

Figure 13 – Water hose in cord.
and solenoid valve, be fitted with
a valve dedicated to supplying the
COMPACT PIEZO P2K handpiece and
able to regulate and guarantee a water
flow rate of 20 ÷ 30 ml/min.
Ø 2,5x1,3mm
H₂O
