Layout C; Layout D - mectron COMPACT PIEZO P2K Installation Manual

4.3.8.3 Layout C
The power supply (32 V
consent is provided by the pedal. The power is regulated by a 2.2KΩ linear potentiometer (see
Figure 7 on page 21). This type of connection allows very rapid ON/OFF cycles and does not
occupy the external power circuit with high loads.
2.2 KΩ linear
potentiometer
Yellow
Yellow
Solenoid valve
(optional)
24 V
2,5W maximum
Green
4.3.8.4 Layout D
The power supply (32 V
consent is provided by the pedal. The power is regulated by a 2.2KΩ linear potentiometer (see
Figure 8 on page 21). This type of connection allows very rapid ON/OFF cycles and does not
occupy the external power circuit with high loads.
2.2 KΩ linear
potentiometer
Solenoid valve
(optional)
24 V
2,5W maximum
±10%) is provided by contact with the instrument tray and positive
Pedal Instrument tray
Fuse holder, fuse, instrument
tray and pedal are not
included in the Mectron supply
9 16
8 7 6 5 4 3 2 1

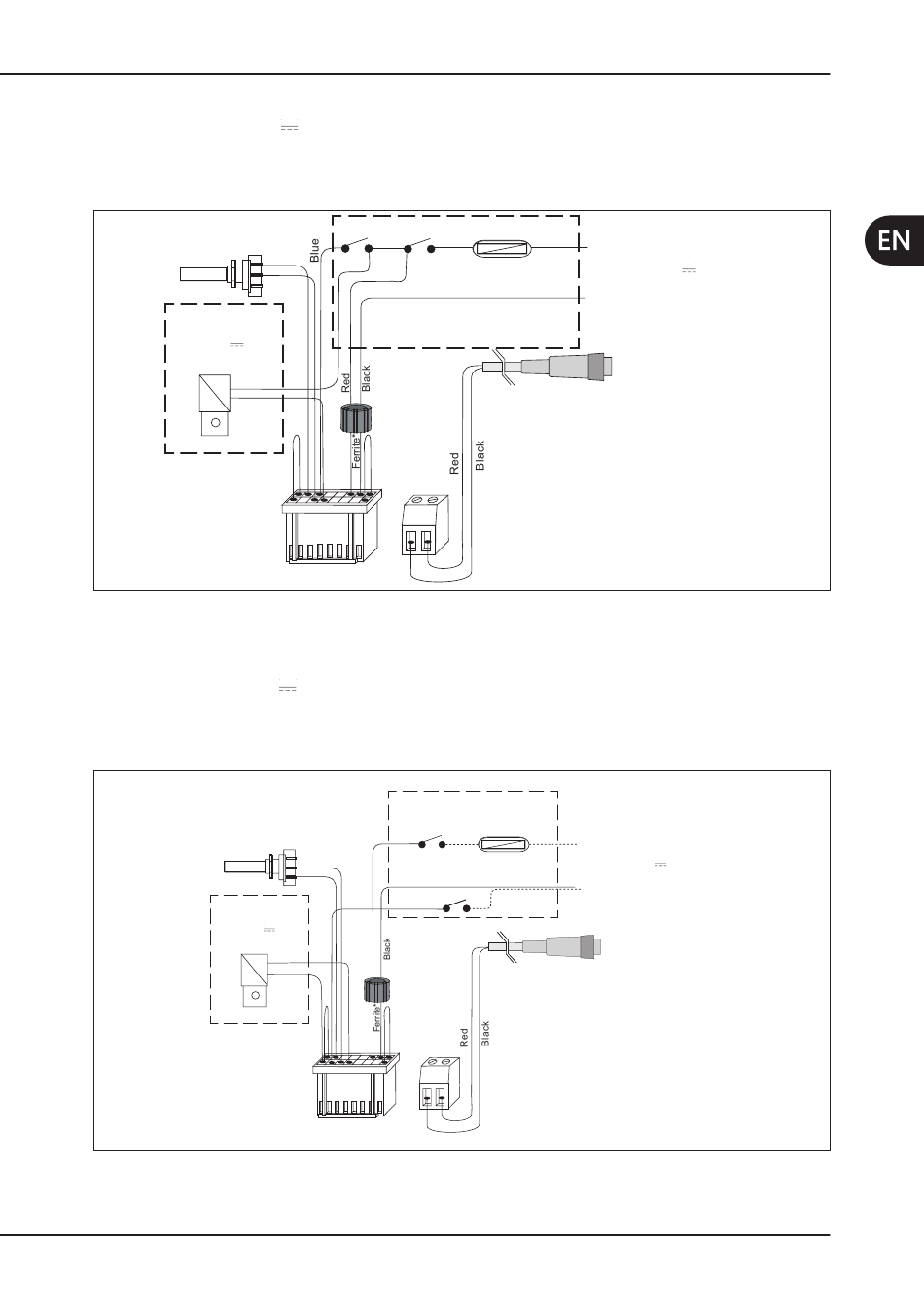

Figure 7 – Layout C
±10%) is provided by contact with the instrument tray and negative
Fuse holder, fuse, instrument
tray and pedal are not
included in the Mectron supply
Instrument tray
Yellow
Yellow
Pedal
Green
Green
9 16
8 7 6 5 4 3 2 1
Figure 8 – Layout D
INSTALLATION
Fuse
Positive
Power supply
T 2 A
32 V
Minimum 40VA
Negative
Scaler handpiece cord
Positive
Power supply
Fuse
32 V
T 2 A
Minimum 40VA
Negative
Scaler handpiece cord
21
