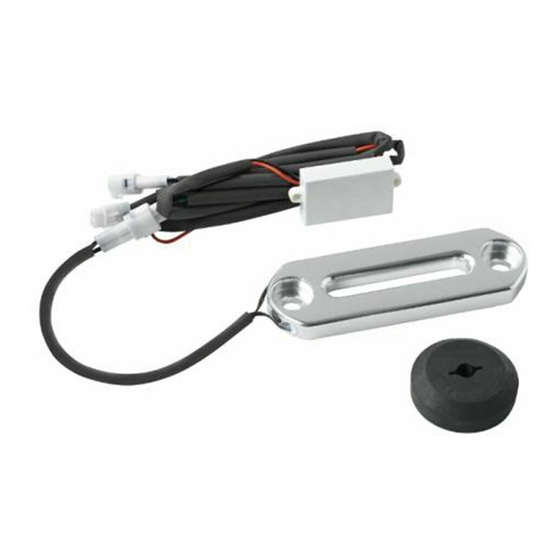

ATV / UTV Auto–Winch Stop Kit
Product Instructions | Part No: 25-0600 / 25-0650
Application:
Verify accessory fitment at Kolpin.com.
Before You Begin:
Read these instructions and check to be sure all parts and tools are accounted for. Please retain
these installation instructions for future reference and parts ordering information.
Note: If any hardware is missing, do not return to the store. Call us to help, Toll Free 1-877-956-5746.
4
3
This Kit includes:
Note: Depending
on vehicle
application, extra
wire and/or
hardware may be
necessary.
6
Item
Qty
1
1
1
2
1
3
1
4
2
Socket Head Cap Screw, Zinc Plated, M10 - 1.5 x 25mm LG
5
2
Button Screw, Zinc Plated, #10 x 3/4" LG, T25 Torx Drive
6
2
7
4
8
1
© 2019 Kolpin Outdoors Inc.
2
Part Description
Control Box, Hawse Fairlead
Narrow Hawse Fairlead (PN 25-0600)
Wide Hawse Fairlead (PN 25-0650)
Rubber Bumper Magnet Stop
Flange Locknut, Zinc Plated, M10 - 1.5
Scotch Lock Splice Connector
Instruction Guide (not shown)
1
REV 00
7
1
5
Part Number
2413444
-
-
-
-
-
-
-
-
Advertisement
Table of Contents
Related Manuals for Kolpin Outdoors 25-0600
Summary of Contents for Kolpin Outdoors 25-0600
- Page 1 ATV / UTV Auto–Winch Stop Kit Product Instructions | Part No: 25-0600 / 25-0650 Application: Verify accessory fitment at Kolpin.com. Before You Begin: Read these instructions and check to be sure all parts and tools are accounted for. Please retain these installation instructions for future reference and parts ordering information.
- Page 2 3. Gain access to the battery. Disconnect black frame. Death or serious injury may occur. (negative) and red (positive) cables from battery as shown. Retain bolts for use during reinstallation. (See illustration 1-1). © 2019 Kolpin Outdoors Inc. REV 00...
- Page 3 Ill. 1-3 shown. (See illustration 1-5). 8. Tighten fasteners to specification. Ill. 1-4 Clevis 10MM FASTENER TORQUE: 34 ft. lbs. (46 Nm) Cotter Wires in this direction Recessed holes Ill. 1-5 © 2019 Kolpin Outdoors Inc. REV 00...
- Page 4 12. Secure the control box (item #1) to the frame or wire harness using cable ties (not included) or included screws (item #5). Make sure to secure in a location to avoid hot or moving parts. Ill. 1-9 © 2019 Kolpin Outdoors Inc. REV 00...
- Page 5 Peripheral products such as engines, electric motors, and actuators may carry an original manufacturer’s warranty. Most hardware is general in nature and is easily obtained locally. Be sure to replace with minimum metric class 8.8 specification. © 2019 Kolpin Outdoors Inc. REV 00...
- Page 6 To vehicle ground To vehicle 12V terminal keyed accessory power Connect harnesses together Item #1 To control switches (wireless remote, dash mount, corded remote, handlebar) Item #2 Connect harnesses together To vehicle battery power © 2019 Kolpin Outdoors Inc. REV 00...
