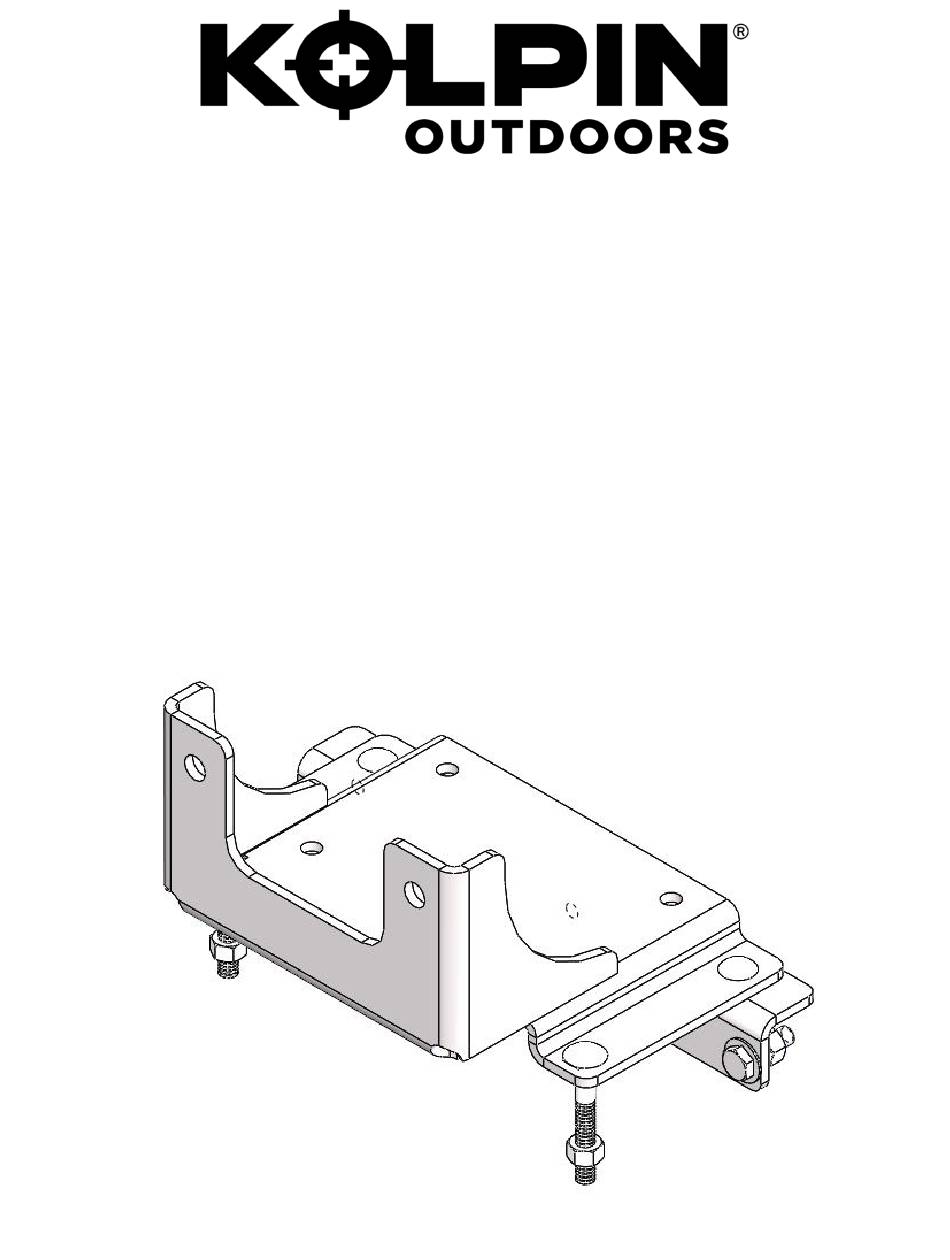

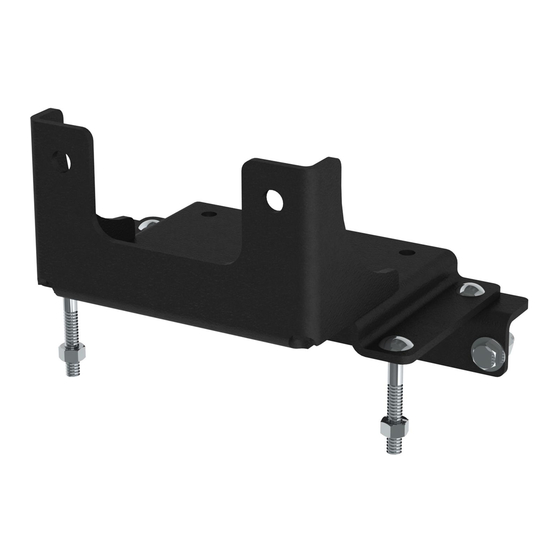

WINCH MOUNT KIT
FOR JOHN DEERE XUV 625-825-855
P/N 25-8810
ASSEMBLY / OWNERS MANUAL
Application
WINCH KIT NO. 25-9xxx
Before You Begin, please read these instructions and check to be sure all parts and tools are
accounted for. The following instructions contain details required to install and service the contents
of this kit.
© 2020 Kolpin Outdoors Inc.
REV 01
Advertisement
Table of Contents
Related Manuals for Kolpin Outdoors 25-8810
Summary of Contents for Kolpin Outdoors 25-8810
- Page 1 Before you begin, please read these instructions and check to be sure all parts and tools are accounted for. The following instructions contain details required to install and service the contents of this kit. © 2020 Kolpin Outdoors Inc. REV 01...
- Page 2 Do not use your winch or winch mount for towing. Do not shock load the winch, cable or winch mount. Keep fingers, hands and loose clothing away from roller fairlead and winch cable drum when in use. © 2020 Kolpin Outdoors Inc. REV 01...
- Page 3 Carriage Bolt, Zinc Plated, M8-1.25 x 60mm LG Flange Hex Bolt, Zinc Plated, M8-1.25 x 25mm LG Hex Locknut, Zinc Plated, M8-1.25 Carriage Bolt, Zinc Plated, M8-1.25 x 20mm LG Instruction Guide (not shown) © 2020 Kolpin Outdoors Inc. REV 01...
- Page 4 Install the winch to the mount plate (item #1) using the hardware from winch kit. (See illustration 1-1). 3. Tighten M8 hardware to specification. Hardware included with winch 8MM FASTENER TORQUE: 17 ft. lbs. (23 Nm) © 2020 Kolpin Outdoors Inc. REV 01...
- Page 5 5. Insert the winch mount assembly into position on the bumper as shown. (See illustrations 1-2, 1-3 and 1-5). Ill. 1-2 Ill. 1-3 Rear back support bar #4 & #5 Ill. 1-4 © 2020 Kolpin Outdoors Inc. REV 01...
- Page 6 Spooling the cable as shown will prolong cable life and enhance winch performance. (See illustration 1-7). 11. Connect the hook to cable or rope by using hardware included in winch kit. Ill. 1-7 © 2020 Kolpin Outdoors Inc. REV 01...
- Page 7 Most hardware is general in nature and is easily obtained locally. Be sure to replace with minimum metric class 8.8 specification. Kolpin Outdoors, Inc. Telephone: (763)-478-5800 Toll Free: (877)-956-5746 Fax Number: (800)-245-7569 www.kolpin.com Email: customerservice@kolpin.com © 2020 Kolpin Outdoors Inc. REV 01...
