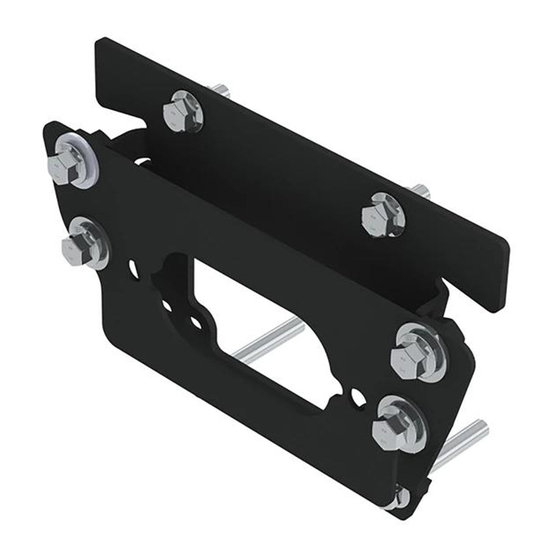

WINCH MOUNT KIT
FOR KAWASAKI TERYX KRX 1000
P/N 25-2380
ASSEMBLY / OWNERS MANUAL
Application
WINCH KIT NO. 25-9xxx
Before you begin, please read these instructions and check to be sure all parts and tools are
accounted for. The following instructions contain details required to install and service the contents
of this kit.
© 2022 Kolpin Outdoors Inc.
REV 00
Advertisement
Table of Contents
Related Manuals for Kolpin Outdoors 25-2380
Summary of Contents for Kolpin Outdoors 25-2380
- Page 1 Before you begin, please read these instructions and check to be sure all parts and tools are accounted for. The following instructions contain details required to install and service the contents of this kit. © 2022 Kolpin Outdoors Inc. REV 00...
- Page 2 Do not use your winch or winch mount for towing. Do not shock load the winch, cable or winch mount. Keep fingers, hands and loose clothing away from roller fairlead and winch cable drum when in use. © 2022 Kolpin Outdoors Inc. REV 00...
-
Page 3: Kit Contents
Hex Flange Bolt, Zinc Plated, M10-1.5 x 30mm LG Hex Flange Bolt, Zinc Plated, M10-1.5 x 70mm LG Hex Flange Locknut, Zinc Plated, M10-1.5 Lock Washer, Zinc Plated, M10 Flat Washer, Zinc Plated, M10 Instruction Guide (not shown) © 2022 Kolpin Outdoors Inc. REV 00... -
Page 4: Before You Begin
4. Locate the battery box, release clips and remove current electrical arc, and may result in battery cover. Disconnect black (negative) and red (positive) explosion if tool touches grounded frame. Death or cables from battery. serious injury may occur. © 2022 Kolpin Outdoors Inc. REV 00... - Page 5 (item #1) as shown. (See illustrations 1-3, 1-4 and 1-8). Note, the Kolpin winch mount 25-2380 has two winch mounting options. One hole pattern for standard width winches and one hole pattern for wide mount winches.
- Page 6 (PN 85087). 12. Tighten M10 hardware to specifications. 10MM FASTENER TORQUE: 34 ft. lbs. (46 Nm) Backside of front bumper frame Hardware included with winch Ill. 1-7 © 2022 Kolpin Outdoors Inc. REV 00...
- Page 7 21. Reinstall the hood and battery box cover. 22. Reinstall driver’s seat. Ill. 1-9 23. With vehicle key in the ON position, check winch for proper operation. © 2022 Kolpin Outdoors Inc. REV 00...
-
Page 8: One Year Limited Warranty
Most hardware is general in nature and is easily obtained locally. Be sure to replace with minimum metric class 8.8 specification. Kolpin Outdoors, Inc. Telephone: (763)-478-5800 Toll Free: (877)-956-5746 Fax Number: (800)-245-7569 www.kolpin.com Email: customerservice@kolpin.com © 2022 Kolpin Outdoors Inc. REV 00...
