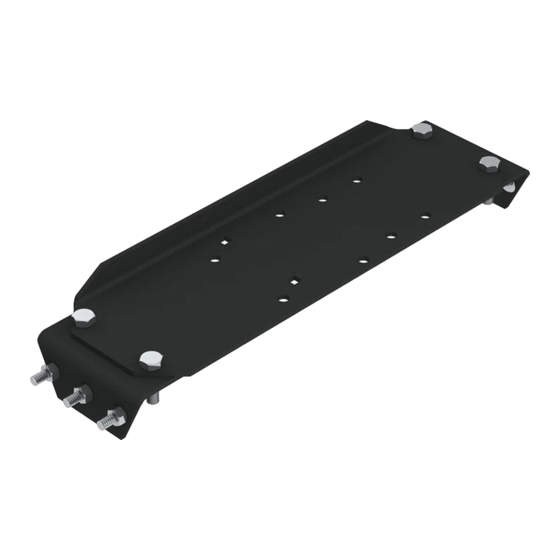

WINCH MOUNT KIT
FOR POLARIS RANGER
P/N 25-3221
ASSEMBLY / OWNERS MANUAL
Application
WINCH KIT NO. 25-9xxx
Before You Begin, please read these instructions and check to be sure all parts and tools are
accounted for. The following instructions contain details required to install and service the contents
of this kit.
© 2018 Kolpin Outdoors Inc.
REV 05
Advertisement
Table of Contents
Related Manuals for Kolpin Outdoors 25-3221
Summary of Contents for Kolpin Outdoors 25-3221

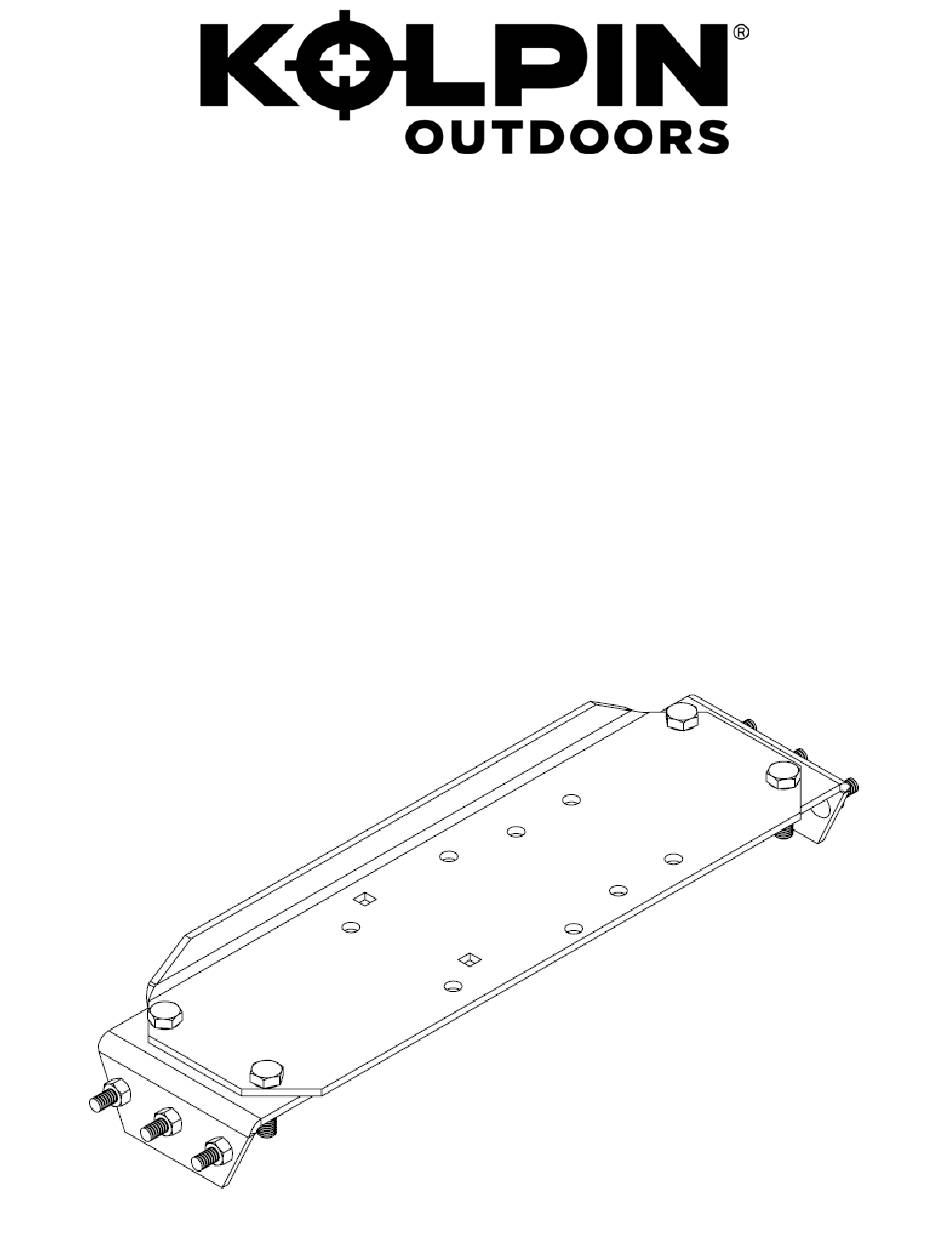

- Page 1 Before you begin, please read these instructions and check to be sure all parts and tools are accounted for. The following instructions contain details required to install and service the contents of this kit. © 2018 Kolpin Outdoors Inc. REV 05...
- Page 2 Do not use your winch or winch mount for towing. Do not shock load the winch, cable or winch mount. Keep fingers, hands and loose clothing away from roller fairlead and winch cable drum when in use. © 2018 Kolpin Outdoors Inc. REV 05...
- Page 3 Qty Part Description Part Number Winch Mount Bracket Angle Bracket Carriage Bolt, Zinc Plated, M8-1.25 x 25mm LG Hex Bolt, Zinc Plated, M10-1.5 x 35mm LG Lock Nut, Zinc Plated, M8-1.25 Instruction Guide (not shown) © 2018 Kolpin Outdoors Inc. REV 05...
- Page 4 Note: If any hardware is missing, do not return to the store. Call us to help, Toll Free 1-877-956-5746. SPARE KITS Hardware kit Item Description P/N CYC0017 Angle Bracket Carriage Bolt, Zinc Plated, M8-1.25 x 25mm LG Hex Bolt, Zinc Plated, M10-1.5 x 35mm LG Lock Nut, Zinc Plated, M8-1.25 © 2018 Kolpin Outdoors Inc. REV 05...
- Page 5 (item #1). Winch Mounting Options: The Kolpin winch mount 25-3221 has multiple winch mount- ing options. One common hole pattern is for standard width winches and the other common hole pattern is for wide mount winches.
- Page 6 (+) cable first, the reconnect black negative (-) cable to battery. 19. With the vehicle in the ON position, check winch for proper operation. 20. Retighten all hardware after 30 minutes of riding. Ill. 1-7 © 2018 Kolpin Outdoors Inc. REV 05...
- Page 7 Most hardware is general in nature and is easily obtained locally. Be sure to replace with minimum metric class 8.8 specification. Kolpin Outdoors, Inc. Telephone: (763)-478-5800 Toll Free: (877)-956-5746 Fax Number: (800)-245-7569 www.kolpin.com Email: customerservice@kolpin.com © 2018 Kolpin Outdoors Inc. REV 05...
