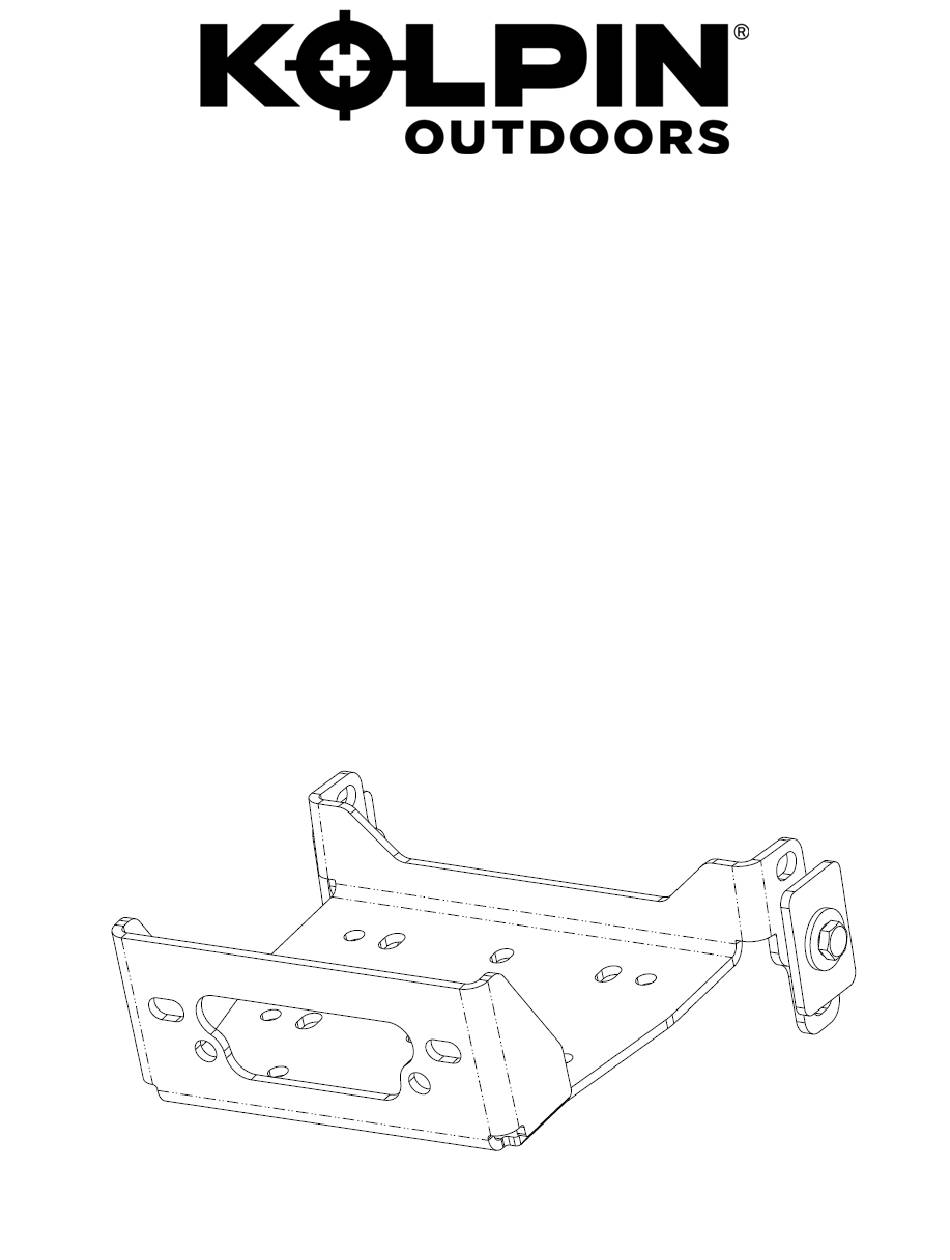

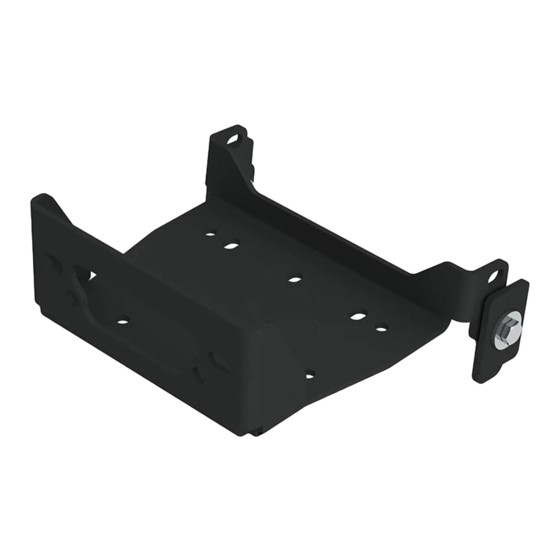

WINCH MOUNT KIT
FOR YAMAHA VIKING / WOLVERINE / WOLVERINE X2-X4
P/N 25-5310
ASSEMBLY / OWNERS MANUAL
Application
WINCH KIT NO. 25-9xxx
Before You Begin, please read these instructions and check to be sure all parts and tools are
accounted for. The following instructions contain details required to install and service the contents
of this kit.
© 2021 Kolpin Outdoors Inc.
REV 00
Advertisement
Table of Contents
Related Manuals for Kolpin Outdoors 25-5310
Summary of Contents for Kolpin Outdoors 25-5310
- Page 1 Before you begin, please read these instructions and check to be sure all parts and tools are accounted for. The following instructions contain details required to install and service the contents of this kit. © 2021 Kolpin Outdoors Inc. REV 00...
- Page 2 Do not use your winch or winch mount for towing. Do not shock load the winch, cable or winch mount. Keep fingers, hands and loose clothing away from roller fairlead and winch cable drum when in use. © 2021 Kolpin Outdoors Inc. REV 00...
- Page 3 Qty Part Description Part Number Winch Mount Plate Backer Plate Spacer Hex Bolt, Zinc Plated, M10-1.5 x 30mm LG Locknut, Zinc Plated, M10-1.5 Wide Flat Washer, Zinc Plated, M10 Instruction Guide (not shown) © 2021 Kolpin Outdoors Inc. REV 00...
- Page 4 (item #1) into vehicle frame. Save hardware Note, removing the for re-install later. bumper may not be required, but can help to gain access to make installation easier. © 2021 Kolpin Outdoors Inc. REV 00...
- Page 5 (See illustrations 1-4 and 1-5). Note, do not tighten at this time. Ill. 1-3 Viking/Wolverine shown Wolverine mount Wolverine X2-X4 shown, insert item #2 backer plate into Viking frame Ill. 1-4 mount Ill. 1-5 © 2021 Kolpin Outdoors Inc. REV 00...
- Page 6 17 ft. lbs. (23 Nm) 10MM FASTENER TORQUE: M8 Hardware 34 ft. lbs. (46 Nm) included with Winch Underneath bumper view Ill. 1-8 OEM holes in front bumper & mounting plate Holes in mount plate © 2021 Kolpin Outdoors Inc. REV 00...
- Page 7 17. Reconnect black negative (-) cable to battery, then positive cable (+). 18. With the vehicle key in the ON position, check winch for proper operation. 19. Retighten all hardware after 30 minutes of riding. Contactor © 2021 Kolpin Outdoors Inc. REV 00...
- Page 8 Most hardware is general in nature and is easily obtained locally. Be sure to replace with minimum metric class 8.8 specification. Kolpin Outdoors, Inc. Telephone: (763)-478-5800 Toll Free: (877)-956-5746 Fax Number: (800)-245-7569 www.kolpin.com Email: customerservice@kolpin.com © 2021 Kolpin Outdoors Inc. REV 00...
