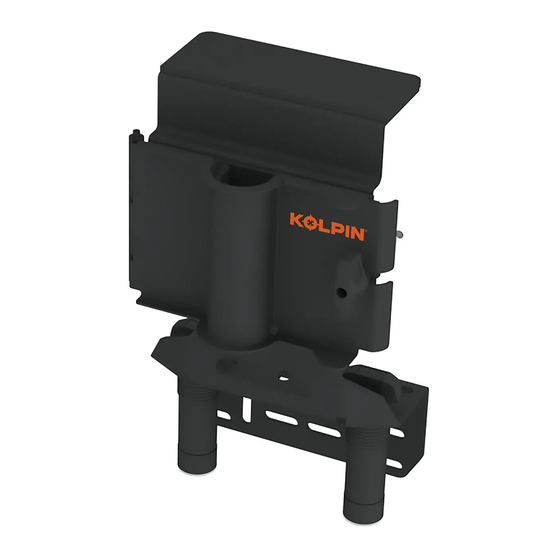

Polaris Ranger Off-Road Vehicle
Chainsaw Mount Kit
Product Instructions | Part No: 20049
Application:
Verify accessory fitment at Kolpin.com.
Before You Begin:
Read these instructions and check to be sure all parts and tools are accounted for. Please retain
these installation instructions for future reference and parts ordering information.
Note: If any hardware is missing, do not return to the store. Call us to help, Toll Free 1-877-956-5746.
9
8
10

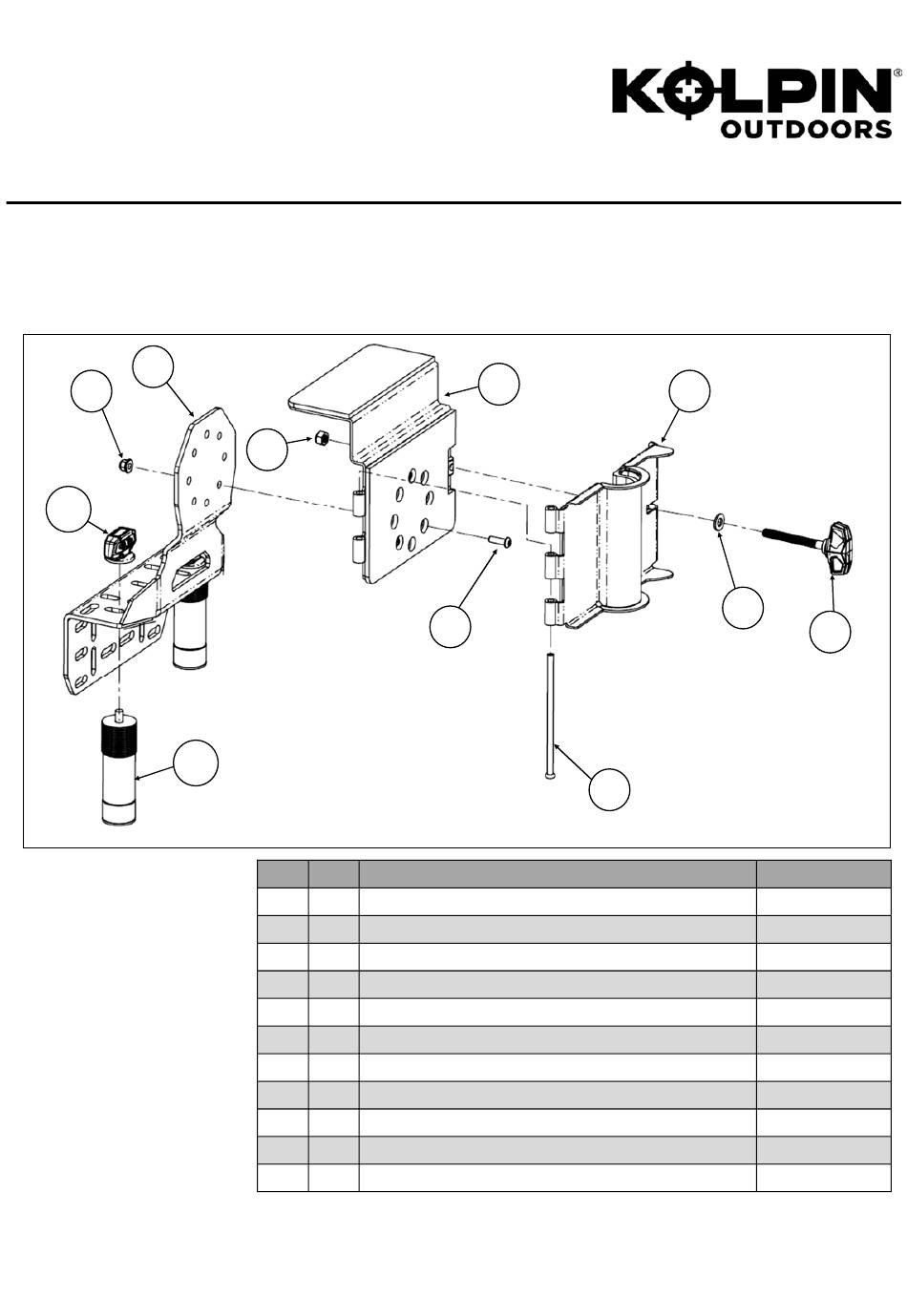

This Kit includes:
Note: Depending on
vehicle application,
extra self-tapping
screws (not included)
can be used to secure
bed bracket (item #9)
to cargo bed.
6
10
Item
Qty
1
1
2
1
3
1
4
1
5
1
6
1
7
3
8
3
9
1
10
2
11
1
© 2020 Kolpin Outdoors Inc.
2
7
Part Description
Clamping Door Assembly
Mount Base Assembly
Fixed Hinge Pin
Turn Knob Screw, Zinc Plated, M8-1.25 x 70mm LG
Flat Fender Washer, Zinc Plated, M8
Hex Locknut, Zinc Plated, M8-1.25
Button Screw, Zinc Plated, M6-1.0 x 20mm LG, Torx Drive
Hex Flange Locknut, Zinc Plated, M6-1.0
UTV Bed Bracket
Polaris UTV Lock & Ride Plunger Anchor
Instruction Guide (not shown)
1
REV 00
1
5
3
4
Part Number
-
-
-
-
-
-
-
-
-
98510
-
Advertisement
Table of Contents
Related Manuals for Kolpin Outdoors 20049
Summary of Contents for Kolpin Outdoors 20049
- Page 1 Polaris Ranger Off-Road Vehicle Chainsaw Mount Kit Product Instructions | Part No: 20049 Application: Verify accessory fitment at Kolpin.com. Before You Begin: Read these instructions and check to be sure all parts and tools are accounted for. Please retain these installation instructions for future reference and parts ordering information.
- Page 2 7 ft. lbs. (9.5 Nm) Ill. 1-1 2. The hinged plate assembly can be set at 45 degree angle increments to the mount bracket to accommodate your UTV and Saw preferences. (See illustration 1-2). Ill. 1-2 © 2020 Kolpin Outdoors Inc. REV 00...
- Page 3 5. The Chainsaw Mount can be installed with the door opening facing outside the Ranger bed or inside the Ill. 1-3 Ranger bed, as shown. (See illustrations 1-5 and 1-6). Ill. 1-4 Ill. 1-5 Ill. 1-6 © 2020 Kolpin Outdoors Inc. REV 00...
- Page 4 General bed, into many of the Lock & Ride holes. (See illustrations 1-8, 1-9 and 1-10). Ill. 1-8 Ill. 1-9 Modified bracket Ill. 1-10 © 2020 Kolpin Outdoors Inc. REV 00...
- Page 5 CAUTION: When loosening the clamping door turn knob, the door may swing open causing the saw to fall out. Make sure to hold onto saw when opening the saw clamping door. Ill. 1-15 Ill. 1-14 Ill. 1-13 © 2020 Kolpin Outdoors Inc. REV 00...
- Page 6 Peripheral products such as engines, electric motors, and actuators may carry an original manufacturer’s warranty. Most hardware is general in nature and is easily obtained locally. Be sure to replace with minimum metric class 8.8 specification. © 2020 Kolpin Outdoors Inc. REV 00...
