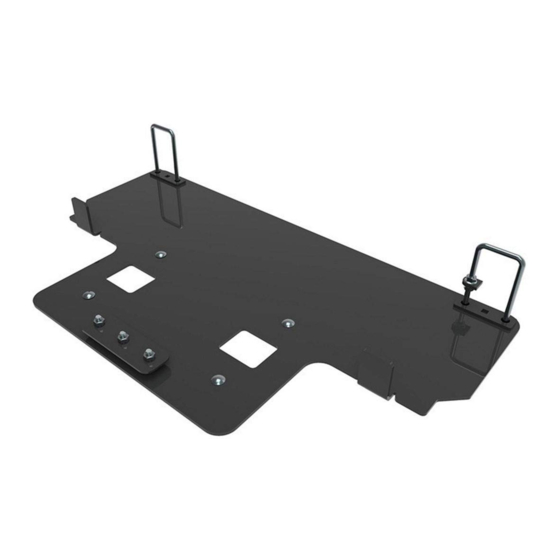

PLOW MOUNT KIT
FOR HONDA PIONEER 500 / 700
P/N 34-1050
ASSEMBLY / OWNERS MANUAL
Application
PLOW PUSH FRAME NO. 34-0000 or 34-0070
Before you begin, please read these instructions and check to be sure all parts and tools are
accounted for. The following instructions contain details required to install and service the contents
of this kit.
© 2019 Kolpin Outdoors Inc.
REV 02
Advertisement
Table of Contents
Related Manuals for Kolpin Outdoors 34-1050
Summary of Contents for Kolpin Outdoors 34-1050
- Page 1 Before you begin, please read these instructions and check to be sure all parts and tools are accounted for. The following instructions contain details required to install and service the contents of this kit. © 2019 Kolpin Outdoors Inc. REV 02...
-
Page 2: Safety Information
BEFORE ADJUSTING BLADE: STOP ATV ENGINE; SET AND LOCK BRAKES; RAISE AND LOCK BLADE LOWER BLADE TO DOWN POSITION WHEN BLADE AND ATV ARE NOT IN USE READ BLADE INSTRUCTION SHEETS AND ATV OWNER’S MANUAL © 2019 Kolpin Outdoors Inc. REV 02... -
Page 3: Kit Contents

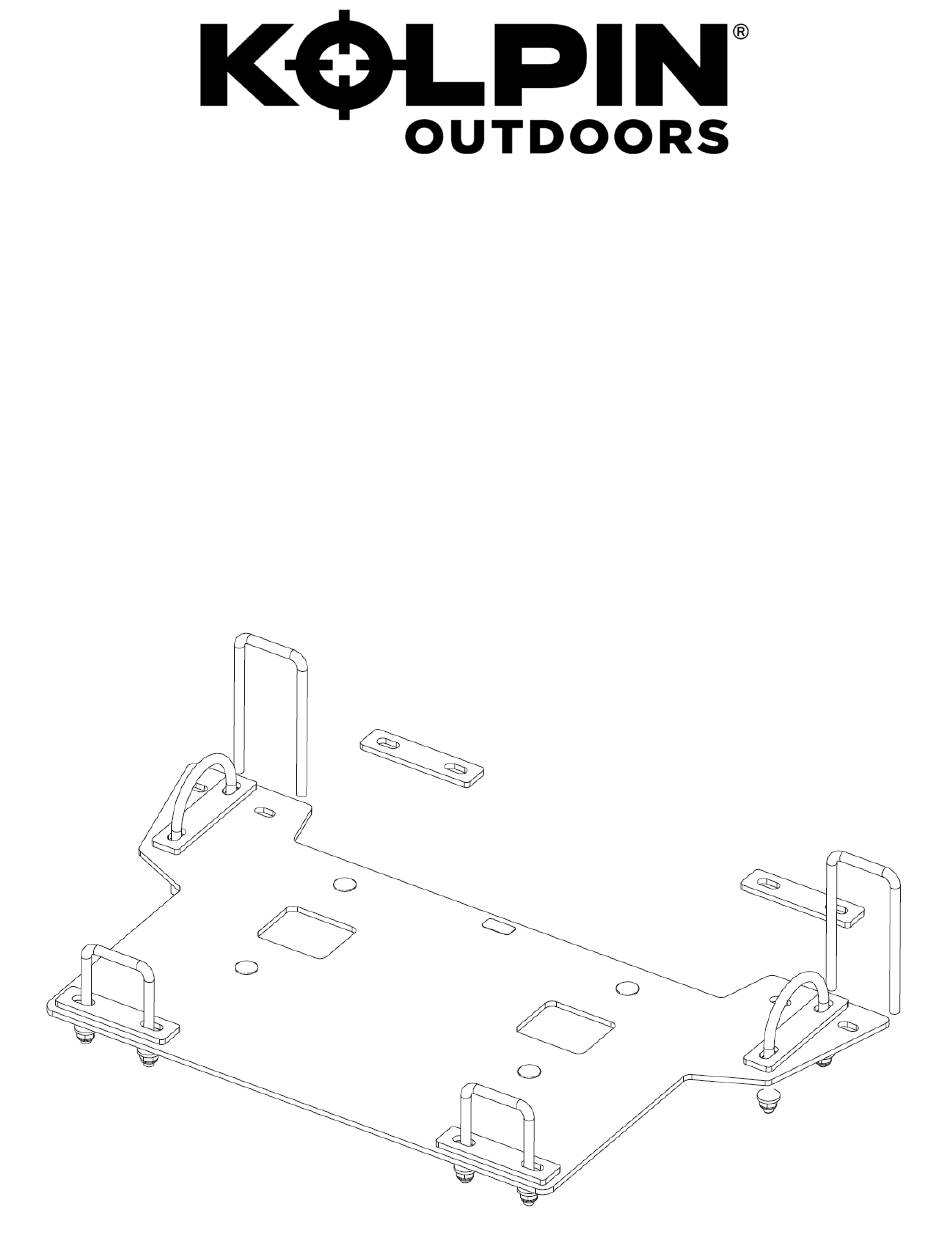

Round U-Bolt, Zinc Plated, M8-1.25 x 2.75” Wide Square U-Bolts, 131mm Square U-Bolts, 93mm Carriage Bolt, Zinc Plated, M8-1.25 x 25mm LG Spacer Bracket for Round U-bolt Flange Locknut, Zinc Plated, M8-1.25 Instruction Guide (not shown) © 2019 Kolpin Outdoors Inc. REV 02... -
Page 4: Before You Begin
Spare kits may contain extra hardware that is used for other mount kits. Extra hardware can be discarded. • U-bolts supplied in spare kits may be longer than original and may need to be cut to size. • © 2019 Kolpin Outdoors Inc. REV 02... - Page 5 (like a Dremel) with a cutting bit will also work. (See Illustration 1-4). Ill. 1-2 FRONT Ill. 1-3 500 u-bolt mounts 700 u-bolt mounts Locate plate here Ill. 1-4 Mark Holes Example shown may not match actual © 2019 Kolpin Outdoors Inc. REV 02...
- Page 6 (like a Dremel) with a cutting bit will also work. (See illustration 1-8). Mark Locations Example shown may not match actual Ill. 1-7 500 u-bolt Ill. 1-8 mounts 700 u-bolt mounts © 2019 Kolpin Outdoors Inc. REV 02...
- Page 7 (See illustrations 1-5, 2-4 and 2-5). Ill. 2-4 (Pioneer 700 only) Ill. 2-3 (Pioneer 500 shown, 700 similar) Ill. 2-5 (Pioneer 700 only) © 2019 Kolpin Outdoors Inc. REV 02...
- Page 8 M8 locknuts (item #4). Tighten to M8 specification. (See illustrations 2-7 and 2-8). Ill. 2-7 (Pioneer 500 only) #4 & #8 #5 & #8 #3 & #8 Ill. 2-8 (Pioneer 700 only) © 2019 Kolpin Outdoors Inc. REV 02...
-
Page 9: One Year Limited Warranty
Most hardware is general in nature and is easily obtained locally. Be sure to replace with minimum metric class 8.8 specification. Kolpin Outdoors, Inc. Telephone: (763)-478-5800 Toll Free: (877)-956-5746 Fax Number: (800)-245-7569 www.kolpin.com Email: customerservice@kolpin.com © 2019 Kolpin Outdoors Inc. REV 02...
