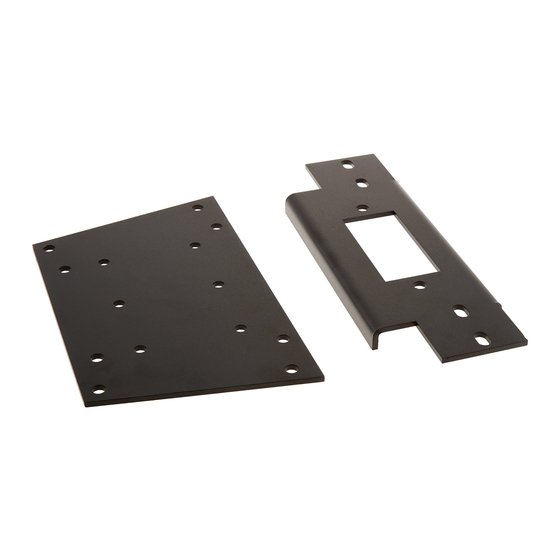

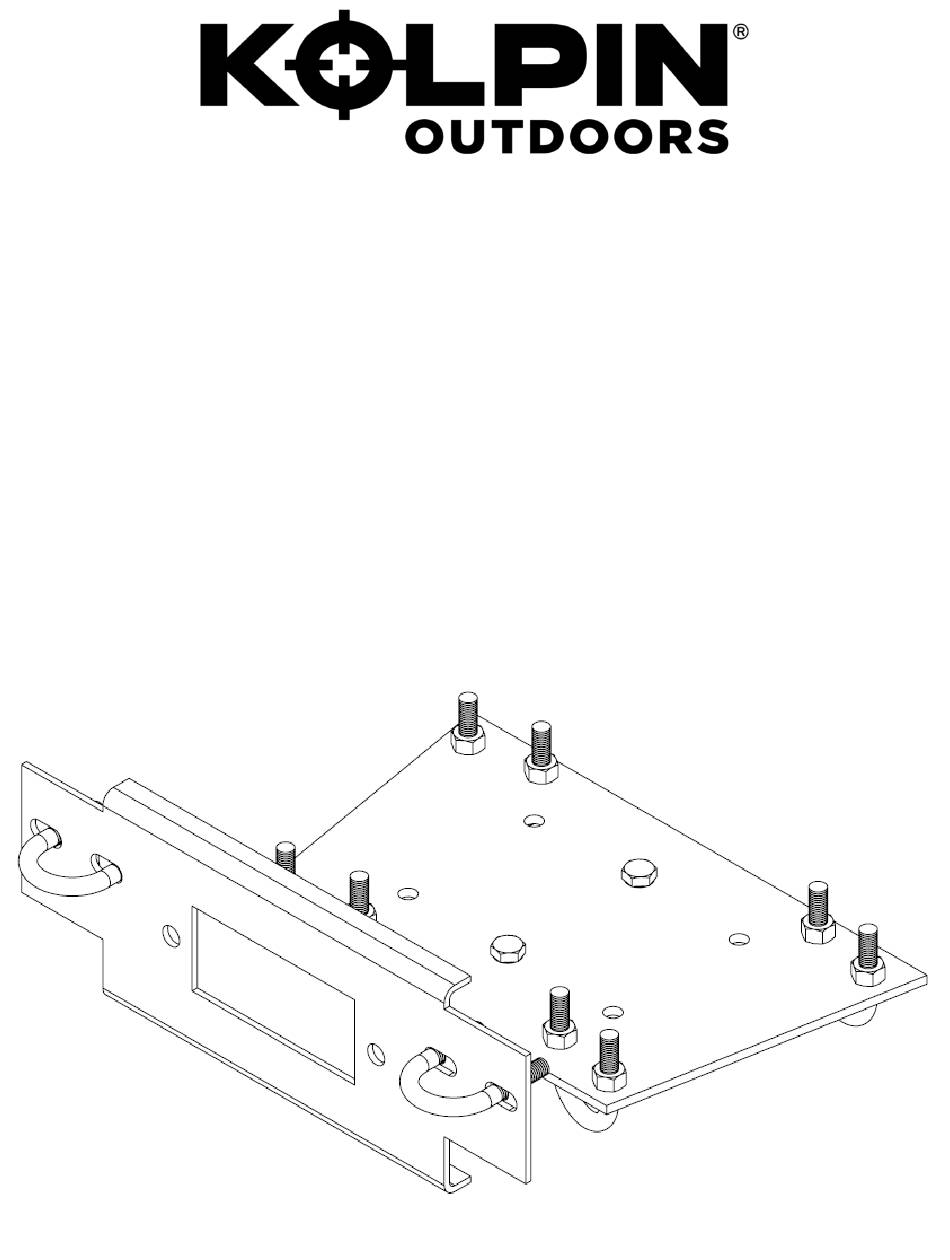

WINCH MOUNT KIT
FOR HONDA RANCHER
P/N 25-1080
ASSEMBLY / OWNERS MANUAL
Application
WINCH KIT NO. 25-9xxx
Before You Begin, please read these instructions and check to be sure all parts and tools are
accounted for. The following instructions contain details required to install and service the contents
of this kit.
© 2019 Kolpin Outdoors Inc.
REV 06
Advertisement
Table of Contents
Related Manuals for Kolpin Outdoors 25-1080
Summary of Contents for Kolpin Outdoors 25-1080
- Page 1 Before you begin, please read these instructions and check to be sure all parts and tools are accounted for. The following instructions contain details required to install and service the contents of this kit. © 2019 Kolpin Outdoors Inc. REV 06...
- Page 2 Do not use your winch or winch mount for towing. Do not shock load the winch, cable or winch mount. Keep fingers, hands and loose clothing away from roller fairlead and winch cable drum when in use. © 2019 Kolpin Outdoors Inc. REV 06...
- Page 3 Roller Fairlead Mount Plate Round U-Bolt, Zinc Plated, M8-1.25 x 30mm x 50mm Locknut, Zinc Plated, M8-1.25 Flat Washer, Zinc Plated, M8 Hex Bolt, Zinc Plated, M8-1.25 x 25mm LG Instruction Guide (not shown) © 2019 Kolpin Outdoors Inc. REV 06...
- Page 4 Using the four bolts PROVIDED WITH THE WARN WINCH, the winch can be mounted to the winch mount plate. Be sure that when the winch is mounted to the ATV, the winch motor is to the RIGHT side of the machine. GO TO INSTRUCTION #1. © 2019 Kolpin Outdoors Inc. REV 06...
- Page 5 10. Secure all harnesses using cable ties (provided with winch kit) to prevent contact with hot components, sharp edges or moving parts. Reconnect black negative (-) cable to battery. © 2019 Kolpin Outdoors Inc. REV 06...
- Page 6 Most hardware is general in nature and is easily obtained locally. Be sure to replace with minimum metric class 8.8 specification. Kolpin Outdoors, Inc. Telephone: (763)-478-5800 Toll Free: (877)-956-5746 Fax Number: (800)-245-7569 www.kolpin.com Email: customerservice@kolpin.com © 2019 Kolpin Outdoors Inc. REV 06...
