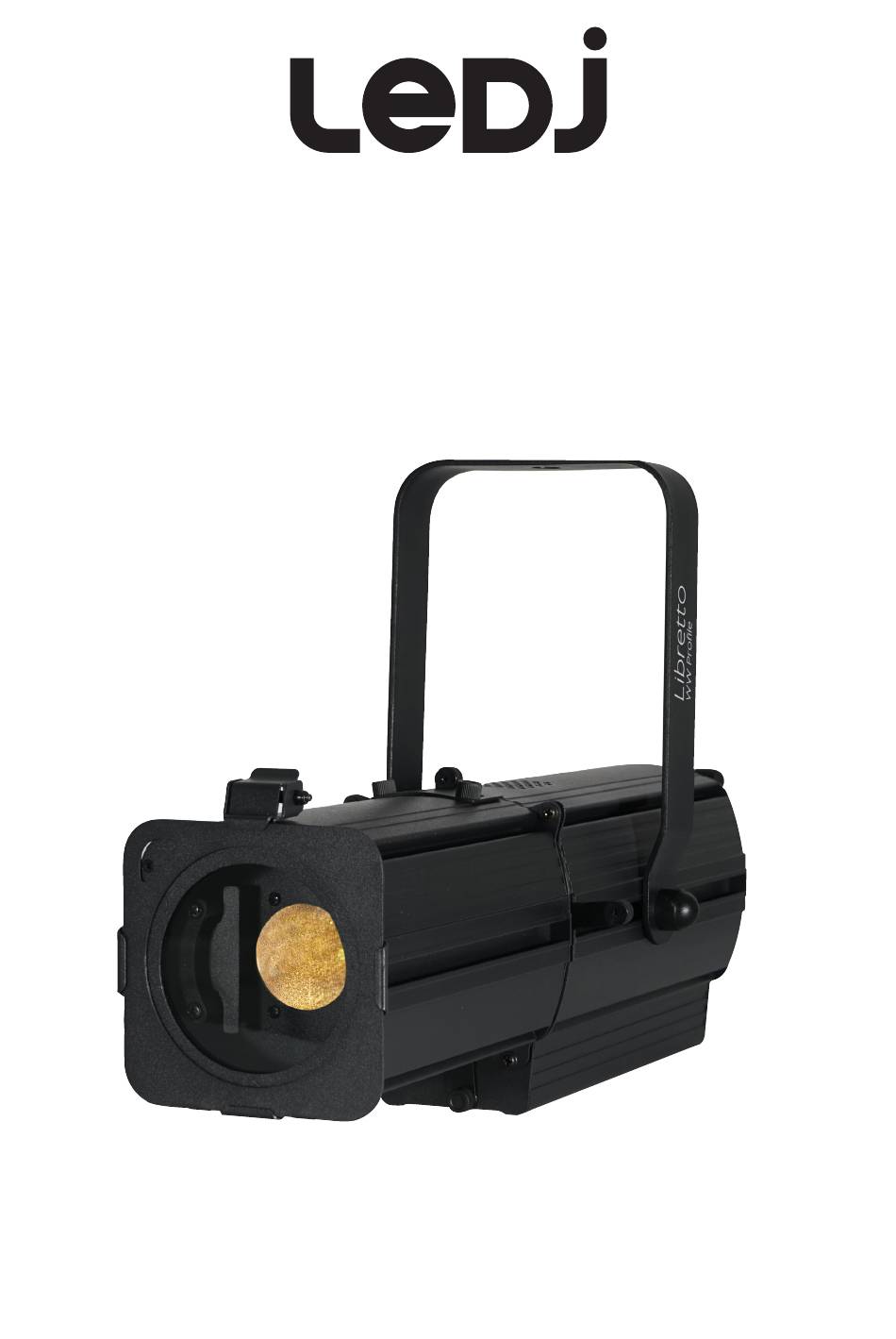

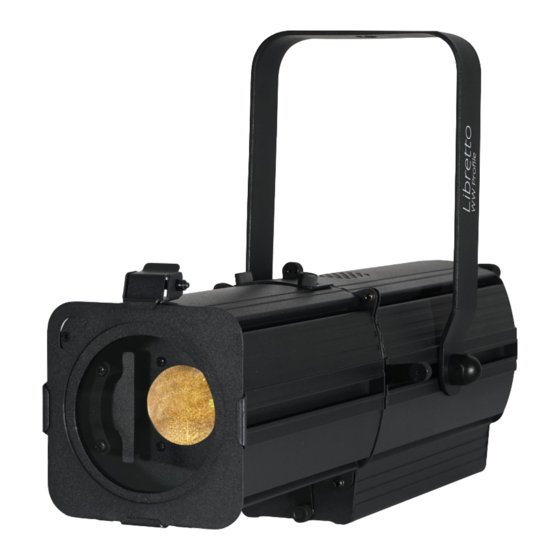

- Page 1 Libretto Mini WW Profile User Manual Order codes: LEDJ600...
-
Page 2: Safety Advice
Incorrect operation may lead to danger e.g: short-circuit, burns and electric shocks etc. Do not endanger your own safety and the safety of others! Incorrect installation or use can cause serious damage to people and/or property. www.prolight.co.uk Libretto Mini WW Profile User Manual... -
Page 3: Included Gobos
Power consumption Fuse T1A 250V 14° 31° Power supply 100-240V,50/60Hz Dimensions 260 x 175 x 405mm Weight 2.8kg Order code LEDJ600 Included gobos: Gobo 1 Gobo 2 Gobo 3 Gobo 4 Gobo 5 www.prolight.co.uk Libretto Mini WW Profile User Manual... -
Page 4: Technical Specifications
Technical specifications 175mm 123mm 405mm 373mm 438mm www.prolight.co.uk Libretto Mini WW Profile User Manual... - Page 5 1 x gel frame & 03 - Rotary Dimmer Control 07 - PowerCON output 11 - Positioning handle 1 x power cable 04 - 5-Pin DMX input 08 - Fuse T1A 250V 12 - Hanging bracket www.prolight.co.uk Libretto Mini WW Profile User Manual...
-
Page 6: Installation
The installation should be checked annually by a qualified person. The Libretto Mini WW Profile can be operated in a number of mounting positions as shown in the diagram above, hanging upside-down from the ceiling or truss, mounting sideways on truss or stood upright on a flat level surface. - Page 7 The OLED control panel situated on the front of the fixture allows the user to access the menu system to adjust the fixtures settings. When the unit has been powered on the display will show “Libretto Mini WW Profile”. The fixture will then return to its home screen.
- Page 8 Dimmer 0-255 (0) Manual Defined Manual Mode Strobe 0-255 (0) Fixture Hour Fixture Run Time Fixture Information Firmware Version CPU-A V 0.0 B 1.0 Fixture Firmware Version Special Functions Factory Settings Default Factory Settings www.prolight.co.uk Libretto Mini WW Profile User Manual...
-
Page 9: Dmx Channel Modes
145-149 Open 150-164 Random Slow Close Fast Open 165-169 Open 170-184 Burst Pulse 185-189 Open 190-204 Random Burst Pulse 205-209 Open 210-224 Slow Close Slow Open 225-229 Open 230-244 Burst Little 245-255 Open www.prolight.co.uk Libretto Mini WW Profile User Manual... -
Page 10: Dmx Setup
3-Pin: CABL10 – 2m CABL11 – 5m CABL12 – 10m 5-Pin: CABL185 – 2m CABL187 – 5m CABL188 – 10m Also remember that DMX cable must be daisy chained and cannot be split. www.prolight.co.uk Libretto Mini WW Profile User Manual... -
Page 11: Line Termination
3-pin XLR (female) Pin 1: GND (screen) Pin 1: GND (screen) Pin 2: Signal (-) Pin 2: Signal (-) Pin 3: Signal (+) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C www.prolight.co.uk Libretto Mini WW Profile User Manual... -
Page 12: Power Linking
Please note: Caution should be used when power linking other fixtures to the Libretto Mini WW Profile as the power consumption of other fixtures will vary. Fixtures fitted with lamps often require 2/3 times more current on startup, these may require their own power source. - Page 13 Libretto Mini WW Profile User Manual...
- Page 14 Libretto Mini WW Profile User Manual...
-
Page 15: Weee Notice
Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk Libretto Mini WW Profile User Manual... - Page 16 Libretto Mini WW Profile User Manual...
