Altronix PacePRM Series Installation Manual page 4

Pace8PRM shown. Pace16PRM is similar, with twice as many channels.
Fig. 3
OUT
Ports
1 4
IN
100m
max.
Powered Switch or NetWay MidSpan
Maximum Length of CAT5e Type vs. Camera Power/PoE Class:
Camera Power/PoE Class
13W/0
4W/1
6.5W/2
13W/3
25W/4
Note: Higher gauge wiring will allow for longer distances.
- 4 -

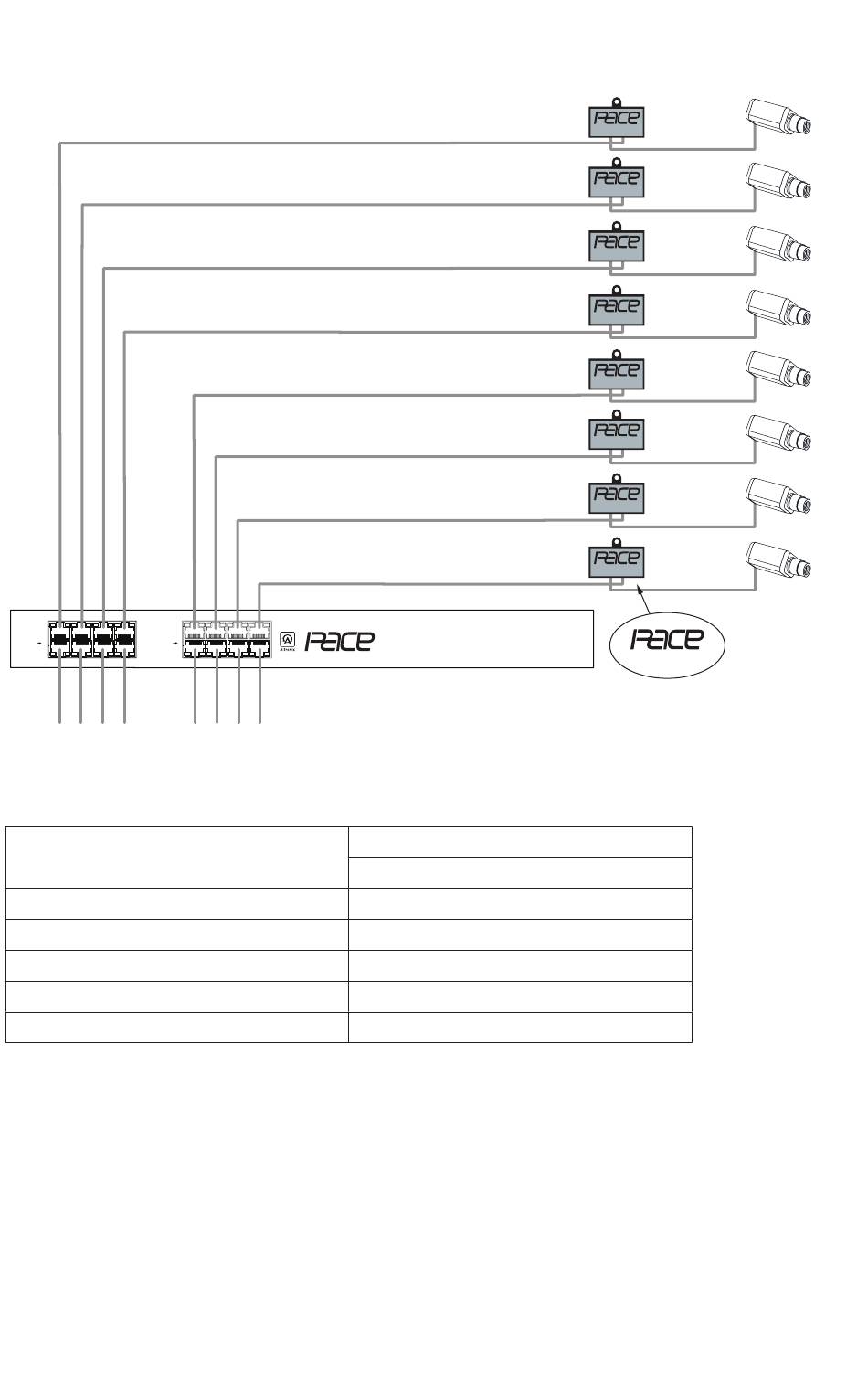

Multiple PoE Camera Connection:
OUT
Ports
5 8
IN
500m max.
500m max.
500m max.
500m max.
500m max.
500m max.
500m max.
500m max.
Pace8PRM - Front Panel
CAT5 or Higher
Max. Length (meters)
500m
500m
500m
500m
423m
PoE compliant
Pace1PTM
100m max.
PoE compliant
Pace1PTM
100m max.
PoE compliant
Pace1PTM
100m max.
PoE compliant
Pace1PTM
100m max.
PoE compliant
Pace1PTM
100m max.
PoE compliant
Pace1PTM
100m max.
PoE compliant
Pace1PTM
100m max.
PoE compliant
Pace1PTM
100m max.
Pace1PTM
Pace4/8/16PRM Installation Guide
PoE Camera
PoE Camera
PoE Camera
PoE Camera
PoE Camera
PoE Camera
PoE Camera
PoE Camera
