Enter Serial No. here._____________________________________
In the event of an enquiry please quote this serial number.
MonoEquip.com

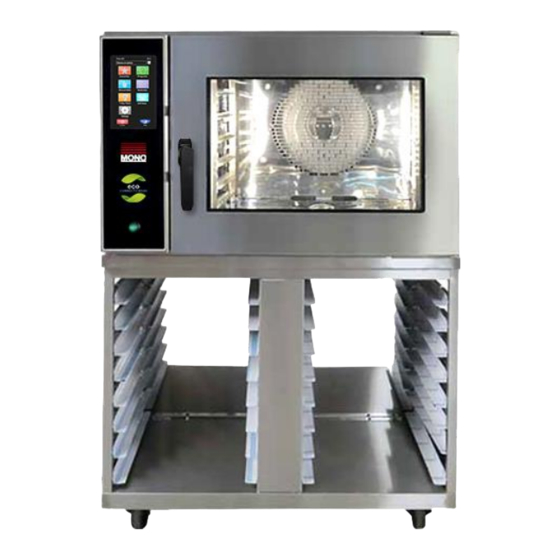

BX EcoConnect+Wash Oven
(Includes the cassette loading version)
Operation and Maintenance Manual
FG1BX-US-MAN-0400, Rev. A22 (April 2022)

Advertisement

loading
Need help?

Need help?

Do you have a question about the BX EcoConnect+Wash and is the answer not in the manual?

Questions and answers

Related Manuals for Mono BX EcoConnect+Wash

Summary of Contents for Mono BX EcoConnect+Wash

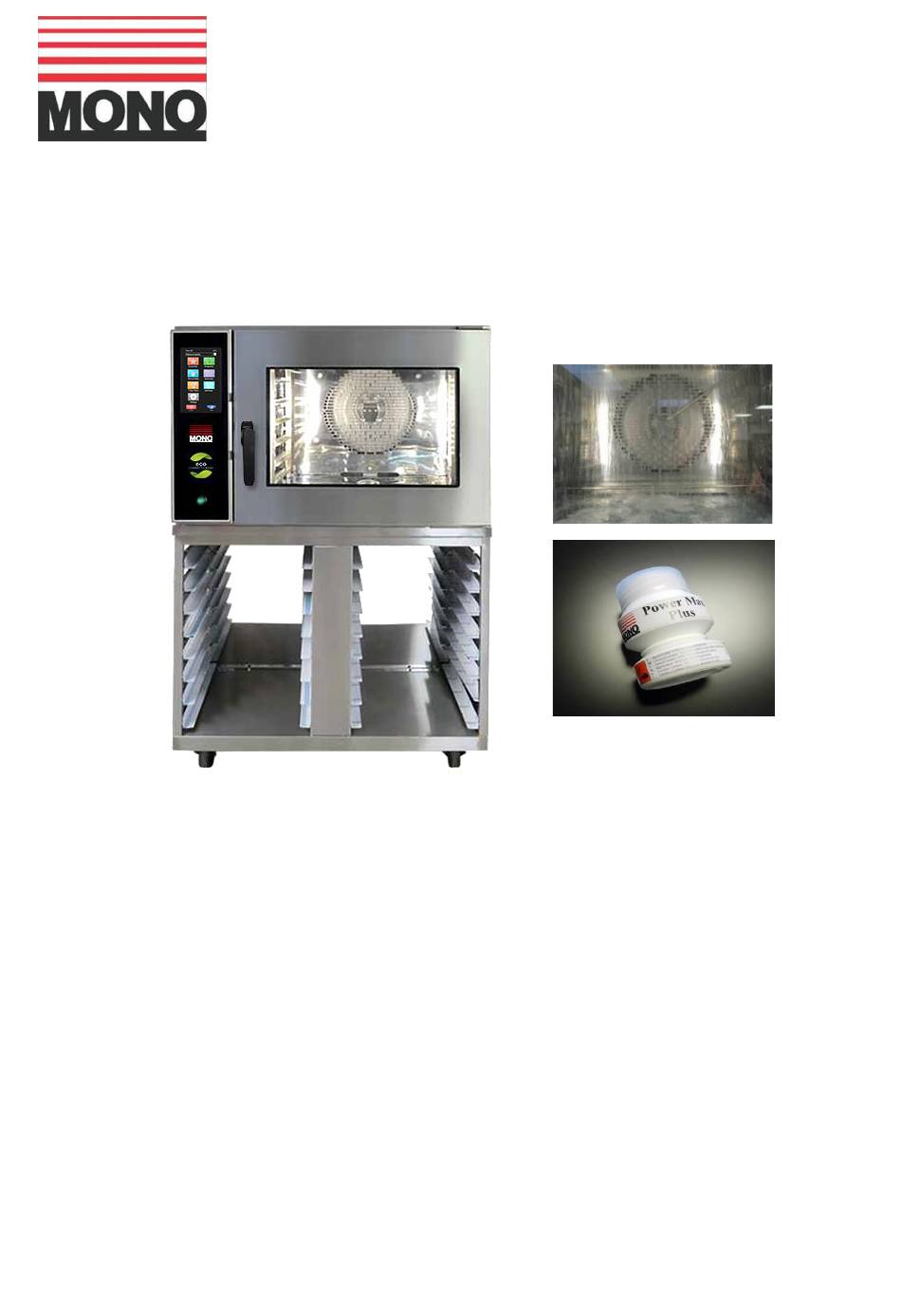

  • Page 1 Enter Serial No. here._____________________________________ In the event of an enquiry please quote this serial number. MonoEquip.com BX EcoConnect+Wash Oven (Includes the cassette loading version) Operation and Maintenance Manual FG1BX-US-MAN-0400, Rev. A22 (April 2022)
  • Page 2 BX EcoConnect+Wash Oven FG1BX-US-MAN-0400, Rev. A22 (April 2022)
  • Page 3 BX EcoConnect+Wash Oven ATTENTION IF OVEN FAILS TO HEAT UP, WHEN FIRST CONNECTED TO A POWER SUPPLY OR DURING USE AT ANYTIME. PRESS RESET BUTTON LOCATED THROUGH THE REAR BACK PANEL. (DO NOT REMOVE BACK PANEL) RESET BUTTON SAFETY SYMBOLS The following safety symbols are used throughout this product documentation.
  • Page 4 ELECTRICAL SAFETY AND ADVICE REGARDING SUPPLEMENTARY ELECTRICAL PROTECTION: Commercial bakeries, kitchens and food service areas are environments where electrical appliances may be located close to liquids, or operate in and around damp conditions, or where restricted movement for installation and service is evident. The installation and periodic inspection of the appliance should only be undertaken by a qualified, skilled and competent electrician, and connected to the correct supply suitable for the load as stipulated by the appliance data label.
  • Page 5 BX EcoConnect+Wash Oven OPENING THE DOUBLE-CATCH DOOR Turn the handle left to release the catch halfway. ▪ This step allows the steam and heat to escape. Turn the handle right to release the door fully. Open the door. Note ▪...
  • Page 6 • Ovens are supplied with LCD TOUCH displays for the user-friendly control panels. PART 9. Touch screen operations • So long as the Mono “Power Max Plus” cleaning cartridge is used, the ovens can be Basic operation connected to a normal domestic drain system without any problems with the 9-1.
  • Page 7 BX EcoConnect+Wash Oven TOUCH SCREEN POWER ON/OFF SWITCH IDENTIFICATION / SERIAL NUMBER PLATE. PLEASE QUOTE THIS NUMBER WITH ANY ENQUIRIES FG1BX-UK-MAN-0400, Rev. A22 (April 2022)
  • Page 8 2. SPECIFICATIONS 10 tray 4 tray stacked HEIGHT 1240 2000 HEIGHT OF OVEN ON BASE 1360 WIDTH 1000 1000 DEPTH – DOOR CLOSED DEPTH – DOOR OPEN 1620 1620 TRAY SIZE 600mm x 400mm POWER (uk versions) 4/5 TRAY OVENS - 415 volts. 3 PHASE, + NEUTRAL + EARTH, 50HZ 11amps per phase, total power 7.5kW (element = 7kW 240v stainless steel) 10 TRAY OVENS - 415 volts.
  • Page 9 The following points should be observed and followed at all times. The oven is designed for baking of bread, confectionery and savoury products only. DO NOT use it for any other items without first consulting with MONO. Failure to adhere to the operation, cleaning and maintenance instructions detailed in this manual could affect the warranty of this oven.
  • Page 10 4. INSTALLATION POWER (uk versions) 4/5 TRAY OVENS - 415 volts. 3 PHASE, + NEUTRAL + EARTH, 50HZ 11amps per phase, total power 7.5kW (element = 7kW 240v stainless steel) 10 TRAY OVENS - 415 volts. 3 PHASE, + NEUTRAL + EARTH, 50HZ 21amps per phase, total power 15kW (element = 7kW 240v stainless steel x2) POWER (export versions)
  • Page 11 A 50mm gap is recommended at the sides and rear of this oven and 250mm above. Chimneys and evacuation ducts fitted above mono ovens should be insulated to stop condensate flowing back into the oven.
  • Page 12 40 C (115 F) will not be covered by the component manufacturers guarantee or the MONO product warranty. NOTE • Room should be allowed for the door to open fully to allow easy loading and unloading of product without people coming in contact with hot surfaces.
  • Page 13 BX EcoConnect+Wash Oven 5. ISOLATION ELECTRICITY SUPPLY To stop the oven in an emergency. Switch off electricity supply at the wall isolator WATER SUPPLY The water supply should be shut off at the nearest shut-off point FG1BX-UK-MAN-0400, Rev. A22 (April 2022)
  • Page 14 A 50mm gap is required at the sides and rear of this oven and 250mm above. Run the clean cycle if required. (Be aware that this takes some time to complete). • Chimneys and evacuation ducts fitted above mono ovens should be insulated to SEE PAGE 27 stop condensate flowing back into the oven.
  • Page 15 BX EcoConnect+Wash Oven 8. OPERATION LOADING THE OVEN IF CASSETTE SYSTEM IS FITTED Slide full trays onto runners in the cassette holding rack at positions required. TOP OVEN CASSETTE 4 TRAYS LOWER OVEN CASSETTE 10 TRAYS When the oven is up to temperature and ready to bake, open the door(s) and push loaded rack up to oven using the central locator on the bottom front edge to give the correct positioning.
  • Page 16 UNLOADING THE OVEN When the bake is over, stop the oven and open the door required, the rack can now be placed back into position. Hold the rack in place and using the push-pull tool provided hooked onto the bar on the cassette;...
  • Page 17 BX EcoConnect+Wash Oven 9. TOUCHSCREEN OPERATIONS Operations are performed by touching an area of the screen, bringing up the next information panel or activating a function. ▪ Caution! Do not use excessive force to operate the touchscreen panel Figure 1:...
  • Page 18 BASIC OPERATION ALL OPERATIONS ARE ACTIVATED BY TOUCHING AREAS ON THE SCREEN. DO NOT USE EXCESSIVE FORCE. (THE PRESSURE REQUIRED TO OPERATE THE PANEL CAN BE ALTERED IN THE SETTINGS SECTION) To open the door touch the lock icon on the screen and allow the door to unlock then pull the door open. To close the door, just push shut and the door lock will take over and lock the door.
  • Page 19 BX EcoConnect+Wash Oven 9-1. BAKING USING “FAVOURITES”MENU TOUCH TO OPEN THE FAVOURITES SELECT SCREEN OPTION SCREEN TOUCH THE NAME OR NUMBER OF THE PRODUCT REQUIRED SELECT SCREEN TOUCH THE “FULL LOAD” OR “HALF LOAD” AS REQUIRED LOAD SCREEN TO RETURN TO THE PREVIOUS SCREEN TOUCH THE “BACK”...
  • Page 20 IF THE OVEN IS NOT UP TO TEMPERATURE IT WILL SHOW THE HEATING SCREEN. WAIT FOR THE OVEN TO REACH HEATING SCREEN TEMPERATURE IF THE OVEN IS TOO HOT FOR THE TEMPERATURE CHOSEN, THE SCREEN WILL TELL YOU TO OPEN THE DOOR TO AID COOLING.
  • Page 21 BX EcoConnect+Wash Oven AT THE END OF THE BAKE TIME A SOUNDER WILL BE HEARD AND “BAKE OVER” WILL FLASH. TOUCH “STOP” AND OPEN THE BAKE OVER DOOR TO REMOVE THE PRODUCT. SCREEN TO KEEP THE OVEN BAKING FOR EXTRA MINUTES, THE “+ 2 MIN”...
  • Page 22 9-2. BAKING USING “MANUAL” MENU PRESS TO OPEN OPTION SCREEN MANUAL BAKE SCREEN MANUAL BAKE SCREEN SET BAKE TEMPERATURE TOUCH TEMPERATURE ON THE SCREEN TO ACTIVATE THE KEYBOARD SCREEN. KEY IN REQUIRED TEMPERATURE AND TOUCH “OK” SET BAKE TIME TOUCH TIME ON THE SCREEN TO ACTIVATE THE KEYBOARD SCREEN.
  • Page 23 BX EcoConnect+Wash Oven USE STEAM (IF REQUIRED) TOUCH AND HOLD FOR THE AMOUNT MANUAL BAKE OF TIME STEAM IS REQUIRED. SCREEN 2 (THIS CAN BE USED BEFORE OR DURING THE BAKE) USE DAMPER (IF REQUIRED) TOUCH TO OPEN THE DAMPER.
  • Page 24 SAVE “MANUAL” PROGRAM, IF REQUIRED NOTE: MANUAL PROGRAMS CAN ONLY BE SAVED IF NO TIME WAS ENTERED AT THE BEGINNING OF THE BAKE SAVE SETTINGS IF NO TIME WAS ENTERED AT THE START OF THE BAKE AND STOP IS TOUCHED, “SAVE”...
  • Page 25 BX EcoConnect+Wash Oven 9-3. BAKING USING “PROGRAMMES” TOUCH TO OPEN “CATEGORY” or “PROGRAM CHOICE” SCREEN NOTE: OPTION SCREEN THERE ARE TWO VERSIONS OF THE FIRMWARE. THE OVEN CAN BE FACTORY SET TO SHOW EITHER: 1. A PICTORIAL VERSION GIVING CHOICES OF PRODUCT CATERGORIES.
  • Page 26 IF THE OVEN IS NOT UP TO TEMPERATURE IT WILL SHOW THE HEATING SCREEN. WAIT FOR THE OVEN TO REACH HEATING SCREEN TEMPERATURE IF THE OVEN IS TOO HOT FOR THE TEMPERATURE CHOSEN, THE SCREEN WILL TELL YOU TO OPEN THE DOOR TO AID COOLING.
  • Page 27 BX EcoConnect+Wash Oven AT THE END OF THE BAKE TIME A SOUNDER WILL BE HEARD AND “BAKE OVER” WILL FLASH. TOUCH “STOP” AND OPEN THE BAKE OVER DOOR TO REMOVE THE PRODUCT. SCREEN TO KEEP THE OVEN BAKING FOR EXTRA MINUTES, THE “+ 2 MIN”...
  • Page 28 9-4. BAKING USING “MULTI-BAKE” MENU Multi-bake allows the setting of up to four bake timers so that up to four different products can be baked in the same load. (Products must all use the same temperature). TOUCH TO OPEN “MULTI-BAKE” SCREEN OPTION SCREEN TEMPERATURE...
  • Page 29 BX EcoConnect+Wash Oven TOUCH THE START BUTTON WHEN REQUIRED AND THE TIMER WILL COUNT DOWN. MULTI-BAKE SETUP SCREEN SHOWING FOUR TIMERS SET MULTI-BAKE SETUP SCREEN WITH FOUR TIMERS RUNNING TOUCH TO STOP A TIMER AT THE END OF A SET TIME A BUZZER SOUNDS.
  • Page 30 9-5. USING THE WASH CYCLE THE WASH OPERATION Do insert anything aluminium when using the wash cycle. The cleaners will damage the item and possibly clog up the wash system 1. When the wash cycle is required, the oven cools to the wash cycle temperature (80 degrees) as part of the chosen program –...
  • Page 31 BX EcoConnect+Wash Oven Do not insert anything aluminium when using the wash cycle. The cleaners will damage the item and possibly clog up the wash system NOTE When the wash cycle is required, the oven cools to the wash cycle temperature (80 degrees) as part of the chosen program –...
  • Page 32 SAFETY INFORMATION Care should be taken when handling cleaning cartridges. Do not break open or use damaged cleaning cartridges. Store cleaning cartridges in original packaging MONO “Power Max Plus” cleaning cartridge. Re-order number A900-30-030 Unscrew and remove the protection cap.
  • Page 33 BX EcoConnect+Wash Oven 9-6. CREATING A PROGRAM TOUCH TO OPEN “CATEGORY” SCREEN OPTION SCREEN TOUCH THE TYPE OF PRODUCT WANTED AND THE “SELECT” SCREEN OPENS CATEGORY SCREEN SELECT SCREEN TOUCH “i” BUTTON NEXT TO THE BLANK PROGRAM TO OPEN TOUCH THE DOWN...
  • Page 34 INFORMATION SCREEN TOUCH OPTION TO GO TO PASS CODE SCREEN PASS CODE SCREEN ENTER PASS CODE AND THEN TOUCH OK. (DEFAULT CODE = 123456)
  • Page 35 BX EcoConnect+Wash Oven EDIT PRODUCT TOUCH “CHANGE PRODUCT” OPTION SCREEN TOUCH EACH ITEM (E.G., TEMPERATURE) AND THEN CHANGE THE VALUE BY USING THE UP/DOWN ARROWS OR USE THE KEYPAD. WHEN SATISFIED WITH THE SETTINGS TOUCH “” AND YOU WILL BE ASKED IF YOU WANT TO SAVE THE EDITS.
  • Page 36 EDIT TRAY LAYOUT OPTION SCREEN TOUCH “CHANGE TRAY LAYOUT” TOUCH EACH ITEM AND CHANGE THE VALUE BY USING THE UP/DOWN ARROWS OR USE THE KEYPAD. WHEN SATISFIED WITH THE SETTINGS TOUCH “BACK” AND YOU WILL BE ASKED IF YOU WANT TO SAVE THE EDITS. TOUCH “SAVE”...
  • Page 37 BX EcoConnect+Wash Oven EDIT PRODUCT TITLE OPTION SCREEN TOUCH “EDIT PRODUCT TITLE” TYPE PRODUCT TITLE. TOUCH “SAVE” AND TITLE WILL BE SAVED FG1BX-UK-MAN-0400, Rev. A22 (April 2022)
  • Page 38 ADD A PRODUCT TO THE FAVOURITES LIST TOUCH THE TYPE OF PRODUCT WANTED AND THE “SELECT” SCREEN OPENS CATEGORY SCREEN TOUCH THE “i” SELECT SCREEN (INFORMATION) BUTTON NEXT TO THE PRODUCT YOU WANT AS A FAVOURITE. THIS OPENS THE OPTION SCREEN.
  • Page 39 BX EcoConnect+Wash Oven 9-7. SETTING 7–DAY TIMER TOUCH TO OPEN “7-DAY TIMER” SET UP SCREEN OPTION SCREEN ENTER TITLE (Use keyboard) CHOOSE DAY SET “ON” TIME. SET “OFF” TIME Touch hours and adjust then Touch hours and touch minutes and adjust...
  • Page 40 9-8. SETTINGS OPTION SCREEN TOUCH TO OPEN THE “SETTINGS” SCREEN ENTER THE PASSWORD THAT CORRESPONDS WITH THE SETTINGS REQUIRED (SEE NEXT PAGE OR AUTHORISED USER) TOUCH “GENERAL SETTINGS” CHOOSE THE SETTING TO ALTER ON PAGES 1-3 TOUCH “SAVE”...
  • Page 41 If it is noticed that the steaming or cleaning operation has deteriorated, perhaps due to hard water scaling, please contact your oven supplier STEM MAINTENANCE BULB REPLACEMENT In the event of a light failure, please contact Mono service department as there are no customer replaceable parts FG1BX-UK-MAN-0400, Rev. A22 (April 2022)
  • Page 42 If a fault arises, please do not hesitate to contact the Customer Service Department, quoting the machine serial number. This can be found on the silver information plate of the machine and on the front cover of this manual. MACHINE SERIAL NUMBER spares@monoequip.com email: +44(0)1792 564039 Mono Spares TEL.:...
  • Page 43 BX EcoConnect+Wash Oven ELECTRICAL FG1BX-UK-MAN-0400, Rev. A22 (April 2022)
  • Page 45 BX EcoConnect+Wash Oven FG1BX-UK-MAN-0400, Rev. A22 (April 2022)
  • Page 47 BX EcoConnect+Wash Oven FG1BX-UK-MAN-0400, Rev. A22 (April 2022)
  • Page 49 BX EcoConnect+Wash Oven FG1BX-UK-MAN-0400, Rev. A22 (April 2022)
  • Page 51 BX EcoConnect+Wash Oven FG1BX-UK-MAN-0400, Rev. A22 (April 2022)
  • Page 53 BX EcoConnect+Wash Oven FG1BX-UK-MAN-0400, Rev. A22 (April 2022)
  • Page 54 PASSWORDS DEPENDING ON WHICH PASSWORD IS USED THE FOLLOWING SETTINGS CAN BE ACCESSED: • Settings menu 3142 General Settings – 2 pages Diagnostics – 2 pages 123456 Edit product (Default, user configurable) • Advanced settings menu 777460 654321 High level – oven settings (3 screens) (Default, user configurable) System •...
  • Page 55 BX EcoConnect+Wash Oven (Intentional Blank Page) FG1BX-UK-MAN-0400, Rev. A22 (April 2022)
  • Page 57 BX EcoConnect+Wash Oven DESIGNED AND MANUFACTURED IN WALES BY: MONO EQUIPMENT Queensway Swansea West Industrial Estate Swansea. SA5 4EB UK Web site: www.monoequip.com Tel. +44(0)1792 561234 Fax. 01792 561016 OVEN DISPOSAL CARE SHOULD BE TAKEN WHEN THE MACHINE COMES TO THE END OF ITS WORKING LIFE. ALL PARTS SHOULD BE DISPOSED OF IN THE APPROPRIATE PLACE, EITHER BY RECYCLING OR OTHER MEANS OF DISPOSAL THAT COMPLIES WITH LOCAL REGULATIONS.
