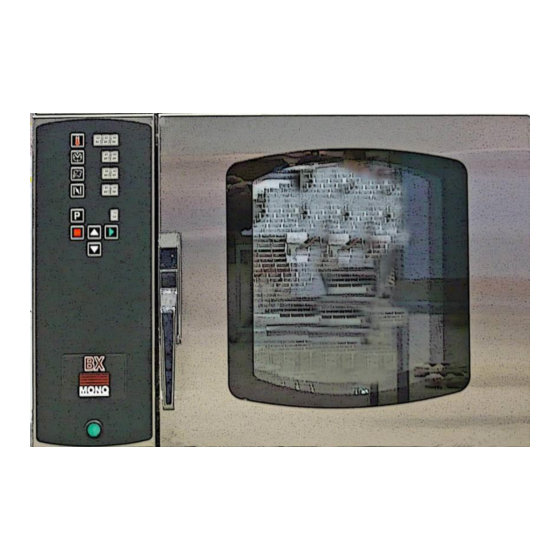

Mono BX 149 Manual

Set up and operation of oven and condenser unit if fitted, classic
Hide thumbs
Table of Contents

Advertisement

Quick Links

www.monoequip.com
SET UP AND OPERATION OF OVEN
AND CONDENSER UNIT (IF FITTED)
Failure to adhere to the operation, cleaning and maintenance instructions detailed in this
OVEN SERIAL NO.
OVEN CODE 149
CONDENSER SERIAL No. _________________________(IF FITTED)
In the event of an enquiry please quote these numbers.
Bx OVEN
CLASSIC
manual could affect the warranty of this oven.
150
153
156
158
159
180

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BX 149 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mono BX 149

Summary of Contents for Mono BX 149

  • Page 1 OVEN SERIAL NO. OVEN CODE 149 CONDENSER SERIAL No. _________________________(IF FITTED) In the event of an enquiry please quote these numbers. www.monoequip.com Bx OVEN SET UP AND OPERATION OF OVEN AND CONDENSER UNIT (IF FITTED) CLASSIC Failure to adhere to the operation, cleaning and maintenance instructions detailed in this manual could affect the warranty of this oven.
  • Page 2 Bx oven CLASSIC HAL range inc condenser 10-04-17 RevB17...
  • Page 3 ATTENTION IF OVEN FAILS TO HEAT UP, WHEN FIRST CONNECTED TO A POWER SUPPLY OR DURING USE AT ANYTIME, PRESS RESET BUTTON(S) LOCATED THROUGH THE REAR BACK PANEL. (DO NOT REMOVE BACK PANEL) 4 TRAY OVEN HOLE LOCATION HOLE CAN BE AT POSITION 1 OR POSITION 2 DEPENDING ON OVEN 10 TRAY OVEN HOLE LOCATION...

  • Page 4: Table Of Contents

    CONTENTS PAGE PART 1.0 Introduction PART 2.0 Specifications PART 3.0 Safety PART 4.0 Installation PART 5.0 Isolation PART 6.0 Daily / Weekly Cleaning PART 7.0 Ideal Operating Conditions PART 8.0 CLASSIC Operation Running preset programs PART 9.0 Programming Creating and changing program values PART 10.0 Maintenance PART 11.0...

  • Page 5: Introduction

    1.0 INTRODUCTION  A combination of clean industrial design and the latest technology, the MONO BX oven range is designed specifically to take the baking Industry’s standard trays.  The ovens in the range are of stainless steel construction and some have removable tray racks to aid cleaning.

  • Page 6: Specifications

    2.0 SPECIFICATIONS Bx oven CLASSIC HAL range inc condenser 10-04-17 RevB17...

  • Page 7: Safety

    The oven is designed for baking of bread, confectionery and savoury products only. DO NOT use it for any other items without consulting with MONO. The oven must be allowed to cool before any form of cleaning is started.

  • Page 8: Installation

    A 50mm gap is required at the sides and rear of this oven. Chimneys and evacuation ducts, fitted above mono ovens should be insulated. If an oven with steam has been chosen, connect to a suitable water supply making sure that the pipes are flushed out to remove all foreign bodies i.e.

  • Page 9: Isolation

    5.0 ISOLATION ELECTRICITY SUPPLY To stop the oven in an emergency, switch off electricity at the wall isolator WATER SUPPLY For stacked ovens, the water supply can be shut off by closing the shut-off valves (See diagram) For non-stacked ovens the water supply should be shut off at the nearest shut-off point VIEW OF REAR CONNECTIONS BOTTOM OVEN...

  • Page 10: Cleaning Instructions

    6.0 CLEANING INSTRUCTIONS DAILY NOTE: BEFORE CLEANING, ISOLATE OVEN FROM MAINS SUPPLY AND ALLOW TO COOL.  The equipment is to be cleaned daily using approved chloride–free cleaning fluid  Sweep any debris (after it has been allowed to cool) onto oven removable trays and remove for cleaning.
  • Page 11 Ovens using 60cm x 40cm trays ( FG156 2 tray / FG158 4 tray) Open the oven door and remove internal racking from sides of oven. (lift and unlatch racking). This allows access to hidden areas in the oven, which can be wiped with a damp cloth. Wipe down, and clean racking with a damp cloth and replace.

  • Page 12: Ideal Operating Conditions

    A 50mm gap is required at the sides and rear of this oven.  Chimneys and evacuation ducts, fitted above mono ovens should be insulated AMBIENT WORKING TEMPERATURES.
  • Page 13 Bx CLASSIC Operating Instructions Section 8 Bx oven CLASSIC HAL range inc condenser 10-04-17 RevB17...

  • Page 14: Running Preset Programs

    BX‘CLASSIC’ OPERATING INSTRUCTIONS RUNNING PRE-SET PROGRAMS REFER TO CONTROL PANEL (SEE RIGHT) Switch on power by pressing green button (1). Select required program using UP/ DOWN scroll keys (2). Press START key (3) to begin bake cycle. • Oven will heat to set temperature and display will flash actual temperature.

  • Page 15: Creating And Changing Program Values

    BX 'CLASSIC' PROGRAMMING INSTRUCTIONS CREATING PROGRAMS/CHANGING PROGRAM VALUES. Pre-set values for bake temperature; bake time, steam and (optional) damper may be modified at any point. CREATING PROGRAMS/CHANGING PROGRAM VALUES CREATING/CHANGING PROGRAM VALUES 1.Switch on power by pressing green button (1). 2.Use the UP/DOWN arrow keys (2) to select a program to change 3.Press the key associated with the change required...
  • Page 16 SETTING PREBAKE TEMPERATURE (if enabled) Press (9). (one dot flashes) Press (9) and hold for 3 seconds (3 dots flash). Use up/down arrow keys (2) to set temperature. Press (9) to save Pre-set values for bake temperature; bake time, steam, sleep mode etc. may be modified at any point.
  • Page 17 TEMPERATURE SET POINT/CHAMBER DISPLAY Hold the P key (5), together with the STOP key (4) for 5 seconds. or if already done for above setting, continue by pressing start (3) - “dsp” is displayed press (8) to change between “sp” = set point temperature displayed or “ct”...

  • Page 18: Maintenance

    10.0 MAINTENANCE  Check for frayed or bare cables. The machine must not be used if frayed or bare cables are visible.  Follow cleaning instructions. 11.0 STEAM SYSTEM MAINTENANCE  If it is noticed that the steaming operation has deteriorated, perhaps due to hard water scaling, please contact your oven supplier 12.0 STEAM SYSTEM MAINTENANCE 12.0 BULB REPLACEMENT...

  • Page 19: (If Fitted)

    CONDENSER UNIT (IF FITTED) All versions should be part of a regular cleaning schedule. Water should be drained and parts cleaned with an antibacterial wash. Bx oven CLASSIC HAL range inc condenser 10-04-17 RevB17...

  • Page 20: Electrical Information

    INDEX INTRODUCTION PAGE 19 DIMENSIONS PAGE 20 SPECIFICATIONS PAGE 21 INSTALLATION PAGE 22 SAFETY PAGE 24 OPERATION PAGE 25 SPARES PAGE 26 OTHER VERSIONS THAT MAY BE FITTED PAGE 29 ELECTRICAL INFORMATION SEE ELECTRICS MANUAL Bx oven CLASSIC HAL range inc condenser 10-04-17 RevB17...
  • Page 21 INTRODUCTION The condenser can be fitted to any Bx oven or stacked Bx ovens as required. With thermostatic control it can be adjusted to operate in most ambiant temperatures. Simple water conection (washing machine type fitting) and a hose to drain are all that is required to operate efficiently.
  • Page 22 DIMENSIONS Bx oven CLASSIC HAL range inc condenser 10-04-17 RevB17...
  • Page 23 SPECIFICATIONS POWER 230volts, 1 phase, 50hz, 21watts Wired to oven electrical panel. WATER Washing machine type connection to normal water supply via steam water connection to oven(s). NOISE Less than 85dB Approx 18kg (not including water) WEIGHT Bx oven CLASSIC HAL range inc condenser 10-04-17 RevB17...
  • Page 24 INSTALLATION BEFORE INSTALLING ENSURE THAT ALL POWER IS DISCONNECTED AND THE OVEN IS COOL 1. Before fitting the main condenser assembly, insert blanking plug (1) into lower hole that will not be required for the hand of oven being used. 2.
  • Page 25 3. Place condenser in position ensuring that the tube (2) passes through the hole in the top of the oven and worm drive clip (4), then over spigot of the damper assembly on the oven. 4. Tighten worm-drive clip (4). 5.
  • Page 26 The condenser must be operated as described in this manual. Only MONO spare parts should be used on this condenser. The construction of the condenser must not be changed. Bx oven CLASSIC HAL range inc condenser 10-04-17 RevB17...
  • Page 27 OPERATION SETTING POSITION Ensure that the water is connected correctly and the oven power is on. The thermostat control should be adjusted to the required position. It is suggested that as a starting point the thermostat is set at 60. It can then be adjusted down if the performance drops or adjusted up if it is found that the water is being replaced too often.
  • Page 28 CONDENSER SPARES INFORMATION FOR ENGINEERS USE ONLY. DO NOT ATTEMPT ANY ALTERATIONS. IF IN DOUBT, CONTACT MONO EQUIPMENT FOR ADVICE Bx oven CLASSIC HAL range inc condenser 10-04-17 RevB17...
  • Page 29 CONDENSER UNIT MAIN PARTS Bx oven CLASSIC HAL range inc condenser 10-04-17 RevB17...
  • Page 30 ITEM PART No. DESCRIPTION 150-07-01300 INLET WATER CONTROL UNIT 150-19-01700 TOP SHEET 150-19-02300 COVER PLATE 150-19-02600 BASE TRAY 150-19-02700 WATER TANK 150-25-07100 JUNCTION BOX A900-01-196 WORM DRIVE CLIP A900-01-271 WORM DRIVE CLIP A900-23-004 DRAIN TUBE (2 METRES) A900-23-027 FLEXIBLE TUBE A900-27-187 PLUG INSERT REDUCER ¼”BSP MALE X 3/8”...
  • Page 31 OTHER VERSIONS THAT MAY BE FITTED The following evaporation design versions could be fitted to your oven. They only require to be plugged in to the socket found to the rear of the oven. This powers the fan and evaporation pad. No drain is required.
  • Page 32 Bx oven CLASSIC HAL range inc condenser 10-04-17 RevB17...
  • Page 33 Bx oven CLASSIC HAL range inc condenser 10-04-17 RevB17...
  • Page 34 Bx oven CLASSIC HAL range inc condenser 10-04-17 RevB17...
  • Page 35 Bx oven CLASSIC HAL range inc condenser 10-04-17 RevB17...
  • Page 36 Bx oven CLASSIC HAL range inc condenser 10-04-17 RevB17...
  • Page 37 Bx oven CLASSIC HAL range inc condenser 10-04-17 RevB17...
  • Page 38 If a fault arises, please do not hesitate to contact the Customer Service Department, quoting the machine serial number on the silver information plate of the machine and on the front cover of this manual MONO Queensway Swansea West Industrial Estate Swansea.

This manual is also suitable for:

Bx 153Bx 150Bx 156Bx 160Bx 159
