  • Page 1 Enter Serial No. here.____________________________ In the event of an enquiry please quote this serial number. OVEN TYPE 153 (4 tray) 138 (7 tray) www.monoequip.com Store this document safely and ensure it is available at all times. Non-availability may affect the service or repair of your machine.
  • Page 2 GREGGS NO STEAM, LED LIGHTS 30/06/16 Rev.B16...
  • Page 3 ATTENTION IF OVEN FAILS TO HEAT UP, WHEN FIRST CONNECTED TO A POWER SUPPLY OR DURING USE AT ANYTIME, PRESS RESET BUTTON(S) LOCATED THROUGH THE REAR BACK PANEL. (DO NOT REMOVE BACK PANEL) RESET HOLE LOCATION REAR VIEW OF OVEN IF THIS FAILS TO CORRECT THE SITUATION, PLEASE CONTACT YOUR SUPPLIER GREGGS NO STEAM, LED LIGHTS...

  • Page 4: Table Of Contents

    CONTENTS PAGE PART 1.0 Introduction PART 2.0 Specifications 4/5 TRAY AND 7 TRAY PART 3.0 Safety PART 4.0 Installation PART 5.0 Isolation PART 6.0 Daily / Weekly Cleaning PART 7.0 Ideal Operating Conditions PART 8.0 CLASSIC PANEL Operation Running preset programs PART 9.0 Programming Creating and changing program values...

  • Page 5: Greggs No Steam, Led Lights

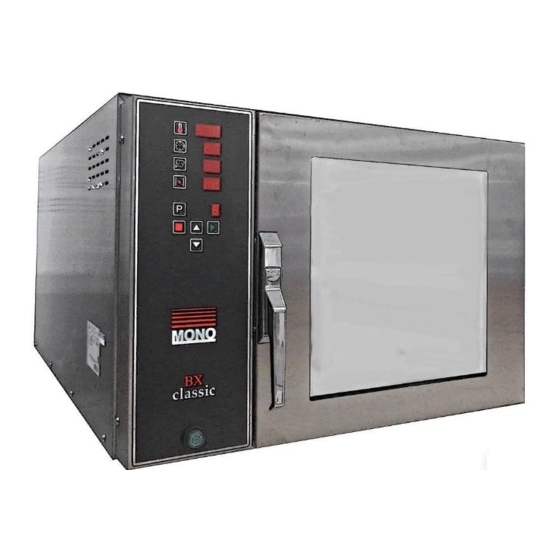

    1.0 INTRODUCTION  A combination of clean industrial design and the latest technology, the MONO BX oven range is designed specifically to take the baking Industry’s standard trays.  The ovens in the range are of stainless steel construction  The smaller ovens are designed to be stackable without separate support.

  • Page 6: Specifications

    2.0 SPECIFICATIONS PLEASE CHECK RATING PLATE ON THE OVEN FOR APPLICABLE VERSION FG153 4/5 TRAY OVENS FG138 7 TRAY OVENS DIMENSIONS TRAY SIZE 40x60 40x60 HEIGHT 526mm 655mm WIDTH 780mm 780mm DEPTH – DOOR CLOSED 1109mm 1109mm POWER (3 phase or single phase available) 3 phase 415v.

  • Page 7: Safety

    The oven is designed for baking of bread, confectionery and savoury products only. DO NOT use it for any other items without consulting with MONO. The oven must be allowed to cool before any form of cleaning is started.

  • Page 8: Installation

    A 50mm gap is required at the sides and rear of this oven and 150mm above. Chimneys and evacuation ducts, fitted above mono ovens should be insulated. In the interests of hygiene, we strongly recommend that before using the oven for the first time you wipe the inside of the oven and all accessories thoroughly with a clean cloth soaked in warm soapy water.

  • Page 9: Isolation

    ISOLATION ELECTRICITY SUPPLY To stop the oven in an emergency, switch off electricity at the wall isolator WATER There is no water supply required for this oven. GREGGS NO STEAM, LED LIGHTS 30/06/16 Rev.B16...

  • Page 10: Daily / Weekly Cleaning

    6.0 CLEANING INSTRUCTIONS DAILY CLEANING NOTE: BEFORE CLEANING, ISOLATE OVEN FROM MAINS SUPPLY AND ALLOW TO COOL.  The equipment is to be cleaned daily using approved chloride–free cleaning fluid  Sweep any debris (after it has been allowed to cool) onto oven removable trays and remove for cleaning.
  • Page 11 WEEKLY CLEANING (OR SOONER IF REQUIRED) NOTE: BEFORE CLEANING, ISOLATE OVEN FROM MAINS SUPPLY AND ALLOW TO COOL. Complete daily check on the previous page then  Clean any burnt-on debris by careful use of a proprietary oven cleaner, carefully following the manufacturer's instructions.

  • Page 12: Ideal Operating Conditions

    A 50mm gap is required at the sides and rear of this oven and at least 150mm on top.  Chimneys and evacuation ducts, fitted above mono ovens should be insulated AMBIENT WORKING TEMPERATURES.
  • Page 13 Bx CLASSIC Operating Instructions Section 8 GREGGS NO STEAM, LED LIGHTS 30/06/16 Rev.B16...

  • Page 14: Running Preset Programs

    8.0 BX‘CLASSIC’ OPERATING INSTRUCTIONS RUNNING PRE-SET PROGRAMS REFER TO CONTROL PANEL ILLUSTRATION (SEE RIGHT) Switch on power by pressing green button (1). Select required program (shown at P) using UP/DOWN scroll keys (2). Press START key (3) to begin bake cycle. •...
  • Page 15 BX 'CLASSIC' PROGRAMMING INSTRUCTIONS CREATING PROGRAMS/CHANGING PROGRAM VALUES. Pre-set values for bake temperature and bake time may be modified at any point. CREATING PROGRAMS/CHANGING PROGRAM VALUES CREATING/CHANGING PROGRAM VALUES 1. Switch on power by pressing green button (1). 2. Select required program (shown at P) using UP/DOWN scroll keys (2).
  • Page 16 OTHER SETTINGS AVAILABLE ON THE CLASSIC PANEL 1. SETTING PREBAKE TEMPERATURE (if enabled) Press (9). (one dot flashes) Press (9) and hold for 3 seconds (3 dots flash). Use up/down arrow keys (2) to set temperature. Press (9) to save Pre-set values for bake temperature;...
  • Page 17 6. TEMPERATURE SET POINT/CHAMBER DISPLAY Hold the P key (5), together with the STOP key (4) for 5 seconds. or if already done for above setting, continue by pressing start (3) - “dsp” is displayed press (8) to change between “sp” = set point temperature displayed or “ct”...

  • Page 18: Maintenance

    10.0 MAINTENANCE  Check for frayed or bare cables. The machine must not be used if frayed or bare cables are visible.  Follow cleaning instructions. 11.0 INTERIOR LIGHT REPLACEMENT In the event of a light failure, please contact your supplier. There are no customer replaceable parts.
  • Page 19 12.0 ELECTRICAL WIRING INFORMATION GREGGS NO STEAM, LED LIGHTS 30/06/16 Rev.B16...
  • Page 20 GREGGS NO STEAM, LED LIGHTS 30/06/16 Rev.B16...
  • Page 21 GREGGS NO STEAM, LED LIGHTS 30/06/16 Rev.B16...
  • Page 22 If a fault arises, please do not hesitate to contact the Customer Service Department, quoting the machine serial number on the silver information plate of the machine and on the front cover of this manual MONO Queensway Swansea West Industrial Estate Swansea.
