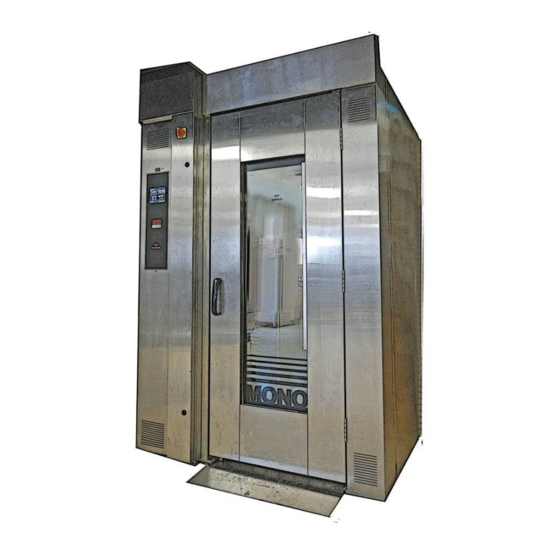

Mxt rotary rack oven

Advertisement

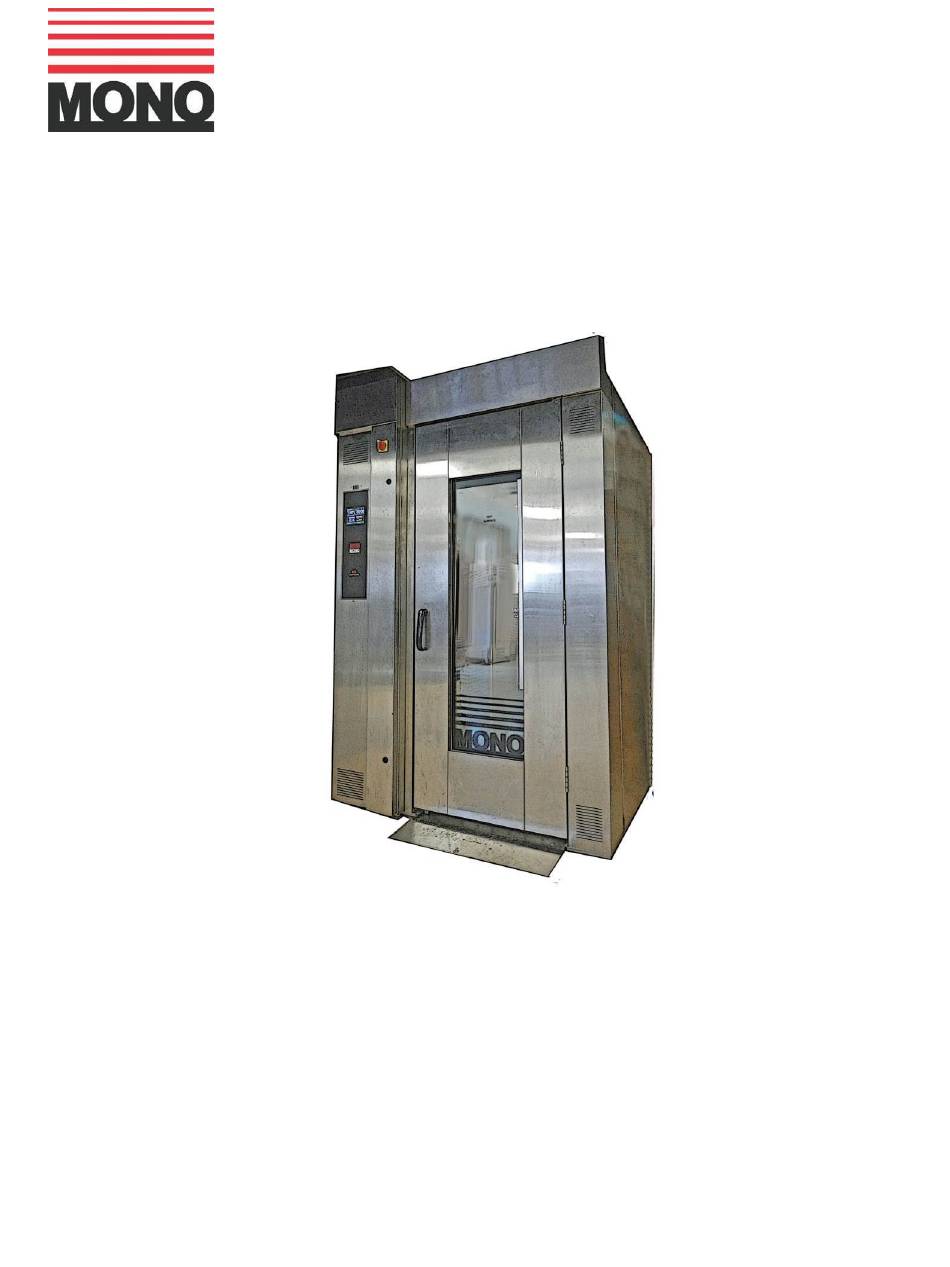

MX Eco-touch Rotary Rack Gas Oven (FG166)
Enter Serial No. here.____________________________
In the event of an enquiry please quote this serial number.
www.monoequip.com
MXT ROTARY RACK OVEN
SET UP AND OPERATION OF OVEN
(With programming instructions)
GAS
ECOTOUCH CONTROL
1
MONO EQUIPMENT
Rev. B21 21-05-21

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FG166-G11RH and is the answer not in the manual?

Questions and answers

Summary of Contents for Mono FG166-G11RH

  • Page 1 MX Eco-touch Rotary Rack Gas Oven (FG166) Enter Serial No. here.____________________________ In the event of an enquiry please quote this serial number. www.monoequip.com MXT ROTARY RACK OVEN SET UP AND OPERATION OF OVEN (With programming instructions) ECOTOUCH CONTROL MONO EQUIPMENT Rev. B21 21-05-21...
  • Page 2 MX Eco-touch Rotary Rack Gas Oven (FG166) MONO EQUIPMENT Rev. B21 21-05-21...
  • Page 3 MX Eco-touch Rotary Rack Gas Oven (FG166) MONO EQUIPMENT Rev. B21 21-05-21...
  • Page 4 MX Eco-touch Rotary Rack Gas Oven (FG166) MONO EQUIPMENT Rev. B21 21-05-21...
  • Page 5 Indicates a hazardous situation which, if not avoided, WARNING will result in electric shock. Indicates a hazardous situation which, if not avoided, CAUTION will result in minor or moderate injury. MONO EQUIPMENT Rev. B21 21-05-21...
  • Page 6 Regulations 419.2 and 544.2. The supply to this machine must be protected by a 30mA RCD MONO EQUIPMENT Rev. B21 21-05-21...
  • Page 7: Table Of Contents

    7-day timer 9- 6.0 settings 9- 7.0 using usb port/stick 9- 8.0 diagnostics Section - 10 Troubleshooting Setting air slots Section - 11 Spares and Services Section - 12 Electrical information Section - 13 Spares MONO EQUIPMENT Rev. B21 21-05-21...
  • Page 8 MX Eco-touch Rotary Rack Gas Oven (FG166) Failure to adhere to the cleaning and maintenance instructions detailed in this booklet could affect the warranty of this machine. MONO EQUIPMENT Rev. B21 21-05-21...
  • Page 9 All reference to LEFT HAND ovens means that main door is hinged on the left and the control panel is on the left. hinged on the left and the control panel is on the left. MONO EQUIPMENT Rev. B21 21-05-21...
  • Page 10: Introduction

    MX Eco-touch Rotary Rack Gas Oven (FG166) INTRODUCTION The MONO MX rotary rack oven is a compact, gas-fired oven with a touchscreen control panel. The standard version of the MXTG oven accommodates a single rotating rack of up to eighteen trays capacity.
  • Page 11 MX Eco-touch Rotary Rack Gas Oven (FG166) OVERALL DIMENSIONS Figure 1: Dimensions for models FG166-G11LH** and FG166-G11RH** 1. FLUE GAS CONNECTION 130mm DIA. 2. WATER CONNECTION ¾-inch BSP 3. POWER CABLE INLET 4. STEAM DIVERTER BOX CONNECTION 100mm DIA. MAX. RACK DIAGONAL = 885mm...
  • Page 12: Specifications

    Single electric-powered motor/gearbox driven via a belt drive. Hanger inside the baking chamber. Rack turntable fitted to selected models (FG166-G****TT), compatible with a range of standard racks. Contact Mono Equipment to check compatibility. Materials No materials containing asbestos have been used in the construction of this oven.
  • Page 13 MX Eco-touch Rotary Rack Gas Oven (FG166) Gas connection Mono MXTG ovens are supplied with a two-stage bespoke burner that is set-up prior to dispatch. The burner is suitable for use with natural gas only. (See Specifications for other details).
  • Page 14 MX Eco-touch Rotary Rack Gas Oven (FG166) A rack turntable option is fitted to selected models (FG166-G****TT), allowing the use of a range of standard racks in the MONO MXTG oven. Air circulation system An electrically powered radial fan re-circulates air within the oven. Heated air enters the fan at the upper left-hand side of the oven and is driven within the roof structure to the vertically orientated air door at the rear corner of the baking chamber.
  • Page 15 Discharge will also occur from the front of the oven upon opening the door at the end of a bake. See also section – Installation. Noise Emission of airborne noise is less than 70 dB. MONO EQUIPMENT Rev. B21 21-05-21...
  • Page 16: Safety

    The following points should be observed and followed at all times. This oven is designed for baking bread, confectionery and savoury bakery products. Do not use it for other items without consulting with MONO. This appliance is not intended for outdoor use.
  • Page 17 The oven must be allowed to cool before any form of cleaning is started. Use only MONO spare parts for this oven. The construction of the oven must not be changed.
  • Page 18 EMERGENCY INTERNAL-DOOR RELEASE TO OPEN After August 2017 the oven’s main door has a safety release handle on its inner side allowing the door to be opened from inside in an emergency lock-in situation. TO OPEN MONO EQUIPMENT Rev. B21 21-05-21...
  • Page 19: Installation

    MX Eco-touch Rotary Rack Gas Oven (FG166) INSTALLATION The MONO MXTg oven is designed to operate as a freestanding unit, and must not be bolted down or fixed to the floor in any way. The concrete floor beneath the oven must be smooth, flat and clear of any obstructions, and must be at least 150mm (6”) thick.
  • Page 20 Note: None of the flue gas ducts should slope downwards or be horizontal (if no flue gas fan is installed). The slope must be upwards towards the chimney.Avoid too many sharp elbows Initial burning-off procedure All ovens undergo the burn-off procedure in the factory before being dispatched. MONO EQUIPMENT Rev. B21 21-05-21...
  • Page 21 Ensure the foot brake (A) on the turntable is released (i.e. in the horizontal position). Push the rack (B) into the oven until it reaches the back stops (C) on the turntable. Put the foot brake on (i.e. move it to the vertical position). Close the oven door. MONO EQUIPMENT Rev. B21 21-05-21...
  • Page 22 MX Eco-touch Rotary Rack Gas Oven (FG166) After baking is complete Open the oven door. Release the foot brake (i.e. move it to the horizontal position). Pull the rack out of the oven. MONO EQUIPMENT Rev. B21 21-05-21...
  • Page 23: Isolation

    AS SOME PARTS STAY ELECTRICALLY LIVE AFTER THE ISOLATOR SWITCH ABOVE IS OPERATED, ENSURE THE OVEN IS DISCONNECTED FROM THE CONSUMER POWER SUPPLY (MAINS) IF WORKING ON THE ELECTRICAL BOX AND PANEL TYPICAL GAS ISOLATING VALVE Installed near oven MONO EQUIPMENT Rev. B21 21-05-21...
  • Page 24: Cleaning Instructions

    A buildup of spillages may result from incorrectly placed racks. Also, check for damage to door seals, particularly if operators are careless with rack handling. GAS BURNER For cleaning, service, and maintenance of the burner, please contact an authorised expert company. MONO EQUIPMENT Rev. B21 21-05-21...
  • Page 25: General Maintenance Instructions

    Servicing of the gas burner, heat exchanger, and flue should be carried out at least once every 12 months by a suitably qualified person. Lighting If the lighting in the door fails to operate, contact the Mono Service Department. It cannot be replaced by the user. MONO EQUIPMENT...
  • Page 26 MX Eco-touch Rotary Rack Gas Oven (FG166) Section 9 TOUCH SCREEN OPERATING INSTRUCTIONS MONO EQUIPMENT Rev. B21 21-05-21...
  • Page 27 ON THE AREA YOU REQUIRE TO ACTIVATE STANDBY SLEEP THE OVEN TURNS OFF. THE OVEN STAYS AT 100c AND TOUCH THE SCREEN TO GO HEATS TO LAST PROGRAM TO THE OPTION SCREEN. TEMPERATURE WHEN THE SCREEN IS TOUCHED. MONO EQUIPMENT Rev. B21 21-05-21...
  • Page 28: Baking Using Favourites

    OPTION SCREEN TOUCH THE NAME OF THE PRODUCT REQUIRED SELECT SCREEN TOUCH THE “FULL LOAD” OR “HALF LOAD” AS REQUIRED LOAD SCREEN TO RETURN TO THE PREVIOUS SCREEN TOUCH THE “BACK” BUTTON AT ANY TIME MONO EQUIPMENT Rev. B21 21-05-21...
  • Page 29 TEMPERATURE PROFILE BAR BAKE TIME PROGRESS BAR NOTE View The actual temperature shown will rise and fall above and below the set temperature as the oven cools and reheats. This is not a fault BAKE TIME LEFT MONO EQUIPMENT Rev. B21 21-05-21...
  • Page 30 SET UP) TOUCHING “VIEW” BUTTON DURING A BAKE TOUCHING “VIEW” BUTTON View DURING A BAKE WILL SHOW THE SETTINGS FOR THE BAKE IN PROGRESS. TOUCH “CANCEL” TO GO BACK TO THE PREVIOUS SCREEN. View VIEW SCREEN MONO EQUIPMENT Rev. B21 21-05-21...
  • Page 31: Baking Using Manual Menu

    KEY IN REQUIRED TEMPERATURE TOUCH “DONE” NOTE: TIME DOES NOT HAVE TO BE SET IN MANUAL MODE. (ONLY TEMPERATURE) WHEN START IS PRESSED, THE TIME WILL COUNT UP INSTEAD OF DOWN. TOUCH STOP TO FINISH THE BAKE. MONO EQUIPMENT Rev. B21 21-05-21...
  • Page 32 MANUAL BAKE SCREEN 2 START CANCEL TOUCH “START” TO START TOUCH AT ANYTIME TO BAKE GO BACK TO THE SETTING SCREEN. TOUCH “STOP” WHEN END OF BAKE BUZZER SOUNDS OR WHEN REQUIRED IF NO TIME WAS ENTERED MONO EQUIPMENT Rev. B21 21-05-21...
  • Page 33 “SAVE”CAN BE TOUCHED AND AN OPTION SCREEN WILL APPEAR. TOUCH “ADD TO FAVOURITES” OR “SAVE AS” USE KEYBOARD TO TYPE THE REQUIRED NAME AND TOUCH “SAVE” NOTE: In manual mode, only one operation of the steam or damper is saved. MONO EQUIPMENT Rev. B21 21-05-21...
  • Page 34: Baking Using Programmes

    THE PRODUCT REQUIRED SELECT SCREEN SCROLL DOWN FOR MORE PRODUCTS IF AVAILABLE TOUCH THE “FULL LOAD” OR “HALF LOAD” AS REQUIRED TOUCH THE “BACK” BUTTON AT ANY TIME TO RETURN TO THE LOAD SCREEN PREVIOUS SCREEN MONO EQUIPMENT Rev. B21 21-05-21...
  • Page 35 TEMPERATURE PROFILE BAR BAKE TIME PROGRESS BAR NOTE View The actual temperature shown will rise and fall above and below the set temperature as the BAKE TIME LEFT oven cools and reheats. This is not a fault MONO EQUIPMENT Rev. B21 21-05-21...
  • Page 36 (THIS TIME CAN BE ALTERED IN SET UP) TOUCHING “VIEW” BUTTON DURING BAKE View TOUCHING “VIEW” BUTTON DURING BAKE WILL SHOW THE SETTINGS FOR THE BAKE IN PROGRESS. TOUCH “CANCEL” TO GO BACK TO THE PREVIOUS SCREEN. VIEW SCREEN MONO EQUIPMENT Rev. B21 21-05-21...
  • Page 37: Creating A Program

    TOUCH THE TYPE OF PRODUCT WANTED AND THE “SELECT” SCREEN OPENS CATEGORY SCREEN TOUCH THE DOWN ARROW UNTIL A BLANK PROGRAM IS REACHED. TOUCH “I” BUTTON NEXT TO THE BLANK PROGRAM TO OPEN NEXT SCREEN SELECT SCREEN MONO EQUIPMENT Rev. B21 21-05-21...
  • Page 38 MX Eco-touch Rotary Rack Gas Oven (FG166) INFORMATION SCREEN TOUCH OPTION TO GO TO PASS CODE SCREEN PASS CODE SCREEN ENTER “SUPERVISOR” PASS CODE AND THEN TOUCH OK. (DEFAULT CODE = 123456) MONO EQUIPMENT Rev. B21 21-05-21...
  • Page 39 KEYS OR BY USING THE KEY PAD. TOUCH “FULL LOAD” TO CHANGE TO “HALF LOAD” SETTINGS IF REQUIRED. TOUCH AGAIN TO GO BACK TO “FULL LOAD” TOUCH “SAVE” WHEN SATISFIED WITH THE SETTINGS OF EACH LOAD TYPE. MONO EQUIPMENT Rev. B21 21-05-21...
  • Page 40 TOUCH TO ADJUST TOUCH TO ADJUST NUMBER OF PRODUCTS NUMBER OF PRODUCTS ACROSS THE TRAY DOWN THE TRAY INCREASE VALUE DECREASE VALUE WHEN SATISFIED WITH THE TRAY LAYOUT TOUCH SAVE TO RETURN TO THE “OPTIONS” SCREEN MONO EQUIPMENT Rev. B21 21-05-21...
  • Page 41 MX Eco-touch Rotary Rack Gas Oven (FG166) SAVE OPTION SCREEN TOUCH “SAVE AS” KEYBOARD SCREEN TYPE IN THE NEW NAME AND TOUCH “SAVE” MONO EQUIPMENT Rev. B21 21-05-21...
  • Page 42 TOUCH THE “i” (INFORMATION) BUTTON NEXT TO THE PRODUCT YOU WANT AS A FAVOURITE. THIS OPENS THE OPTION SCREEN SELECT SCREEN TOUCH “ADD TO FAVOURITES” THE PRODUCT WILL NOW SHOW ON THE FAVOURITES LIST OPTION SCREEN MONO EQUIPMENT Rev. B21 21-05-21...
  • Page 43: Setting 7-Day Timer

    SET “OFF” TIME DECREASE VALUE TIMER SETUP SCREEN NOTE Up to four on/off times can be set for each day. Touch “clear” to clear the settings on the day shown. Touch “save” to activate the times set. MONO EQUIPMENT Rev. B21 21-05-21...
  • Page 44 MX Eco-touch Rotary Rack Gas Oven (FG166) 9 - 6 SETTINGS OPTION SCREEN TOUCH TO OPEN THE “SETTINGS” SCREEN PASS CODE SCREEN ENTER “SUPERVISOR” PASS CODE AND THEN PRESS OK. (DEFAULT CODE = 123456) SETTINGS SCREEN CHOOSE THE SETTING TO ALTER MONO EQUIPMENT Rev. B21 21-05-21...
  • Page 45 TOUCH THE SCREEN TO HIGHLIGHT THE ITEM TO CHANGE USE THE INCREASE / DECREASE BUTTONS TO ALTER THE SETTINGS TIME AND DATE SCREEN WHEN ALL INFORMATION IS CORRECT, TOUCH “SAVE”. THIS WILL RETURN TO THE SETTINGS SCREEN SETTINGS SCREEN MONO EQUIPMENT Rev. B21 21-05-21...
  • Page 46 (GENERAL) SELECT WALLPAPER. TOUCH “BACK” TO CONFIRM SETTINGS SCREEN TOUCH “GENERAL SETTINGS” AND THE FOLLOWING SCREEN WILL APPEAR. SCROLL DOWN TO MOVE THROUGH ALL CHOICES AND ADJUST EACH ONE AS REQUIRED, USING THE ARROW KEYS. MONO EQUIPMENT Rev. B21 21-05-21...
  • Page 47 Gives the choice of what buttons are active and in which order they appear on the 2 fn options screen. 3 fn Options available = Favourites, Programs, Manual bake, Multi bake, 7-day timer . (Settings at 6fn cannot be changed) 4 fn 5 fn MONO EQUIPMENT Rev. B21 21-05-21...
  • Page 48 CHANGE SUPERVISOR PASSWORD HERE CHANGE HIGH LEVEL PASSWORD HERE RESTORES ALL SCREENS BACK TO ORIGINAL DEFAULT SETTINGS (NOT PASSCODES) SCROLL DOWN TO MOVE THROUGH ALL CHOICES AND ADJUST EACH ONE AS REQUIRED, USING THE ARROW KEYS. MONO EQUIPMENT Rev. B21 21-05-21...
  • Page 49 HEATER CONTROL – Contactor or solid state. Defaults to contactor. (solid state not used at the moment) I/O DIAGNOSTIC – Displays outputs and inputs at the top of the screen to aid fault finding if needed. MONO EQUIPMENT Rev. B21 21-05-21...
  • Page 50 If tampering could be a problem, It is a good idea to change the passcodes at regular intervals,. MONO EQUIPMENT Rev. B21 21-05-21...
  • Page 51 Wait for the USB symbol to finish moving If old firmware is found, the firmware version screen will appear. Touch “OK” to update firmware -Wait- Remove USB stick Touch “CANCEL” to choose other items to update or change. (see next page) MONO EQUIPMENT Rev. B21 21-05-21...
  • Page 52 MX Eco-touch Rotary Rack Gas Oven (FG166) Choose action you would like to do. Select the file required. When confirmation of “file loaded ok” Shows, remove the usb stick. MONO EQUIPMENT Rev. B21 21-05-21...
  • Page 53 The oven will find the “Mono” folder automatically when the stick is plugged into the oven. Any stick can be used (does not have to be blank) but the Mono folder must be in the root folder. The most used folders are explained below: SKINS These control the way the screen looks in different modes.
  • Page 54 INPUTS HIGHLIGHT WHEN A SIGNAL IS Received. e.g. DOOR OPEN TOUCH THE REQUIRED OUTPUT AND A SIGNAL IS SENT TO THAT ITEM. THE OUTPUT BEING CHECKED IS HIGHLIGHTED WHEN ACTIVE. TO STOP THE OUTPUT, PRESS AGAIN. MONO EQUIPMENT Rev. B21 21-05-21...
  • Page 55 Signalling that the burner has locked out. To reset , press the button until the light goes out. The burner will then attempt to ignite 3 more times. If the burner continuously fails, contact a qualified gas engineer. MONO EQUIPMENT Rev. B21 21-05-21...
  • Page 56: Setting Air Slots

    Measure slot opening after adjustment is complete to confirm the desired dimension has been achieved. Factory settings: A = 5.9mm B = 4.8mm C = 4.8mm D = 4.8mm E = 4.8mm F = 5.9mm MONO EQUIPMENT Rev. B21 21-05-21...
  • Page 57 All correspondence must state the details shown on the oven’s identification plate. This will reduce errors and time wasted during communication. MONO Queensway Swansea West Industrial Estate Swansea. SA5 4EB UK email:spares@monoequip.com Web site:www.monoequip.com Tel. 01792 561234 Spares +44(0)1792 564039 Fax. 01792 561016 MONO EQUIPMENT Rev. B21 21-05-21...
  • Page 58: Electrical Information

    MX Eco-touch Rotary Rack Gas Oven (FG166) 12.0 ELECTRICAL INFORMATION MONO EQUIPMENT Rev. B21 21-05-21...
  • Page 59 MX Eco-touch Rotary Rack Gas Oven (FG166) MONO EQUIPMENT Rev. B21 21-05-21...
  • Page 60 MX Eco-touch Rotary Rack Gas Oven (FG166) MONO EQUIPMENT Rev. B21 21-05-21...
  • Page 61 MX Eco-touch Rotary Rack Gas Oven (FG166) MONO EQUIPMENT Rev. B21 21-05-21...
  • Page 62 MX Eco-touch Rotary Rack Gas Oven (FG166) MONO EQUIPMENT Rev. B21 21-05-21...
  • Page 63 MX Eco-touch Rotary Rack Gas Oven (FG166) MONO EQUIPMENT Rev. B21 21-05-21...
  • Page 64 MX Eco-touch Rotary Rack Gas Oven (FG166) MONO EQUIPMENT Rev. B21 21-05-21...
  • Page 65 MX Eco-touch Rotary Rack Gas Oven (FG166) MONO EQUIPMENT Rev. B21 21-05-21...
  • Page 66 MX Eco-touch Rotary Rack Gas Oven (FG166) 13.0 SPARES MONO EQUIPMENT Rev. B21 21-05-21...
  • Page 67 Isolator 16A 3 pole B801-07-007 Fan drive “VEE” belt A900-21-114 Door handle 160-32-02000 Bottom door seal 166-13-00060 Door glass unit 166-13-00035 “U” seal for glass unit 166-13-00055 Touch screen overlay 164-90-00001 Touchscreen and board 158-25-80000 MONO EQUIPMENT Rev. B21 21-05-21...
  • Page 68 B. Base bearing (166-17-00014) F. Foot brake (166-17-00065 or 166-17-00067)* C. Floor turntable boss (166-17-00017) G. Right-hand adjustable side guide (166-17-00053) D. Turntable ramp (166-17-00019) H. Back stop plate (166-17-00064) Please state which rack type. MONO EQUIPMENT Rev. B21 21-05-21...
  • Page 69 MX Eco-touch Rotary Rack Gas Oven (FG166) MONO EQUIPMENT Rev. B21 21-05-21...
  • Page 70 MX Eco-touch Rotary Rack Gas Oven (FG166) MONO Queensway Swansea West Industrial Estate Swansea. SA5 4EB UK email:spares@monoequip.com Web site:www.monoequip.com Tel. 01792 561234 Spares +44(0)1792 564039 Fax. 01792 561016 MONO EQUIPMENT Rev. B21 21-05-21...
