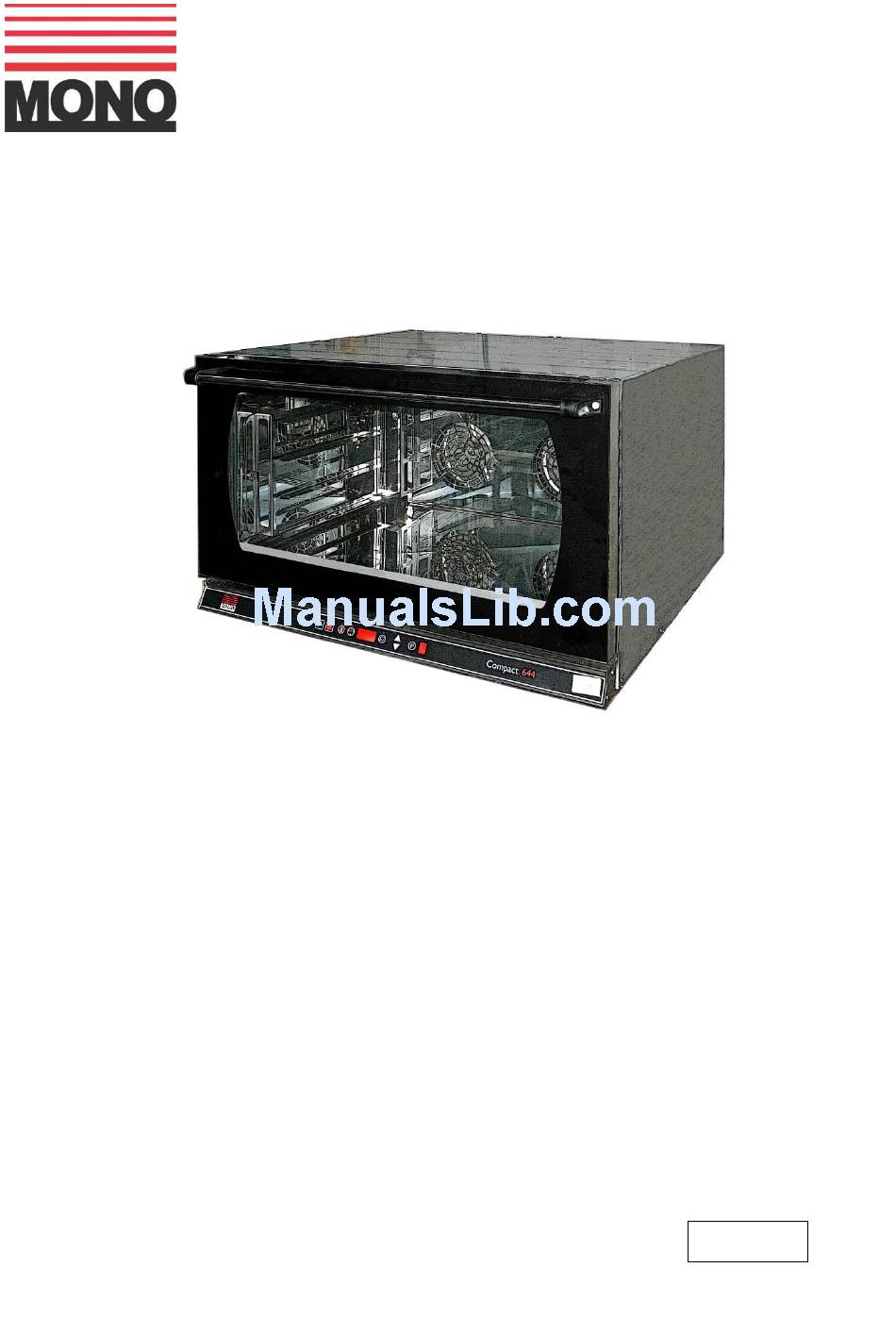

- Page 1 Enter Serial No. here.____________________________ In the event of an enquiry please quote this serial number. www.monoequip.com OPERATING AND MAINTENANCE MANUAL COMPACT SERIES 4 TRAY OVEN FILE 98 644 compact 4 tray RevA17 10-04-17...
- Page 2 PRESS RESET BUTTON LOCATED THROUGH THE REAR BACK PANEL. (DO NOT REMOVE BACK PANEL) Failure to adhere to the cleaning and maintenance instructions detailed in this booklet could affect the warranty of this machine. 644 compact 4 tray RevA17 10-04-17...
- Page 3 644 compact 4 tray RevA17 10-04-17...
-
Page 4: Table Of Contents
PART 8.0 Operating Conditions PART 9.0 Operation Instructions PART 10.0 Maintenance PART 11.0 Steam System Maintenance PART 12.0 Bulb Replacement PART 13.0 Spares Information NO INFORMATION IS AVAILABLE AT THIS TIME PART 14.0 Electrical Information 644 compact 4 tray RevA17 10-04-17... -
Page 5: Part 1.0 Introduction

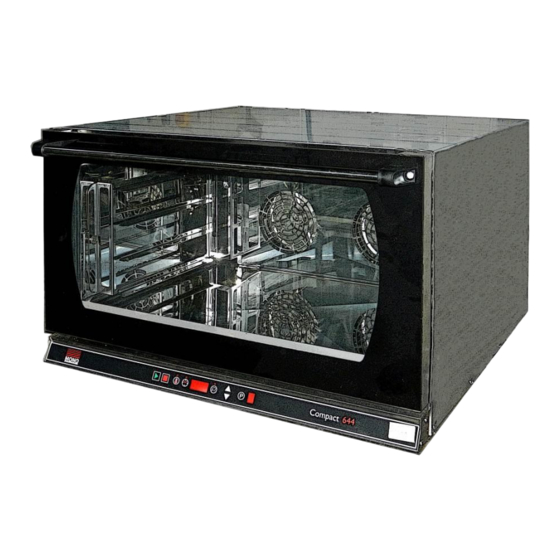

It is has an exceptionally easy to operate control panel that will save up to nine programs. MONO COMPACT is designed to be stackable, without the requirement for a separate support and will grow with your business without occupying a large area of your valuable retailing space. -
Page 6: Specifications
(normal domestic water supply is usually within these limits). Maximum bake temperature 250 degrees C Maximum bake time 99 Minutes Maximum steam time 20 seconds Maximum number of programs Noise Level: Less than 85dB. WEIGHT 65KG 644 compact 4 tray RevA17 10-04-17... - Page 7 644 compact 4 tray RevA17 10-04-17...
- Page 8 (in UK, “environmental protection act 1990” applies) 6.0 ISOLATION To stop the oven in an emergency, switch off at the wall isolator. 644 compact 4 tray RevA17 10-04-17...
-
Page 9: Cleaning Instructions
Wipe clean outer oven front, back and sides with a damp cloth that has been soaked in a solution of mild detergent and hot water (do not soak the lower control panel area with water). 644 compact 4 tray RevA17 10-04-17... -
Page 10: Operating Conditions
Any component malfunctioning during the guarantee period that is found to have been subjected to excessive humidity or ambient working temperatures above 40 o C (115 o F) will not be covered by the component manufactures guarantee, or MONO’s product warranty. -
Page 11: Operating Instructions
OVEN IS HEATING, IF THEY WINDOW WHEN A BAKE PROGRAM IS RUNNING MOVE DOWNWARDS THE OVEN IS COOLING. HEATING COOLING At the end of the bake a beep will be heard. Press stop 2 to stop. 644 compact 4 tray RevA17 10-04-17... - Page 12 If new settings are not saved, the old settings of the program number showing on the screen will be used the next time the program is chosen. Load oven and press start. 1 At the end of the bake a beep will be heard. Press stop 2 to stop. 644 compact 4 tray RevA17 10-04-17...
- Page 13 00 = disabled. Setting can be up to 90 minutes (maximum) in 10 minute increments. Press start 1 and “ ” will show in program display window. This shows the latest firmware revision. Press stop 2 to exit setup and save the parameters. 644 compact 4 tray RevA17 10-04-17...
-
Page 14: Steam System Maintenance
There is no special maintenance required. EM INT 11.0 STEAM SYSTEM MAINTENANCE If it is noticed that the steaming operation has deteriorated, perhaps due to hard water scaling, please contact your oven supplier. 644 compact 4 tray RevA17 10-04-17... -
Page 15: Bulb Replacement
CAUSE HOT SPOTS AND PREMATURE BULB FAILURE. BULB GLASS FRAME GASKET Pt No.B721-67-010 Pt No.B721-67-009 Pt No.B721-67-008 Refit glass front, taking care that the gasket is in position around stainless steel frame. Re-connect oven to the power supply and test. 644 compact 4 tray RevA17 10-04-17... -
Page 16: Spares Information
13.0 Spares Information NO INFORMATION IS AVAILABLE AT THIS TIME Spares Tel. +44(0)1792 564039 email:spares@monoequip.com 644 compact 4 tray RevA17 10-04-17... -
Page 17: Electrical Information
14.0 ELECTRICAL INFORMATION 644 compact 4 tray RevA17 10-04-17... - Page 18 644 compact 4 tray RevA17 10-04-17...
- Page 19 644 compact 4 tray RevA17 10-04-17...
- Page 20 644 compact 4 tray RevA17 10-04-17...
- Page 21 CARE SHOULD BE TAKEN WHEN THE MACHINE COMES TO THE END OF ITS WORKING LIFE. ALL PARTS SHOULD BE DISPOSED OF IN THE APPROPRIATE PLACE, EITHER BY RECYCLING OR OTHER MEANS OF DISPOSAL THAT COMPLIES WITH LOCAL REGULATIONS. (IN UK, ENVIRONMENTAL PROTECTION ACT 1990 APPLIES) 644 compact 4 tray RevA17 10-04-17...
