- Page 1 User manual IP 300Z SPOT-WW Please read the instructions carefully before use...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Safety Instructions……………………………………………………………………………3 2. Technical Specifications………………………………………………………………………4 3. Descriptions………………………………………………………………………………………5 4. Unpacking…………………………………………………………………………………………5 5. Control Menu ……………………………………………………………………………………6-7 6. DMX Channels ……………………………………………………………………………………7 7. Dimension …………………………………………………………………………………………8 8. Trouble Shooting…………………………………………………………………………………9 9. Fixture Cleaning………………………………………………………… ………………………9 STATEMENT The product has well capability and intact packing when leave factory. All of the user should comply with warning item and manual, any misuse cause of the damages are not included in our guarantee, and also can not be responsible for any malfunction &... -
Page 3: Safety Instructions
1.Safety Instructions Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet. •Unpack and check carefully there is no transportation damage before using the unit. •Before operating, ensure that the voltage and frequency of power supply match the power requirements of the unit. -
Page 4: Technical Specifications
2.Technical Specifications Light Source: LED POWER: 300W LED Color: Single warm white or cool white Color Rendering Index(CRI): Ra≥90 LED Life Time: over 50,000 hours Power supply: Voltage: AC100-240V Max.power: 300W Optics: Beam Angle: 15°-30° Zoom Function: Auto zoom Features: Dimming Curve: 4 kinds dimming curve PWM: 500HZ - 25000HZ optional Strobe :1-25times/sec... -
Page 5: Descriptions

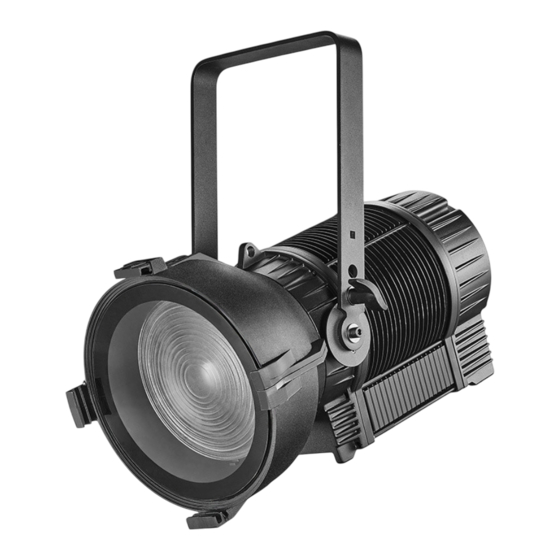

3.Descriptions ·Warm or cool white fresnel light fixture for theatre, film and production ·Fully IP65 rated for seasonal use indoors or out ·Electronic auto zoom from 15°-30° ·Ultra smooth 16-bit dimming of master dimmer and individual colors ·Soft and even field of light ·High brightness with high CRI ·RDM (Remote Device Management) for added flexibility ·Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera... -
Page 6: Control Menu
5.Control Menu Operation Status Mode Display Description “A”stand for standard channel mode, “xxx”stand for ID address, Auto DMX Mode Axxx Master-slave identify controller signals or host signals “D”stand for basic channel mode, “xxx”stand for ID address, Auto identify Dxxx controller signals or master signals “M”stand for Master mode，“MC”stand for “Mixed Colort”... -
Page 7: Dmx Channels
Settings Menu Operation Option Description Touch Screen Touch screen adjust Calibration Dimmer Frequency Change dimmer 500Hz frequency ..25KHz Dimmer Curve Change dimmer curve Standard Incandescent Linear Quick Over Temperature Temperature setting 80~100 Each 5 for increase or decrease Backlight Adjust display 10%~100%... -
Page 8: Dimension
7.Dimension Size of the fixture: 520.1 (D)*306.7(W)*473.9(H)mm... -
Page 9: Trouble Shooting
8.Trouble Shooting Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: A. The unit does not work, no light and the fan does not work 1. Check the connection of power and main fuse. 2.
