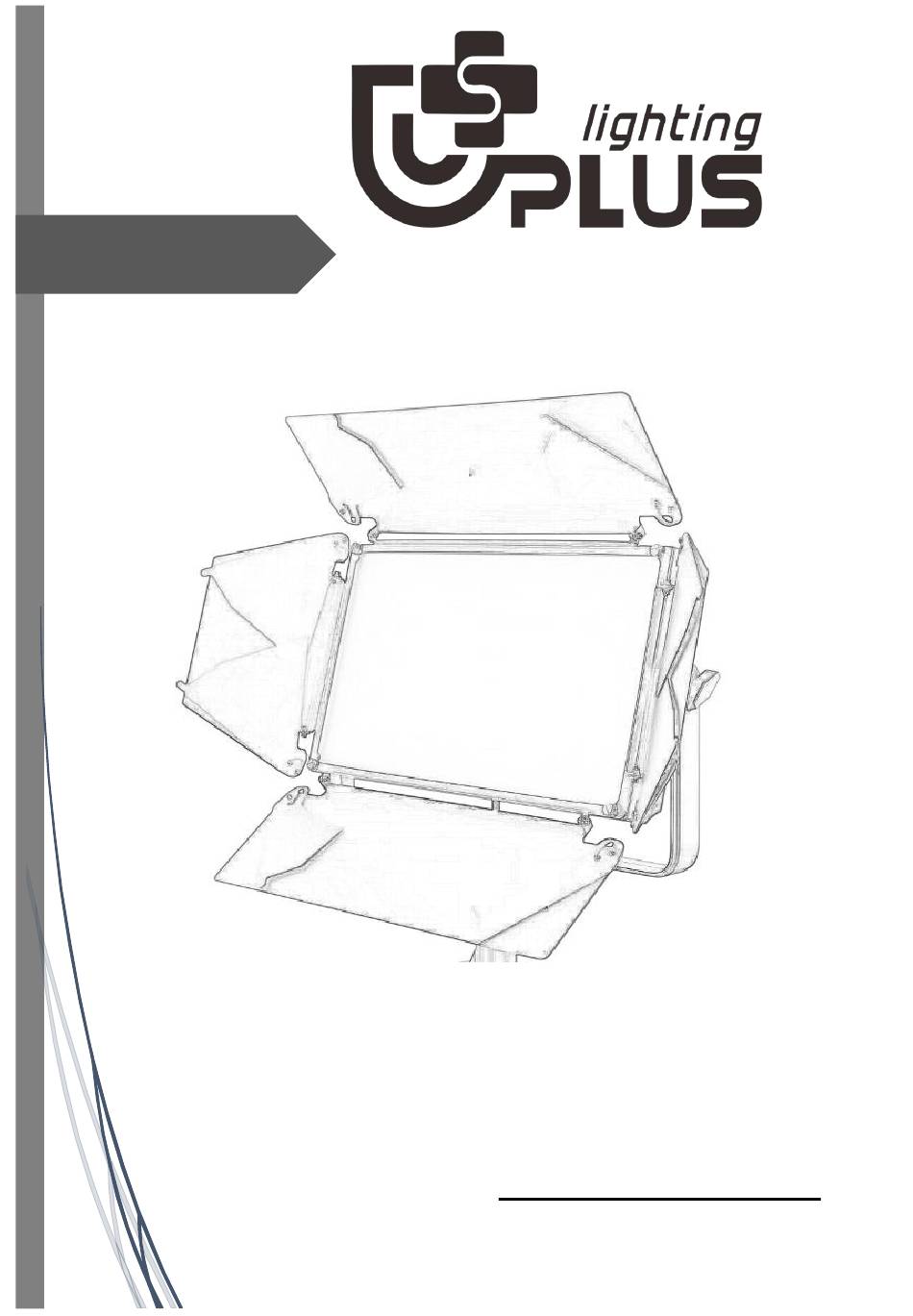

- Page 1 User manual PRO 200 PANEL Please read the instructions carefully before use...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Safety Instructions………………………………………………………………………………3 Technical Specifications…………………………………………………………………………4 Control Menu ………………………………………………………………………………………5 DMX Channel ………………………………………………………………………………………6 Trouble Shooting…………………………………………………………………………………7 Fixture Cleaning………………………………………………………… ………………………7 STATEMENT The product has well capability and intact packing when leave factory. All of the user should comply with warning item and manual, any misuse cause of the damages are not included in our guarantee, and also can not be responsible for any malfunction &... -
Page 3: Safety Instructions
1.Safety Instructions Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet. •Unpack and check carefully there is no transportation damage before using the unit. •Before operating, ensure that the voltage and frequency of power supply match the power requirements of the unit. -
Page 4: Technical Specifications
2.Technical Specifications Optics: Light Source:760*0.5w RGBW 4in1 led Input voltage:AC100-240V 50-60HZ Life:>50000H power:200W Beam angle:120° Dimming system: 0-100% linear adjustment Display mode: LCD display Ra≥94 IP level:IP20 DMX Channels:8/6 channels Control: DMX 512 Dimension: 576*295*120MM, NW:6.6kg... -
Page 5: Control Menu
Control Menu Display Function A001 modify address code Press the OK button to confirm (press and hold for 5 seconds to enter the background and set various parameters) T15C temperature display Err’C means that the temperature control is invalid. When the temperature control is valid, the actual temperature display (such as: 030°C) will appear. -
Page 6: Dmx Channel
4.DMX Channels 8 DMX channels Channel Features DMX value Function Total Dimmer 0--255 From dark to light 0--255 From dark to light Green 0--255 From dark to light Blue 0--255 From dark to light White 0--255 From dark to light Strobe From slow to fast 0--255... -
Page 7: Trouble Shooting
5.Trouble Shooting Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: A. The unit does not work, no light and the fan does not work 1. Check the connection of power and main fuse. 2.
