PD6907 Ex-Proof & I.S. Loop-Powered Feet & Inches Meter
Instruction Manual
•

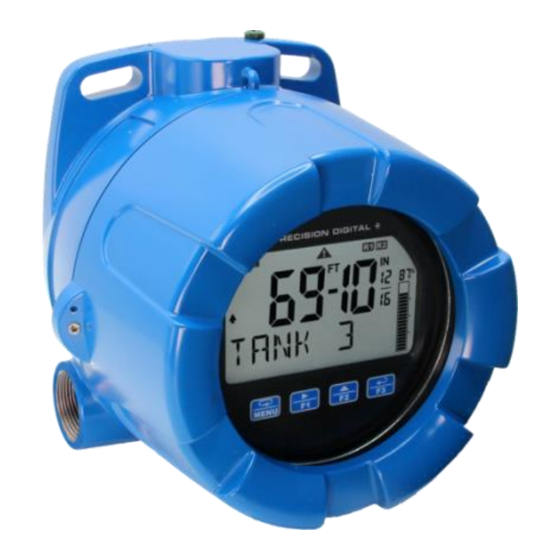

Fully-Approved Explosion-Proof & Intrinsically Safe Loop-Powered Feet & Inches Meters
•
4-20 mA Input Displayed with ±0.02% of Full-Scale Accuracy
•
1.5 Volt Drop (4.7 Volt Drop with Backlight)
•
0.7" (17.0 mm) 5 Digits 7-Segment, FT-IN & Fractions Top Display
•
0.4" (10.2 mm) 8 Alphanumeric 14-Segment Characters Bottom Display
•
Displays Level in Feet & Inches up to 999 Feet, 11 & 15/16 Inches
•
Display Input in Two Different Scales Simultaneously - Great for Level
•
20-Segment Bargraph Standard
•
Display Mountable at 0°, 90°, 180°, & 270°
•
CapTouch Through-Glass Button Programming with Normal and Delayed Modes
•
Loop-Powered Backlight with Red Backlight for Alarm Conditions
•
(2) Open Collector Outputs Standard; Assignable to Pulse, Alarm, Timer, or Stopwatch
•
(2) Optional Loop-Powered Solid-State Relays; Assignable to Alarm, Control, Timer, or Stopwatch
•
Stopwatch & Timer Functions to Drive Relays & Open Collectors
•
Optional Isolated 4-20 mA Analog Output
•
Relay Pump Alternation Based on Level and Runtime
•
Display Relay Runtime & Cycle Count via Relay Info Menu
•
Round Horizontal Tank Function; Just Enter Diameter & Length
•
32-Point Linearization
•
Free PC-Based MeterView XL USB Programming Software
•
HART® Protocol Transparent
•
Enable and Disable Backlight from Menu
•
Operating Temperature Range: -40 to 75°C (-40 to 167°F)
•
Installation Temperature Range: -55 to 75°C (-67 to 167°F)
•
Conformal Coated PCBs for Dust & Humidity Protection
•
Password Protection
•
CSA Certified for Explosion-Proof / Dust-Ignition Proof / Flame-Proof
•
ATEX and IECEx Certified as Intrinsically Safe
•
Flange for Wall or Pipe Mounting; Loop for Stainless Steel Tag; Holes for Tamper-Proof Seal
•
Explosion-Proof, IP68, NEMA 4X Die-Cast Aluminum & Stainless Steel Enclosures
•
3-Year Warranty
PRECISION DIGITAL CORPORATION
233 South Street • Hopkinton MA 01748 USA
Tel (800) 343-1001 • Fax (508) 655-8990
www.predig.com
IECEx
MeterView XL
USB Install
Advertisement
Table of Contents
Troubleshooting
