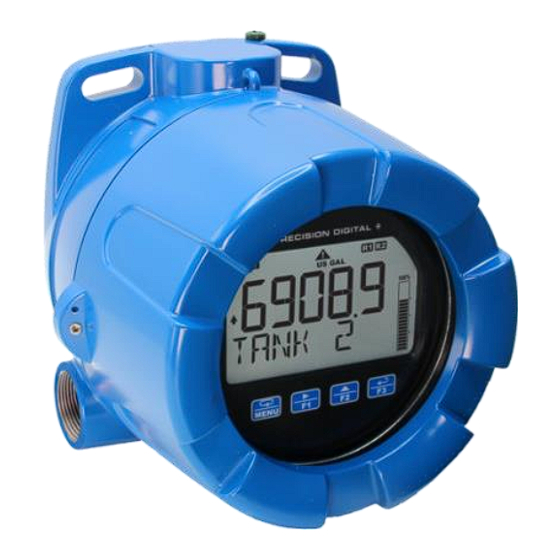

PD6908 Ex-Proof & I.S. Loop-Powered Process Meter
Instruction Manual
•
Fully-Approved Explosion-Proof & Intrinsically Safe Loop-Powered Process Meters
•
4-20 mA Input Displayed with ±0.02% of Full-Scale Accuracy
•
1.5 Volt Drop (4.7 Volt Drop with Backlight)
•
0.7" (17.0 mm) 5 Alphanumeric Characters Top Display
•
0.4" (10.2 mm) 8 Alphanumeric Characters Bottom Display
•
20-Segment Bargraph Standard
•
Display Mountable at 0°, 90°, 180°, & 270°
•
CapTouch Through-Glass Button Programming with Normal and Delayed Modes
•
Loop-Powered Backlight with Red Backlight for Alarm Conditions
•
(2) Open Collector Outputs Standard; Assignable to Pulse, Alarm, Timer, or Stopwatch
•
(2) Optional Loop-Powered Solid-State Relays; Assignable to Alarm, Control, Timer, or Stopwatch
•
Stopwatch & Timer Functions to Drive Relays & Open Collectors
•
Optional Isolated 4-20 mA Analog Output
•
Relay Pump Alternation Based on Level and Runtime
•
Display Relay Runtime & Cycle Count via Relay Info Menu
•
Round Horizontal Tank Function; Just Enter Diameter & Length
•
32-Point Linearization, Square Root Extraction and Programmable Exponent Function
•
Free PC-Based MeterView XL USB Programming Software
•
HART® Protocol Transparent
•
Enable and Disable Backlight from Menu
•
Operating Temperature Range: -40 to 75°C (-40 to 167°F)
•
Installation Temperature Range: -55 to 75°C (-67 to 167°F)
•
Conformal Coated PCBs for Dust & Humidity Protection
•
Password Protection
•
CSA Certified for Explosion-Proof / Dust-Ignition Proof / Flame-Proof
•
ATEX and IECEx Certified as Intrinsically Safe and Explosion-Proof
•
Flange for Wall or Pipe Mounting; Loop for Stainless Steel Tag; Holes for Tamper-Proof Seal
•
Explosion-Proof, IP68, NEMA 4X Die-Cast Aluminum & Stainless Steel Enclosures
•
3-Year Warranty
PRECISION DIGITAL CORPORATION
233 South Street • Hopkinton MA 01748 USA
Tel (800) 343-1001 • Fax (508) 655-8990
www.predig.com
IECEx
MeterView XL
USB Install
Advertisement
Table of Contents
Troubleshooting
Subscribe to Our Youtube Channel
Related Manuals for Precision Digital Corporation PD6908
Summary of Contents for Precision Digital Corporation PD6908
- Page 1 PD6908 Ex-Proof & I.S. Loop-Powered Process Meter Instruction Manual IECEx MeterView XL USB Install • Fully-Approved Explosion-Proof & Intrinsically Safe Loop-Powered Process Meters • 4-20 mA Input Displayed with ±0.02% of Full-Scale Accuracy • 1.5 Volt Drop (4.7 Volt Drop with Backlight) •...
- Page 2 PD6908 Explosion-Proof & Intrinsically Safe Loop-Powered Process Meter Instruction Manual The Complete PD6900 Series Plastic Enclosures - General Purpose PD6907-GP-PL PD6908-GP-PL PD6928-GP-PL PD6938-GP-PL 4-20 mA Input 4-20 mA Input 4-20 mA Input Pulse Input Feet & Inches Meter Process Meter...
-
Page 3: Table Of Contents
PD6908 Explosion-Proof & Intrinsically Safe Loop-Powered Process Meter Instruction Manual Table of Contents Introduction ......................6 Key Features ......................7 Ordering Information ..................11 Accessories ....................11 Specifications..................... 13 Display ......................13 General ......................13 Enclosure ....................... 14 Input ........................ 14 Common Open Collector &... - Page 4 PD6908 Explosion-Proof & Intrinsically Safe Loop-Powered Process Meter Instruction Manual Programming the Outputs (OUTPUT) ............39 Open Collector Outputs (OPEN COLLECTR) ..........40 Solid-State Relay Outputs (RELAY) ............45 Isolated 4-20 mA Output (4-20 mA) ............51 Output Manual Control (CONTROL) ............. 51 Advanced Features Menu (ADVANCE) ............
- Page 5 PD6908 Explosion-Proof & Intrinsically Safe Loop-Powered Process Meter Instruction Manual Table of Figures Figure 1. Enclosure Dimensions – Front View ............ 19 Figure 2. Enclosure Dimensions – Side View ............. 19 Figure 3. Enclosure Dimensions – Top View ............19 Figure 4.
-
Page 6: Introduction
PD6908 Explosion-Proof & Intrinsically Safe Loop-Powered Process Meter Instruction Manual Introduction Disclaimer The information contained in this document is subject to change without notice. Precision Digital The PD6908 ProtEX+ loop-powered explosion-proof Corporation makes no representations or & intrinsically safe meters can be installed virtually warranties with respect to the contents hereof;... -
Page 7: Key Features
Function Keys Two-Color Backlight 2X More Informative Display CapTouch Through-Glass The PD6908 display offers a 50% larger display area Buttons and is twice more informative than previous The PD6908 is equipped with four capacitive sensors generations of loop-powered explosion-proof meters. - Page 8 Easy Wiring & Service The PD6908 has been designed for easy wiring and servicing. All connections are made to removable Enable / Disable Backlight screw terminal blocks. There are no exposed printed The backlight may be enabled or disabled using the circuit boards.
- Page 9 PD6908 Explosion-Proof & Intrinsically Safe Loop-Powered Process Meter Instruction Manual Modern and Practical Enclosure The PD6908 NEMA 4X, IP68 enclosure provides serious protection from the elements, high impact, corrosion, and electrical interference. Plus, the extensive worldwide agency approvals allow it to be installed virtually anywhere.
- Page 10 Instruction Manual Pump Alternation Input Signal Conditioning The PD6908 can be used as a pump controller to To satisfy applications that require scaling in ways alternate two pumps and indicate high and low alarm other than the usual 2-point linear method, the conditions.
-
Page 11: Ordering Information
Loop-Powered Explosion-Proof & Intrinsically Safe Process Meter, 4-20 mA Analog Output PD6908-HA-AL-L5N Loop-Powered Explosion-Proof & Intrinsically Safe Process Meter, Two Solid-State Relays & 4-20 mA Analog Output ProtEX+ PD6908 • Decimal Models – Stainless Steel Enclosure Model Description PD6908-HA-SS-LNN Loop-Powered Explosion-Proof & Intrinsically Safe Process Meter, No Options PD6908-HA-SS-L2N Loop-Powered Explosion-Proof &... - Page 12 PD6908 Explosion-Proof & Intrinsically Safe Loop-Powered Process Meter Instruction Manual PDA1024-01 24 VDC Power Supply PD9501 Multi-Function Calibrator The PDA1024-01 is a DIN rail mounted 1.5 A, 24 VDC power supply that can be used to power the 4-20 mA transmitter.
-
Page 13: Specifications
PD6908 Explosion-Proof & Intrinsically Safe Loop-Powered Process Meter Instruction Manual Specifications General Except where noted all specifications apply to operation at +25°C. Programming Four CapTouch through-glass buttons when Method cover is installed. The CapTouch buttons can Display be used with the cover removed. -
Page 14: Enclosure
PD6908 Explosion-Proof & Intrinsically Safe Loop-Powered Process Meter Instruction Manual Enclosure Input Material -AL Models: Input 4-20 mA ASTM A413 LM6 die-cast aluminum, Accuracy ±0.02% of span ±1 count, copper-free, enamel coated. Square root and programmable exponent: -SS Models: 10-100% FS ASTM A743 CF8M investment-cast Voltage Drop Without backlight: 1.5 V maximum,... -
Page 15: Common Open Collector & Relay Specifications
PD6908 Explosion-Proof & Intrinsically Safe Loop-Powered Process Meter Instruction Manual Common Open Collector & Solid-State Relays Relay Specifications Rating 250 VAC/VDC @ 0.5 A resistive 38 VA; 250 VAC; 0.3 A pilot duty Number Two open collectors & two relays... -
Page 16: Meterview Xl Software
PD6908 Explosion-Proof & Intrinsically Safe Loop-Powered Process Meter Instruction Manual MeterView XL Software Availability Free download from www.predig.com System Microsoft® Windows® 7 & 10 Requirements Communicati USB 2.0 (Standard USB A to Micro USB B) Cable provided Configuration Configure all parameters on the meter. -
Page 17: Compliance Information
PD6908 Explosion-Proof & Intrinsically Safe Loop-Powered Process Meter Instruction Manual Compliance Information ATEX/IECEx Special Conditions for Safe Use The following conditions relate to safe installation and/or use of the equipment. Electromagnetic Compatibility • The equipment loop/power port shall be connected to an intrinsically safe barrier with Uo ≥... -
Page 18: Eu Declaration Of Conformity
PD6908 Explosion-Proof & Intrinsically Safe Loop-Powered Process Meter Instruction Manual EU Declaration of Installation Conformity To access the connectors, remove the enclosure cover and unclip the display module by pulling it from For shipments to the EU and UK, a Declaration of the enclosure. -
Page 19: Mounting
PD6908 Explosion-Proof & Intrinsically Safe Loop-Powered Process Meter Instruction Manual Mounting The PD6908 has a slotted mounting flange that may be used for pipe mounting or wall mounting. Alternatively, the unit may be supported by the conduit using the conduit holes provided. Refer to Figure 1 and Figure 2. -
Page 20: Connections
PD6908 Explosion-Proof & Intrinsically Safe Loop-Powered Process Meter Instruction Manual Connections To access the connectors, remove the enclosure cover and unclip the display module by pulling it from the enclosure. Signal, backlight, open collector, and digital input connections are made to removable connectors on the display module. -
Page 21: Connectors Labeling
PD6908 Explosion-Proof & Intrinsically Safe Loop-Powered Process Meter Instruction Manual Connectors Labeling The following graphics show the locations of the connectors for each available configuration. – – Open Collector Connection Outputs Ribbon Cable Connector Digital Backlight Input + Signal –... -
Page 22: Figure 6. Connector Labeling For Pd6908-Ha-##-L3N
PD6908 Explosion-Proof & Intrinsically Safe Loop-Powered Process Meter Instruction Manual Options Board – – 4-20 mA Open Collector Output – Connection Outputs Ribbon Cable Connector Digital Backlight Input + Signal – – – + BL mA CapTouch On/Off Switch Figure 6. Connector Labeling for PD6908-HA-##-L3N Options Board –... -
Page 23: Wiring Diagrams
PD6908 Explosion-Proof & Intrinsically Safe Loop-Powered Process Meter Instruction Manual Wiring Diagrams Intrinsically Safe Wiring Explosion-Proof Wiring Current Loop (4-20 mA) Connections • Signal connections are made to a three-terminal PD6908 installation must be performed in connector. See Connectors Labeling on page 21. The... -
Page 24: Digital Input Connections
PD6908 Explosion-Proof & Intrinsically Safe Loop-Powered Process Meter Instruction Manual Digital Input Connections Open Collector Output Connections A digital input is standard on the meter. This digital Open collector output 1 and 2 connections are made input is connected with a normally open contact... -
Page 25: Setup And Programming
PD6908 Explosion-Proof & Intrinsically Safe Loop-Powered Process Meter Instruction Manual Setup and Programming CapTouch Buttons Delay The CapTouch have two modes of operation: Normal and Delayed. Use the Delayed mode to prevent The meter is factory calibrated prior to shipment to display accidental trigger of the buttons. -
Page 26: Meterview Xl Programming Software
PD6908 Explosion-Proof & Intrinsically Safe Loop-Powered Process Meter Instruction Manual MeterView XL Programming Software The fastest and easiest way to program the meter is To download the latest MeterView XL programming using the free Meterview XL programming software. software and manual, visit predig.com/meterviewxl. -
Page 27: Captouch Buttons And Status Indicators
PD6908 Explosion-Proof & Intrinsically Safe Loop-Powered Process Meter Instruction Manual CapTouch Buttons and Status Indicators Indicators Buttons Indicator State Description Button Description Steady Process trend arrows Menu Flashing Alarm Indicator Right Arrow/F1 Steady Password protected Steady Solid-state relay 1 Up Arrow/F2... -
Page 28: Display Functions & Messages
PD6908 Explosion-Proof & Intrinsically Safe Loop-Powered Process Meter Instruction Manual Display Functions & Messages Display Functions & Messages Parameter Action/Setting Description The meter displays various functions and messages during setup, programming, and operation. The following table Pascal shows the main menu functions and messages in the order Hectopascal they appear in the menu. - Page 29 PD6908 Explosion-Proof & Intrinsically Safe Loop-Powered Process Meter Instruction Manual Display Functions & Messages Display Functions & Messages Parameter Action/Setting Description Parameter Action/Setting Description OUTPUT PV SETUP Press Enter to save Advanced input programming (PV 1 & PV 2) (two menus, PV 1 and PV 2, are programmed units, input, and display values.
- Page 30 PD6908 Explosion-Proof & Intrinsically Safe Loop-Powered Process Meter Instruction Manual Display Functions & Messages Display Functions & Messages Parameter Action/Setting Description Parameter Action/Setting Description DISPMIN Display the PV’s minimum value HOLD. O UT Hold all outputs while F1-F3 or DI are active (pressed or on) Display the PV’s maximum value...
- Page 31 PD6908 Explosion-Proof & Intrinsically Safe Loop-Powered Process Meter Instruction Manual Display Functions & Messages Display Functions & Messages Parameter Action/Setting Description Parameter Action/Setting Description DISABLE Disable comma Turn bottom display off BARGRAPH PV PCT (1 or 2) Turn off or change the bargraph...
-
Page 32: Main Menu
PD6908 Explosion-Proof & Intrinsically Safe Loop-Powered Process Meter Instruction Manual Main Menu The main menu consists of all the meter’s programmable functions: Input, Output, Advanced, and Display. • Press Menu button to enter Programming Mode then press the Right-Arrow button to move forward through the menu and the Up-Arrow button to move back. -
Page 33: Setting Numeric Values
PD6908 Explosion-Proof & Intrinsically Safe Loop-Powered Process Meter Instruction Manual Setting Numeric Values The numeric values are set using the Right and Up-Arrow buttons. Press Right-Arrow to select next digit and Up-Arrow to increment digit value. The selected digit will flash. -
Page 34: Scaling The 4-20 Ma Input (Input)
PD6908 Explosion-Proof & Intrinsically Safe Loop-Powered Process Meter Instruction Manual Scaling the 4-20 mA Input (INPUT) It is very important to read the following information before proceeding to program the meter: • The meter is factory calibrated prior to shipment to display 0.00 to 100.00 gal, which corresponds to the 4-20 mA input. -
Page 35: Available Unit Classes And Units
PD6908 Explosion-Proof & Intrinsically Safe Loop-Powered Process Meter Instruction Manual Available Unit Classes and Units The meter has six available preprogrammed unit classes: volume, height, temperature, pressure, weight, and rate. Each unit class has the following available units to choose from:... -
Page 36: Setting Custom Units (Custom)
PD6908 Explosion-Proof & Intrinsically Safe Loop-Powered Process Meter Instruction Manual Setting Custom Units (CUSTOM) When the desired unit class or unit of measure within a class is not available, a custom unit may be programmed. Select the CUSTOM menu (or CUSTOM unit within a unit class) to enter a custom unit name. -
Page 37: Enabling Or Disabling Commas On The Bottom Display (Comma)
PD6908 Explosion-Proof & Intrinsically Safe Loop-Powered Process Meter Instruction Manual Dual-Scale Mode: Enabling or Disabling Commas on the Top Display: Toggling Between Process Variable and Units Bottom Display (COMMA) Bottom Display: Toggling Between Process Variable The bottom display is set to show a comma... -
Page 38: Configuring The Display (Top And Bottom)
PD6908 Explosion-Proof & Intrinsically Safe Loop-Powered Process Meter Instruction Manual Configuring the Display (TOp and BOTTOM) The display is configured using the TOP and BOTTOM menus in the DISPLY menu. Additional menus are available if the meter is in dual-scale mode to allow the second PV to be displayed on either the top or bottom display. -
Page 39: Programming The Bargraph (Bargraph)
PD6908 Explosion-Proof & Intrinsically Safe Loop-Powered Process Meter Instruction Manual Programming the Bargraph (BARGRAPH) The meter comes equipped with a bargraph display for applications where a visual representation of the process variable’s percentage of full scale is desirable. This feature can be enabled or disabled using the Bargraph menu (BARGRAPH). -
Page 40: Open Collector Outputs (Open Collectr)
PD6908 Explosion-Proof & Intrinsically Safe Loop-Powered Process Meter Instruction Manual Open Collector Outputs (OPEN COLLECTR) The meter is equipped with two NPN open collector outputs as a standard feature that may be set up for pulse outputs, alarms, timed pulses, or disabled. - Page 41 PD6908 Explosion-Proof & Intrinsically Safe Loop-Powered Process Meter Instruction Manual Pulse Output (PULSE) The pulse outputs may be programmed to generate a scaled frequency based on the PV and a programmable factor. The factor determines the number of pulses per second generated per unit of measure. For example, if the meter display shows 100 gallons and the factor is set to 2, the number of pulses generated per second would be 200.
- Page 42 PD6908 Explosion-Proof & Intrinsically Safe Loop-Powered Process Meter Instruction Manual Alarm (ALARM) Alarm outputs may be assigned to the PV or the digital input. When assigned to the PV, the alarm may be set as either a high alarm or a low alarm. Alarm actions (AUTO, AUTO. M AN, LATCH, L-CLEAR) determine how and when the alarm should be reset.
- Page 43 PD6908 Explosion-Proof & Intrinsically Safe Loop-Powered Process Meter Instruction Manual Flashing Red Alarm (RED) The last two lines in the preceding menu flow chart show how to program the display to turn red, flash, and display a message when an alarm occurs.
- Page 44 PD6908 Explosion-Proof & Intrinsically Safe Loop-Powered Process Meter Instruction Manual Stopwatch (STPWATCH) The stopwatch function may be used to manually run and control a process for a specific time interval up to 99 hrs., 59 min, and 59 seconds. The stopwatch function may be assigned to any open collector. There are three settings needed to use the function effectively.
-
Page 45: Solid-State Relay Outputs (Relay)
PD6908 Explosion-Proof & Intrinsically Safe Loop-Powered Process Meter Instruction Manual Solid-State Relay Outputs (RELAY) The meter can be optionally equipped with two solid-state relays that may be set up for alarms, timer, stopwatch, or pump control. Alternatively, they may be disabled. - Page 46 PD6908 Explosion-Proof & Intrinsically Safe Loop-Powered Process Meter Instruction Manual Alarm (ALARM) Alarm outputs may be assigned to the PV or the digital input. When assigned to the PV, the alarm may be set as either a high alarm or a low alarm. Alarm actions (AUTO, AUTO. M AN, LATCH, L-CLEAR) determine how and when the alarm should be reset.
- Page 47 PD6908 Explosion-Proof & Intrinsically Safe Loop-Powered Process Meter Instruction Manual Pump Control (PUMPCTRL) The pump control output is used in situations where the relays are used to control pumps. There are two options available for controlling pumps: on-off (ON-OFF) and pump alternation (ALTERN).
- Page 48 PD6908 Explosion-Proof & Intrinsically Safe Loop-Powered Process Meter Instruction Manual Pump Alternation (ALTERN) Pump alternation sets the two relays to alternate every time the first on point (ON 1) is reached. The active relay will turn off once the first off point (OFF 1) is reached. If the PV reaches the second on point (ON 2), the other relay will also turn on.
- Page 49 PD6908 Explosion-Proof & Intrinsically Safe Loop-Powered Process Meter Instruction Manual Pump Control with Alternation & Alarm Example The following is a typical application where the relays and open collectors are used for pump alternation and high and low level alarm.
- Page 50 PD6908 Explosion-Proof & Intrinsically Safe Loop-Powered Process Meter Instruction Manual Timer (TIMER) The timer output may be set to generate the timed pulse only once (ONESHOT) or continuously (CONT). The timer output produces a constant width pulse at a constant frequency, if set as continuous timer.
-
Page 51: Isolated 4-20 Ma Output (4-20 Ma)
PD6908 Explosion-Proof & Intrinsically Safe Loop-Powered Process Meter Instruction Manual Runtime & Cycle Count (INFO) The relay information menu shows runtime and cycle count for each relay. These values may be cleared at any time by selecting the Clear option (CLEAR?). -
Page 52: Advanced Features Menu (Advance)
PD6908 Explosion-Proof & Intrinsically Safe Loop-Powered Process Meter Instruction Manual Advanced Features Menu (ADVANCE) To simplify the setup process, functions not needed for most applications are located in the Advanced Features menu. The options under advanced features include advanced PV setup, cutoff, filter, password, function key... -
Page 53: Advanced Process Variable Setup (Adv Pv Setup)
PD6908 Explosion-Proof & Intrinsically Safe Loop-Powered Process Meter Instruction Manual Advanced Process Variable Setup (ADV PV SETUP) The Advanced PV Setup menu contains options to apply input signal conditioning functions to the input and to scale/calibrate the input signal. Input Signal Conditioning Functions (FUNCTN) The Function menu is used to select the input signal conditioner applied to the input: linear, square root, programmable exponent, or round horizontal tank volume calculation. - Page 54 The square root function can be used to linearize the signal from a differential pressure transmitter and display flow rate in engineering units. PD6908 Displaying Flow Rate by Applying the Square Root Function to the Output of a DP Transmitter.
- Page 55 The PD6908, in combination with an ultrasonic level transmitter, makes for an economical way to measure and display open channel flow rate in most weirs and flumes. A guide such as the ISCO Open Channel Flow Measurement Handbook can provide the user with all the information needed: the exponent used in the flow equation for the desired flow units and the flow rate for any given head height.
- Page 56 PD6908 Explosion-Proof & Intrinsically Safe Loop-Powered Process Meter Instruction Manual The Programmable Exponent function is programmed in the following manner:...
- Page 57 PD6908 Explosion-Proof & Intrinsically Safe Loop-Powered Process Meter Instruction Manual Multi-Point Linearization (LINEAR) MeterView XL showing the Up to 32 linearization points can be selected for PV1 and linear points setup feature. Up PV2 under the LINEAR function. Multi-point linearization...
- Page 58 MeterView XL Round Horizontal Tank Function Automatically Calculates the Volume Once the Diameter and the Length of the Tank are Entered. PD6908 Displaying Height in Feet and Volume in Gallons in a Round Horizontal Tank Using the Round Horizontal Tank Linearization Feature.
- Page 59 PD6908 Explosion-Proof & Intrinsically Safe Loop-Powered Process Meter Instruction Manual Advanced Scaling and Calibration (SCALE. C AL) This menu offers options to scale or calibrate the meter. Scaling the Input (SCALE) The scale menu in the Advanced menu is the same as the scale menu in the Input menu. See Scaling the 4-20 mA Input (INPUT) on page 34 for details about scaling the meter.
-
Page 60: Low-Flow Cutoff (Cutoff)
PD6908 Explosion-Proof & Intrinsically Safe Loop-Powered Process Meter Instruction Manual Low-Flow Cutoff (CUTOFF) The low-flow cutoff feature allows the meter to be programmed so that the often-unsteady output from a differential pressure transmitter at low flow rates always displays zero on the meter. The cutoff value may be programmed from 0.1 to 99999. -
Page 61: Programmable Function Keys User Menu (User)
PD6908 Explosion-Proof & Intrinsically Safe Loop-Powered Process Meter Instruction Manual Programmable Function Keys User Menu (USER) The User menu allows the user to assign the CapTouch buttons function keys F1, F2, and F3, and the digital input (located on the input signal connector) to access some of the menus or to activate certain functions immediately (e.g. -
Page 62: Tare (Tare)
PD6908 Explosion-Proof & Intrinsically Safe Loop-Powered Process Meter Instruction Manual Function Keys & Digital Input Display Description Available Settings START Start the stopwatch Refer to the following table for descriptions of each STOP Pause/Stop the stopwatch available function key or digital input setting. -
Page 63: Changing System Settings (System)
PD6908 Explosion-Proof & Intrinsically Safe Loop-Powered Process Meter Instruction Manual Changing System Settings (SYSTEM) Enabling the Dual-Scale Feature (PV2) The System menu contains the following menus: Analog Output Calibration, Restore Factory Defaults, Dual-Scale (PV2), Backlight, CapTouch Buttons Operation Mode, Information, and Internal Calibration. - Page 64 PD6908 Explosion-Proof & Intrinsically Safe Loop-Powered Process Meter Instruction Manual Enabling or Disabling the Calibrating the Internal mA Backlight (BACKLITE) Reference (ICAL) The backlight may be enabled or disabled using the The meter is factory calibrated prior to shipment to display System - Backlight menu.
-
Page 65: Meter Operation
PD6908 Explosion-Proof & Intrinsically Safe Loop-Powered Process Meter Instruction Manual Meter Operation CapTouch Buttons The meter is equipped with four CapTouch through- The PD6908 is equipped with four capacitive sensors glass buttons. These buttons allow meter operation that operate as through-glass buttons so that it can be... -
Page 66: Function Keys Operation
PD6908 Explosion-Proof & Intrinsically Safe Loop-Powered Process Meter Instruction Manual Function Keys Operation Runtime & Cycle Count (INFO) During operation, the programmable function keys The relay information menu shows runtime and cycle operate according to the way they have been count for each relay. -
Page 67: Troubleshooting
PD6908 Explosion-Proof & Intrinsically Safe Loop-Powered Process Meter Instruction Manual Troubleshooting Determining Software Version This product is a highly sophisticated instrument with To determine the software (firmware) version of a an extensive list of features and capabilities. If the meter:... -
Page 68: Factory Default Settings
PD6908 Explosion-Proof & Intrinsically Safe Loop-Powered Process Meter Instruction Manual Factory Default Settings Parameter Display Default Setting The following table shows the factory setting for most Pump Control Menu of the programmable parameters on the meter. Pump Ctrl On 70.00... -
Page 69: Troubleshooting Tips
PD6908 Explosion-Proof & Intrinsically Safe Loop-Powered Process Meter Instruction Manual Troubleshooting Tips Certain sequences of events can cause unexpected results. To solve these issues, it is best to start fresh from factory defau lts and use the manual as a step by step programming guide, rather than a random approach to programming. To reset the meter to fac tory defaults, see Factory Default Settings on page 68. - Page 70 PD6908 Explosion-Proof & Intrinsically Safe Loop-Powered Process Meter Instruction Manual Notes...
- Page 72 PD6908 Explosion-Proof & Intrinsically Safe Loop-Powered Process Meter Instruction Manual Contact Precision Digital Technical Support Call: (800) 610-5239 or (508) 655-7300 Fax: (508) 655-8990 Email: support@predig.com Sales Support Call: (800) 343-1001 or (508) 655-7300 Fax: (508) 655-8990 Email: sales@predig.com Place Orders Email: orders@predig.com...
