SeaLevel DIO-16.PCI User Manual
Hide thumbs
Also See for DIO-16.PCI:
- User manual (22 pages) ,
- User manual (23 pages) ,
- User manual (23 pages)
Related Manuals for SeaLevel DIO-16.PCI
Summary of Contents for SeaLevel DIO-16.PCI
- Page 1 DIO-16.PCI User Manual | 8002 © Sealevel Systems, Inc. 8002 Manual | SL9021 10/2022...
-
Page 2: Table Of Contents
Contents INTRODUCTION ..................................... 3 BEFORE YOU GET STARTED ..............................4 SOFTWARE INSTALLATION ..............................6 PHYSICAL INSTALLATION................................. 7 PROGRAMMING THE DIO-16.PCI ............................8 ELECTRICAL CHARACTERISTICS............................12 SPECIFICATIONS ..................................13 EXAMPLE CIRCUITS................................... 14 APPENDIX A – TROUBLESHOOTING ........................... 15 APPENDIX B – HOW TO GET ASSISTANCE ........................16 APPENDIX C –... -
Page 3: Introduction

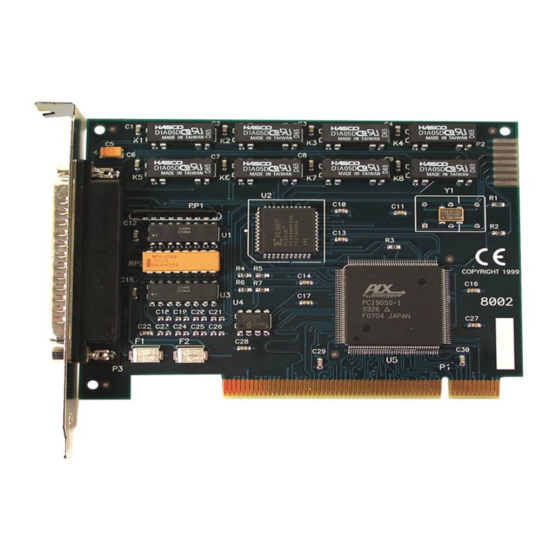

Introduction The DIO-16.PCI provides 8 optically isolated inputs and 8 reed relay outputs. The inputs (rated for 3-13V) protect the PC and other sensitive equipment from spikes and ground loop current that can be generated in industrial environments, while the outputs provide high quality, long life, low current (10 Watt maximum) , dry contact switch closures. -
Page 4: Before You Get Started
Before You Get Started What’s Included The DIO-16.PCI is shipped with the following items. If any of these items is missing or damaged, please contact Sealevel for replacement. DIO-16.PCI Adapter • Advisory Conventions Warning The highest level of importance used to stress a condition where damage could result to the product, or the user could suffer serious injury. - Page 5 Optional Items Depending upon your application, you are likely to find one or more of the following items useful for interfacing the DIO-16.PCI to real-world signals. All items can be purchased from our website (www.sealevel.com) or by calling (864) 843-4343.
-
Page 6: Software Installation
Only users running Windows 7 or newer should utilize these instructions for accessing and installing the appropriate driver via Sealevel’s website. If you are utilizing an operating system prior to Windows 7, please contact Sealevel by calling 864.843.4343 or emailing support@sealevel.com... -
Page 7: Physical Installation
Replace the screw you removed for the blank and use it to secure the adapter into the slot. (This is required to ensure FCC Part 15 compliance.) Replace the cover. Connect the power cord The DIO-16.PCI is now ready for use. © Sealevel Systems, Inc. 8002 Manual | SL9021 10/2022... -
Page 8: Programming The Dio-16.Pci
Digital I/O Interface The DIO-16.PCI provides two parallel input/output (I/O) ports. The ports are organized as ports A, B, C, and D. Port A is an input port interfaced to optically isolated inputs, while port C is the reed relay output port. - Page 9 Increasing the input resistor accordingly can increase the maximum input voltage. Because socketed DIP resistors are utilized, they can easily be replaced with a different value. Sealevel, if necessary, can do this. The input circuits are not intended for monitoring 120-volt AC circuits. In addition to being too high a voltage for the circuits, it is dangerous to have that high a voltage on the card.
- Page 10 Output Port Pin Assignments Port C Bit Relay P2 Pin 10,28 11,29 12,30 13,31 14,32 15,33 16,34 17,35 Power and Ground Pin Assignments Ground 18,36,37 + 5 Volts + 12 Volts © Sealevel Systems, Inc. 8002 Manual | SL9021 10/2022...
- Page 11 Direct Hardware Control In systems where the user’s program has direct access to the hardware (i.e. DOS) the table below gives the mapping and functions that the DIO-16.PCI provides. R = Read R/W = Read or Write Function Available Port...
-
Page 12: Electrical Characteristics
1 eight bit optically isolated input port • DB-37 Male connector • Highly reliable 10 VA DIP reed relays • Multiple adapters can reside in same computer • PCI 2.1 Bus compatible © Sealevel Systems, Inc. 8002 Manual | SL9021 10/2022... -
Page 13: Specifications
0°C - 70°C Storage -50°C - 105°C Power Consumption Supply line +5 VDC Rating 280 mA Physical Dimensions PCB Length 5.0 inches (12.7 cm) PCB Height 3.9 inches (9.9 cm, including Gold Fingers) © Sealevel Systems, Inc. 8002 Manual | SL9021 10/2022... -
Page 14: Example Circuits
Manufacturing All Sealevel Systems Printed Circuit boards are built to UL 94V0 rating and are 100% electrically tested. These printed circuit boards are solder mask over bare copper or solder mask over tin nickel. Example Circuits Input Circuit Output Circuit ©... -
Page 15: Appendix A - Troubleshooting
Use the SeaIO Control Panel applet or the Device Manager’s property page for card identification and configuration. If these steps do not solve your problem, please call Sealevel Systems’ Technical Support, (864) 843-4343. Our technical support is free and available Monday through Friday from 8:00 AM - 5:00 PM, Eastern Time. -
Page 16: Appendix B - How To Get Assistance
When calling for technical assistance, please have your user manual and current adapter settings. If possible, please have the adapter installed in a computer ready to run diagnostics. Sealevel Systems provides an FAQ section on its web site. Please refer to this to answer many common questions. This section can be found at http://www.sealevel.com/faq.asp. -
Page 17: Appendix C - Silk Screen - 8002 Pcb
Appendix C – Silk Screen - 8002 PCB 3.90" 5.00" © Sealevel Systems, Inc. 8002 Manual | SL9021 10/2022... -
Page 18: Appendix D - Compliance Notices
Always use cabling provided with this product if possible. If no cable is provided or if an alternate cable is required, use high quality shielded cabling to maintain compliance with FCC/EMC directives. © Sealevel Systems, Inc. 8002 Manual | SL9021 10/2022... -
Page 19: Warranty
Sealevel's commitment to providing the best I/O solutions is reflected in the Lifetime Warranty that is standard on all Sealevel manufactured I/O products. We are able to offer this warranty due to our control of manufacturing quality and the historically high reliability of our products in the field. Sealevel products are designed and manufactured at its Liberty, South Carolina facility, allowing direct control over product development, production, burn-in and testing.
