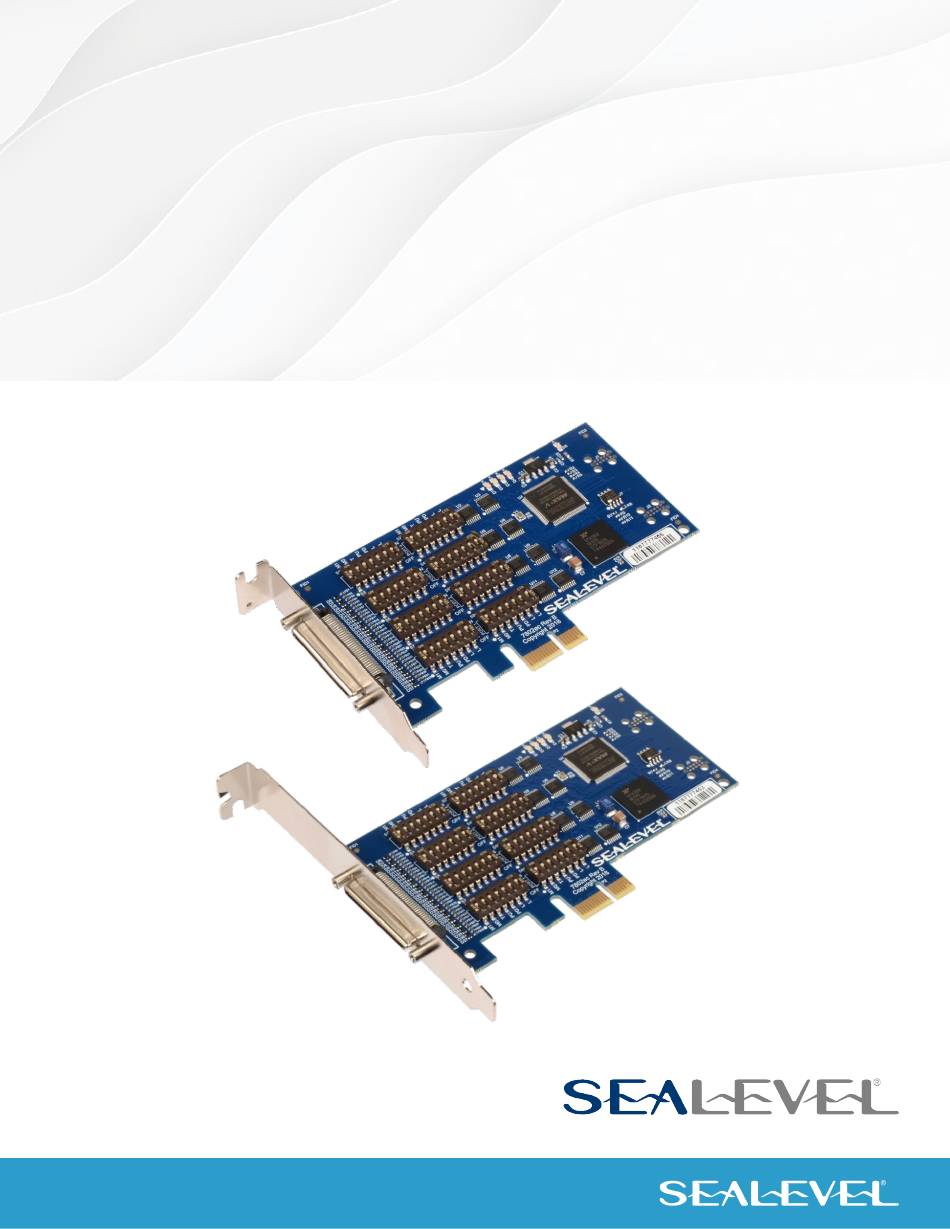

- Page 1 COMM+8.422.PCIe User Manual | 7802ec and 7802ecS © Sealevel Systems, Inc. 7802ec &7802ecS Manual | SL9680 11/2022...
-
Page 2: Table Of Contents
APPENDIX E – GROUND LOOP PHENOMENON ....................25 APPENDIX F – MECHANICAL DRAWING ......................26 APPENDIX G – HOW TO GET ASSISTANCE ..................... 27 APPENDIX H – COMPLIANCE NOTICES ......................28 WARRANTY ................................ 29 ....................................© Sealevel Systems, Inc. 7802ec &7802ecS Manual | SL9680 11/2022... -
Page 3: Introduction
Introduction The Sealevel COMM+8.422.PCIe (Item# 7802ec) is a PCI Express 2.0 Gen 1 compliant interface adapter with eight field selectable RS-422/485 asynchronous serial ports supporting data rates exceeding 1 Mbps for industrial automation and control applications. Configure the serial ports as RS-422 for long distance device connections up to 4000ft. where noise immunity and high data integrity are essential. -
Page 4: Before You Get Started
Before You Get Started What’s Included The COMM+8.422.PCIe is shipped with the following items. If any of these items are missing or damaged, please contact Sealevel for replacement. COMM+8.422.PCIe Adapter • 7802ec – PCIe Board with Low Profile PC Bracket 7802ecS –... - Page 5 Optional Items Depending upon your application, you are likely to find one or more of the following items useful for interfacing the 7802ec. All items can be purchased from our website (www.sealevel.com) or by calling (864) 843-4343. RS-422 to RS-530 Cable (Part Number CA176) DB9 Female (RS-422) to DB25 Male (RS-530) Cable, 10 inch Length.
- Page 6 Terminal Block Kit (Part Number KT106) The TB06 terminal block has been designed to connect directly to any Sealevel dual DB9 serial board or to serial boards with DB9 cables. If you need to extend the length of your dual DB9 connection, the KT106 includes the TB06 terminal block and two CA127 DB9 extension cables.
-
Page 7: Card Setup
In RS-485 mode under Windows the port is also set to automatically de-assert its output at the end of each transmission, returning the driver to tristate so that other drivers can transmit on the line. © Sealevel Systems, Inc. 7802ec &7802ecS Manual | SL9680 11/2022... - Page 8 Enables RS-422/RS-485 RX+ 1K ohm pull-up to 3.3V (biasing) Enables RS-422/RS-485RX– 1K ohm pull-down to GND (biasing) Enables RS-485 two-wire mode, connecting TX– to RX– Enables RS-485 two-wire mode, connecting TX+ to RX+ © Sealevel Systems, Inc. 7802ec &7802ecS Manual | SL9680 11/2022...
- Page 9 0 to 15 bit-time delay that is inserted after the end of the last stop-bit of the last transmitted character. This delay controls when to automatically disable the RS-485 transmitter. This delay may be useful in long-cable networks. © Sealevel Systems, Inc. 7802ec &7802ecS Manual | SL9680 11/2022...
-
Page 10: Software Installation
Only users running Windows 7 or newer should utilize these instructions for accessing and installing the appropriate driver via Sealevel’s website. If you are utilizing an operating system prior to Windows 7, please contact Sealevel by calling 864.843.4343 or emailing support@sealevel.com... - Page 11 4. Follow the instructions in the previous section named Windows Installation. For additional software support, please call Sealevel Systems’ Technical Support, (864) 843-4343. Our technical support is free and available from 8:00 AM - 5:00 PM Eastern Time, Monday through Friday. For email support contact: support@sealevel.com.
-
Page 12: Hardware Installation
&LPT)’ and in parentheses should be a COM number assigned to each port number. Your system will assign the next available COM number, which will vary by computer (COM11 through COM18 are shown in this example). © Sealevel Systems, Inc. 7802ec &7802ecS Manual | SL9680 11/2022... - Page 13 5. In right pane, expand the ‘Multi-port serial adapters’ section by double clicking it. 6. Locate the COMM+8.422.PCIe device in the listing. 7. Right click on the entry for the ‘COMM+8.422.PCIe’ device and click ‘Uninstall’ 8. Confirm that you want to uninstall the device by clicking the ‘OK’ button. This will remove the hardware, COM ports and all registry entries from your computer.
-
Page 14: Technical Description
Technical Description The Sealevel Systems 7802ec provides a PCIe interface adapter with eight (8) asynchronous serial ports providing versatile RS-422/485 interfaces for industrial automation and control applications. The 7802ec provides UARTs with 256 byte TX and RX FIFOs, programmable baud rates, data format, and interrupt control. - Page 15 Please terminate any unused control signals. The most common way to do this in RS-422/485 mode is to connect RTS+ to CTS+ and RTS- to CTS-. Terminating these pins, if not used, will help ensure the best performance from the adapter. © Sealevel Systems, Inc. 7802ec &7802ecS Manual | SL9680 11/2022...
-
Page 16: Technical Specifications
At 25º C ambient Manufacturing All Sealevel Systems Printed Circuit boards are built to UL 94V0 rating and are 100% electrically tested. These printed circuit boards are solder mask over bare copper or solder mask over tin nickel. Power Requirements... -
Page 17: Appendix A - Troubleshooting
Appendix A – Troubleshooting Once you have confirmed that the serial adapter COM ports are listed in Device Manager, use the Sealevel WinSSD utility to verify communications. Detailed help is included in the WinSSD utility. Please set the adapters Electrical Interface to RS-422. - Page 18 This will first open the COM port. From this tab the port can also be closed (See image below). Click the ‘Settings’ button to open the COM Port Properties dialog box. This will allow the Port Settings to be altered. © Sealevel Systems, Inc. 7802ec &7802ecS Manual | SL9680 11/2022...
- Page 19 Change your parameters to 9600 bits per second, 8 data bits, no parity, 1 stop bit, and no flow control, as pictured below. Click ‘Apply’ and ‘OK’. © Sealevel Systems, Inc. 7802ec &7802ecS Manual | SL9680 11/2022...
- Page 20 In the main WinSSD window, click on the ‘BERT’ tab (Bit Error Rate test). Click on the ‘Start’ button. © Sealevel Systems, Inc. 7802ec &7802ecS Manual | SL9680 11/2022...
- Page 21 If these steps do not solve your problem, please call Sealevel Technical Support at (864) 843-4343. Our technical support is free and available Monday through Friday from 8:00 AM – 5:00 PM EST. For email support, contact support@sealevel.com.
-
Page 22: Appendix B - Handling Instructions
Keep work area free of non-conductive materials such as ordinary plastic assembly aids and Styrofoam. • Use field service tools such as cutters, screwdrivers, and vacuum cleaners, which are conductive. © Sealevel Systems, Inc. 7802ec &7802ecS Manual | SL9680 11/2022... -
Page 23: Appendix C - Electrical Interface
Four wire mode allows full duplex data transfers. RS-485 does not define a connector pin out or a set of modem control signals. RS 485 does not define a physical connector. © Sealevel Systems, Inc. 7802ec &7802ecS Manual | SL9680 11/2022... -
Page 24: Appendix D - Asynchronous Communications
The communication parameters are baud rate, parity, number of data bits per character, and stop bits (i.e. 9600,N,8,1). © Sealevel Systems, Inc. 7802ec &7802ecS Manual | SL9680 11/2022... -
Page 25: Appendix E - Ground Loop Phenomenon
DC to DC converter circuit or in the opto- isolator circuit. This condition will cause data errors and possibly destruction of the receiver circuit. DATA+ DATA- Isolated Isolated Adapter Ground Adapter Isolation Barrier © Sealevel Systems, Inc. 7802ec &7802ecS Manual | SL9680 11/2022... -
Page 26: Appendix F - Mechanical Drawing
Appendix F – Mechanical Drawing © Sealevel Systems, Inc. 7802ec &7802ecS Manual | SL9680 11/2022... -
Page 27: Appendix G - How To Get Assistance
The Sealevel website is an excellent resource located at www.sealevel.com. The most current software updates and user manuals are available via our homepage by clicking on the 'Drivers' or 'Manuals' links located under ‘Technical Support.’... -
Page 28: Appendix H - Compliance Notices
Always use cabling provided with this product if possible. If no cable is provided or if an alternate cable is required, use high quality shielded cabling to maintain compliance with FCC/EMC directives. © Sealevel Systems, Inc. 7802ec &7802ecS Manual | SL9680 11/2022... -
Page 29: Warranty
Sealevel's commitment to providing the best I/O solutions is reflected in the Lifetime Warranty that is standard on all Sealevel manufactured I/O products. We are able to offer this warranty due to our control of manufacturing quality and the historically high reliability of our products in the field. Sealevel products are designed and manufactured at its Liberty, South Carolina facility, allowing direct control over product development, production, burn-in and testing.
