- Page 1 Artisan Technology Group is your source for quality new and certified-used/pre-owned equipment SERVICE CENTER REPAIRS WE BUY USED EQUIPMENT • FAST SHIPPING AND DELIVERY Experienced engineers and technicians on staff Sell your excess, underutilized, and idle used equipment at our full-service, in-house repair center We also offer credit for buy-backs and trade-ins •...
-
Page 2: Dio-32.Pcie User Manual
DIO-32.PCIe User Manual USER MANUAL ITEM# 8004e Sealevel Systems, Inc. Sealevel.com Phone 864.843.4343 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com... -
Page 3: Table Of Contents
Output Ports (Reed Relay) ........................... 16 Output Ports (Reed Relay) Pin Assignments (DB-37 Male) ................16 DB-78 Female Pin Assignments (Card Edge Connector) .................. 17 ©Sealevel Systems, Inc. 8004e Manual SL9207 2/2017 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com... - Page 4 Register Description ............................18 Optional 3093 Migration Cable (CA378) ......................19 Example Circuits ..............................21 Software Installation ............................... 22 Where to Get Sealevel Software .......................... 22 Windows Installation ............................22 Guided Software Installation ................Error! Bookmark not defined. Manual Software Installation ..........................23 Linux Installation..............................
-
Page 5: Before You Get Started

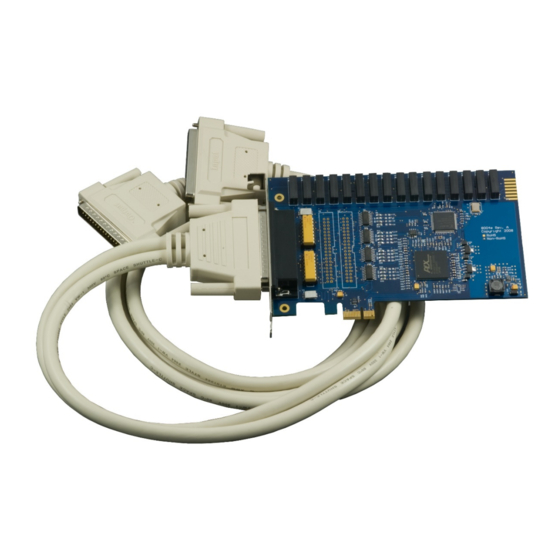

Before You Get Started WHAT’S INCLUDED The 8004e is shipped with the following items. If any of these items are missing or damaged, please contact Sealevel for replacement. • 8004e -DIO-32.PCIe Digital I/O Adapter 8004e – Board with 3-13V inputs 8004He –... -
Page 6: Product Description
Windows dynamic link library (DLL) and as a Linux kernel module and library. SeaI/O also includes sample code and utilities to simplify software development. The inputs on the 8004e are rated for 3-13V. The inputs on the 8004He are rated for 10-30V. FEATURES •... -
Page 7: Optional Items
DB78 Male to DB78 Female Extension Cable (Item# CA233) This cable provides a 6’ extension to the DB78 board connector on the 8004e. It has one DB78 Male connector and one DB78 Female connector. DB78M to DB37 Female and DB37 Male, for 3093 (Item# CA378) -
Page 8: Electrical Specifications
Maximum Load 100 Million Closures Contact Speed Operate .5 mS Release .5 mS Bounce .5 mS Maximum Operating Speed 600 Hz ©Sealevel Systems, Inc. 8004e Manual SL9207 2/2017 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com... -
Page 9: Technical Specifications
10 to 90% R.H. Non-Condensing MANUFACTURING All Sealevel Systems Printed Circuit boards are built to UL 94V0 rating and are 100% electrically tested. These printed circuit boards are solder mask over bare copper or solder mask over tin nickel. ©Sealevel Systems, Inc. -
Page 10: Hardware Installation
1. Right click on ‘My Computer’ icon on your desktop or in the Start menu. 2. Click ‘Manage’ in the fly out menu to launch the ‘Computer Management’ console window. 3. In the left pane under ‘System Tools’, click ‘Device Manager’. ©Sealevel Systems, Inc. 8004e Manual SL9207 2/2017... - Page 11 4. In right pane near the bottom, expand the ‘SeaI/O Device’ section by clicking the ‘+’ symbol. This shows the parent device is installed correctly. 5. You should see the card assignment listed as ‘SeaI/O 8004e’ with the card number in parentheses. The card number will increment for each additional SeaI/O device installed.
-
Page 12: Digital I/O Interface
Optically Isolated Input Port Port B Address 4001 16385 Port C Address 4002 16386 Reed Relay Output Port Port D Address 4003 16387 ©Sealevel Systems, Inc. 8004e Manual SL9207 2/2017 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com... -
Page 13: Programming The Dio-32.Pci
Sealevel’s SeaI/O Classic software is provided to assist in the development of reliable applications for the Sealevel Systems family of PCI and PCI Express digital I/O adapters. The SeaI/O Classic software is included on the CD that shipped with the board. The software contains driver functions for use in accessing the I/O as well as helpful samples and utilities. - Page 14 Turn on Voltage = diode drop + (turn on current) x (resistance) [Ex: 1.1 + (.003) x R] Input Current = ((input voltage)-1.1V) / (resistor value) Maximum voltage = 1.1 + square root of (.25(resistor value)) ©Sealevel Systems, Inc. 8004e Manual SL9207 2/2017...
- Page 15 Increasing the input resistor accordingly can increase the maximum input voltage. Because socketed DIP resistors are utilized, they can easily be replaced with a different value. Sealevel can do this, if necessary. The input circuits are not intended for monitoring 120-volt AC circuits. In addition to being too high a voltage for the circuits, it is dangerous to have that high a voltage on the card.
-
Page 16: Input Ports Pin Assignments (Db-37 Female)
The CA165 cable input pin out is not compatible with the 3093 ISA digital I/O board. If you are upgrading from the 3093 and wish to preserve existing infrastructure wiring, order the CA378 cable. ©Sealevel Systems, Inc. 8004e Manual SL9207 2/2017... -
Page 17: Output Ports (Reed Relay)
4,22 12,30 5,23 13,31 6,24 14,32 7,25 15,33 8,26 16,34 9,27 17,35 Ground 18,36,37 + 5 Volts + 12 Volts ©Sealevel Systems, Inc. 8004e Manual SL9207 2/2017 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com... -
Page 18: Female Pin Assignments (Card Edge Connector)
13,31 51,70 43,62 6,24 14,32 50,69 42,61 7,25 15,33 49,68 41,60 8,26 16,34 48,67 40,59 9,27 17,35 39,57,58 18,36,37 +12V ©Sealevel Systems, Inc. 8004e Manual SL9207 2/2017 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com... -
Page 19: Direct Hardware Control
PCD6 PCD5 PCD4 PCD3 PCD2 PCD1 PCD0 Base+3 Output Port D RD/WR PDD7 PDD6 PDD5 PDD4 PDD3 PDD2 PDD1 PDD0 ©Sealevel Systems, Inc. 8004e Manual SL9207 2/2017 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com... -
Page 20: Optional 3093 Migration Cable (Ca378)
The CA378 cable is designed specifically for customers upgrading from a 3093 ISA board to the 8004 PCI board. If you are not upgrading from the 3093 board, use the standard CA165 cable that ships with the 8004 PCI digital I/O board. ©Sealevel Systems, Inc. 8004e Manual SL9207 2/2017... - Page 21 4,22 12,30 5,23 13,31 6,24 14,32 7,25 15,33 8,26 16,34 9,27 17,35 Ground 18,36,37 + 5 Volts + 12 Volts ©Sealevel Systems, Inc. 8004e Manual SL9207 2/2017 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
-
Page 22: Example Circuits
Output Pair Pins from the table labeled Output Ports Pin Assignments. Common is the other pin listed in Output Pair Pins. Since this is an isolated output, the polarity is not important. ©Sealevel Systems, Inc. 8004e Manual SL9207 2/2017... -
Page 23: Software Installation
All Sealevel products are shipped with media containing the installers for each software package available. If the media is otherwise unavailable or if desired, the current versions of Sealevel software packages can be obtained from the Sealevel website (see following instructions). If you already have the Sealevel software, proceed to the Windows or Linux installation section. -
Page 24: Manual Software Installation
If you installed your hardware prior to loading/installing the software, please click on the ‘Click here if you installed hardware before software’ link and follow the listed instructions. 1. To install a software package from the Sealevel media, browse the Sealevel Systems media ’Software’ directory. For example: Software\SeaIO\Windows\SeaIO Installer.exe 2. -
Page 25: Linux Installation
LINUX INSTALLATION Most Sealevel Linux software is distributed as source code. To use the software, it must be compiled. Refer to the README file in each package for system prerequisites. You must have administrative privileges to install the software. It is not necessary to have administrative privileges to build or use the software. - Page 26 Test utilities were compiled in step 8, and they are located in the package’s folder named and installed globally in step 10 to: seaio/utilities/ /usr/bin. ©Sealevel Systems, Inc. 8004e Manual SL9207 2/2017 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
-
Page 27: Appendix A - Handling Instructions
6. Keep work area free of non-conductive materials such as ordinary plastic assembly aids and Styrofoam. 7. Use field service tools such as cutters, screwdrivers, and vacuum cleaners that are conductive. ©Sealevel Systems, Inc. 8004e Manual SL9207 2/2017 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com... -
Page 28: Appendix B - Troubleshooting
5. Use the VCTest to verify the basic I/O functionality of your digital I/O board. The source code is included to simplify application development in the programming language C. ©Sealevel Systems, Inc. 8004e Manual SL9207 2/2017... - Page 29 Visual Basic application development. 2. SeaIOTST is a command line utility that allows you to test the function calls from the SeaI/O Classic API. ©Sealevel Systems, Inc. 8004e Manual SL9207 2/2017 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
- Page 30 Programmers Interface section. If these steps do not solve your problem, please call Sealevel’s Technical Support at (864) 843-4343. Our technical support is free and available from 8:00AM-5:00PM EST Monday through Friday. For email support contact support@sealevel.com.
-
Page 31: Appendix C - How To Get Assistance
The Sealevel website is an excellent resource located at www.sealevel.com. The most current software updates and user manuals are available via our homepage by clicking on the '' or ' links located under ‘Technical Support.’... -
Page 32: Appendix D - Drawing
Appendix D – Drawing ©Sealevel Systems, Inc. 8004e Manual SL9207 2/2017 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com... -
Page 33: Appendix E - Compliance
Always use cabling provided with this product if possible. If no cable is provided or if an alternate cable is required, use high quality shielded cabling to maintain compliance with FCC/EMC directives. ©Sealevel Systems, Inc. 8004e Manual SL9207 2/2017... -
Page 34: Warranty
In the event of failure, Sealevel will repair or replace the product at Sealevel's sole discretion. Failures resulting from misapplication or misuse of the Product, failure to adhere to any specifications or instructions, or failure resulting from neglect, abuse, accidents, or acts of nature are not covered under this warranty. - Page 35 Artisan Technology Group is your source for quality new and certified-used/pre-owned equipment SERVICE CENTER REPAIRS WE BUY USED EQUIPMENT • FAST SHIPPING AND DELIVERY Experienced engineers and technicians on staff Sell your excess, underutilized, and idle used equipment at our full-service, in-house repair center We also offer credit for buy-backs and trade-ins •...
