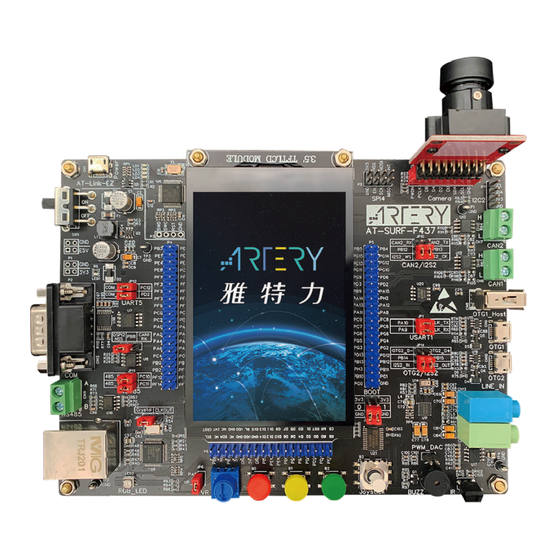

ARTERY AT32F435 Series Reference Manual

®
ARM -based 32-bit Cortex
dual QSPI, SDRAM, dual OTGFS, Ethernet, camera, 18 timers, 3 ADCs, 23
communication interfaces
Feature

®
Core: ARM 32-bit Cortex
− 288 MHz maximum frequency, with a Memory
Protection Unit (MPU), single-cycle multiplication
and hardware division
− Floating Point Unit (FPU)
− DSP instructions

Memories
− 256 to 4032 KBytes of Flash memory
− sLib: configurable part of main Flash set as a library
area with code executable but secured, non-
readable
− 384 to 512 KBytes of SRAM
− External memory controller (XMC) with 16-bit data
bus: supports CF, SRAM, PSRAM, NOR, NAND,
SDRAM memories
− Up to 2 x QSPI interfaces for external SPI Flash or
SPI RAM extension, and memory mapping mode

LCD parallel interface, 8080/6800 modes

Power control (PWC)
− 2.6 V ~ 3.6 V application supply
− Power-on reset (POR)/ low-voltage reset (LVR), and
power voltage monitor (PVM)
− Low power: Sleep, Deepsleep, and Standby modes
− VBAT supply for LEXT, ERTC and 20 x 32-bit battery
power register (ERTC_BPR)

Clock and reset management (CRM)
− 4 to 25 MHz crystal oscillator (HEXT)
− Internal 48 MHz factory-trimmed clock (HICK),
accuracy 1% at T
+105 °C, with automatic clock calibration (ACC)
− PLL with configurable frequency multiplication and
division factor
− 32.768 kHz crystal oscillator (LEXT)
− Internal 40 kHz RC oscillator (LICK)

Analog
− 3 x 12-bit 5.33 MSPS A/D converters, up to 24 input
channels, 12-bit/10-bit/8-bit/6-bit configurable
resolution
− Temperature sensor (V
voltage (V ), V
I N T R
(V
/4)
B A T
− 2 x 12-bit D/A converters

DMA:
− 2 x general-purpose DMAs and 1 x EDMA
− 22 channels in all

Up to 116 Fast I/O Interfaces
2022.11.11
AT32F435/437 Series Reference Manual
®
-M4F MCU+FPU with 256 to 4032 KB Flash, sLib,
®
-M4F CPU with FPU
=25 °C, 2.5 % at T =-40 to
A A
), internal reference
T S
battery voltage monitor
B A T
− All mappable to 16 external interrupt vectors
− Almost 5 V-tolerant

Up to 18 Timers (TMR)
− Up to 13 x 16-bit timers + 2 x 32-bit timers, each with 4
IC/OC/PWM or pulse counter channels
− 2 x Watchdog timers (WDT and WWDT)
− SysTick timer: 24-bit downcounter

ERTC: enhanced RTC with auto wakeup, alarm,
subsecond precision, hardware calendar and
calibration feature

Up to 23 communication interfaces
− Up to 3 x I
2
C interfaces (SMBus/PMBus)
− Up to 4 x USARTs/4 x UARTs (ISO7816 interface, LIN,
IrDA capability, modem control and RS485 drive enable,
with interchangeable TX/RX)
− Up to 4 x SPIs (36 Mbit/s), all with I
2
multiplexed, I S2/ I
− Up to 2 x CAN interfaces (2.0B Active)
− Up to 2 x OTG FS controllers supporting crystal-less
− Up to 2 x SDIO interfaces
− Infrared transmitter (IRTMR)
− 10/100M Ethernet MAC with dedicated DMA and
SRAM(4 Kbytes): IEEE1588 hardware support, MII/RMII
available (For AT32F437 only)

8~14 bit parallel digital camera interface (DVP)

CRC Calculation Unit

96-bit ID (UID)

Debug mode
− SWD and JTAG interfaces

Temperature range: -40 to 105℃

Packaging
− LQFP144 20 x 20 mm LQFP100 14 x 14 mm
− LQFP64 10 x 10 mm
− QFN48 6 x 6 mm
 List of Models
Internal Flash
AT32F435ZMT7, AT32F435VMT7
AT32F435RMT7, AT32F435CMT7
4032 KBytes
AT32F435CMU7, AT32F437ZMT7,
AT32F437VMT7 AT32F437RMT7
AT32F435ZGT7, AT32F435VGT7,
AT32F435RGT7 AT32F435CGT7,
1024 KBytes
AT32F435CGU7, AT32F437ZGT7
AT32F437VGT7, AT32F437RGT7
AT32F435ZCT7 AT32F435VCT7
AT32F435RCT7 AT32F435CCT7
256 KBytes
AT32F435CCU7 AT32F437ZCT7
AT32F437VCT7 AT32F437RCT7
Page 1
2
S interface
2
S3 support full-duplex
LQFP48 7 x 7 mm
Model
Rev 2.03
