SC&T HKM02BT User Manual

4K HDMI KVM USB/RS232/IR/Analog Audio CAT5e Extender over
ITEM NO:

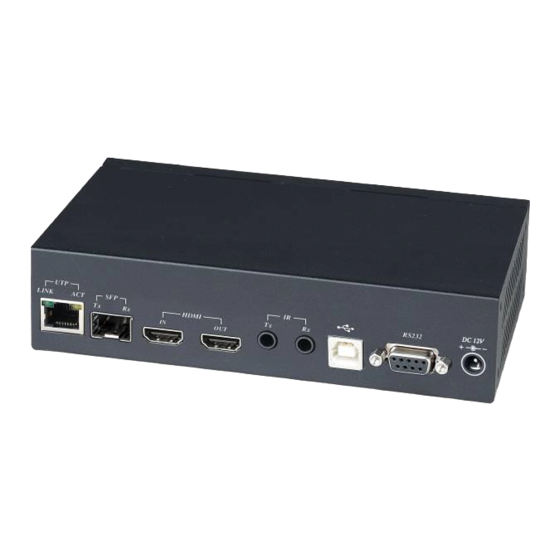

HKM02BT-4K: 4K HDMI KVM over IP/Fiber - Transmitter
HKM02BR-4K: 4K HDMI KVM over IP/Fiber – Receiver
HKM02BPT-4K: 4K HDMI KVM over PoE - Transmitter
HKM02BPR-4K: 4K HDMI KVM over PoE – Receiver
HKM02BT: 1080p HDMI KVM over IP - Transmitter
HKM02BR: 1080p HDMI KVM over IP – Receiver
Features:
 Extend and distribute 4K HDMI signal with USB, bi-directional RS232/IR, and analog audio signals over LAN.
 Supports resolutions up to 4K@30Hz Ultra HD.
 HDCP 2.2 compliant.
 Transmission range up to 150M over CAT5e/CAT6.
 Support SFP optical transceiver, single mode transmission distance up to 60KM.
 Support Windows based management software, using PC for easy setting input/output link.
 Support Android/iOS APP for channel select and management.
 Support IR remote control or front panel button for channel select and management.
 Support up to 8x16 video wall.
 Support output resolution up/down scale: 2160p 30Hz input to 1080p 60Hz output.
 Supports full duplex Bi-Directional RS232 communication (115200 MAX) by control software on a PC, or other
automated control system to control devices attached to the extenders.
 Built in RS232 distribution function, to send RS232 signal from one TX to multiple RX.
 RS232 port support external Keypad/Console control. (Custom made available)
 Support Dolby TrueHD®, and DTS-HD Master™ ,LPCM audio up to 7.1 channels 192Khz
 Built in Bi-Directional analog audio transmission (only in unicast mode).
 Built in Bi-Directional IR extension.
 HKM02BT-4K and HKM02BPT-4K Transmitter unit built in HDMI local loop output.
 HKM02BR-4K and HKM02BPR-4K Receiver unit with 4 ports USB devices (2 port USB 1.1 front & 2 Port USB
2.0 rear), to extend USB peripheral devices, such as flash disk, hard disk, keyboard, mouse, etc.
 HKM02BPT-4K and HKM02BPR-4K support both 802.3af and power adaptor as power input.
 Use IGMP and Jumbo frame protocol Gigabit Switch Hub to do HD signal distribution and transmission.
 Support point to point and multiple source devices to multi-display connections via Gigabit network switch with
Unicast or Multicast mode.
 Support total of transmitter unit up to 1000 pieces, receiver unit over 60000 pieces based on the number of
ports on your network switch.
 Perfect for large scale remote HD content access and security monitoring systems, digital signage applications.
 Option Model: 1U 19" Rack Mounting Panel
TPN002BT: to fit 2 pcs HKM02BT-4K. TPN003BT: to fit 3 pcs of HKM02BT.
IP Series
