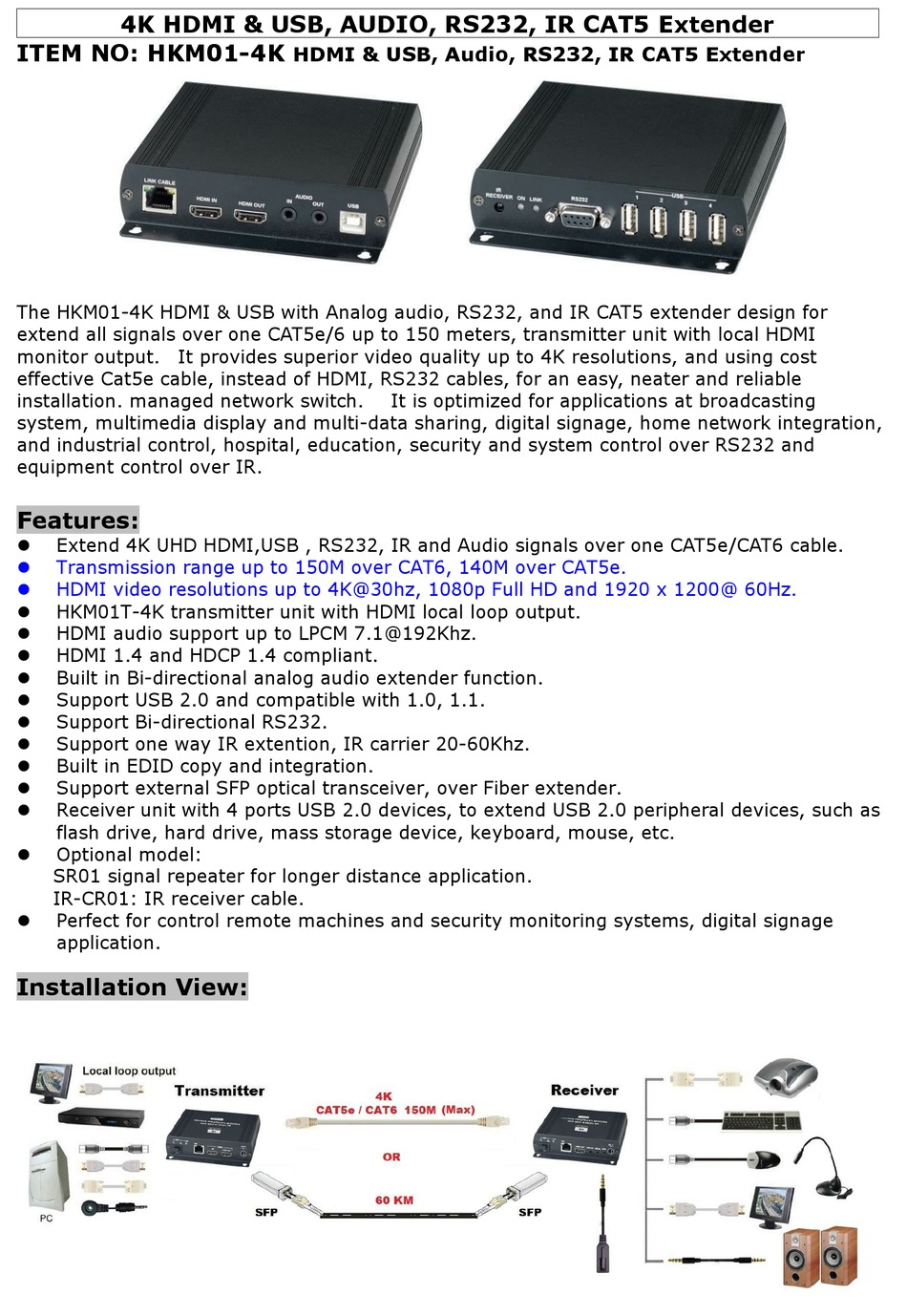

SC&T HKM01T-4K Manual

4K HDMI & USB, AUDIO, RS232, IR CAT5 Extender
ITEM NO: HKM01-4K
The HKM01-4K HDMI & USB with Analog audio, RS232, and IR CAT5 extender design for
extend all signals over one CAT5e/6 up to 150 meters, transmitter unit with local HDMI
monitor output. It provides superior video quality up to 4K resolutions, and using cost
effective Cat5e cable, instead of HDMI, RS232 cables, for an easy, neater and reliable
installation. managed network switch.
system, multimedia display and multi-data sharing, digital signage, home network integration,
and industrial control, hospital, education, security and system control over RS232 and
equipment control over IR.
Features:
Extend 4K UHD HDMI,USB , RS232, IR and Audio signals over one CAT5e/CAT6 cable.

Transmission range up to 150M over CAT6, 140M over CAT5e.

HDMI video resolutions up to 4K@30hz, 1080p Full HD and 1920 x 1200@ 60Hz.


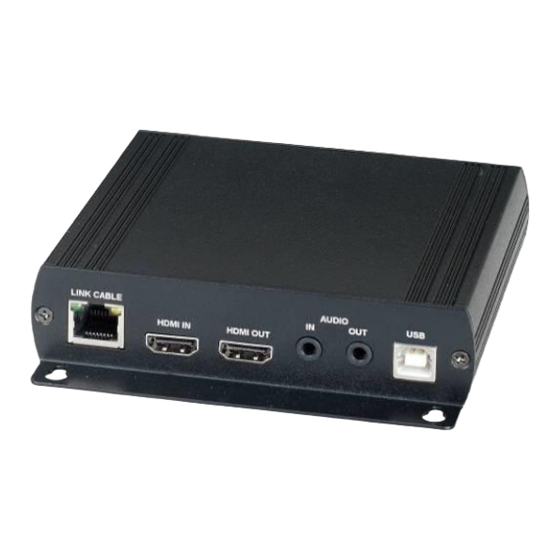

HKM01T-4K transmitter unit with HDMI local loop output.

HDMI audio support up to LPCM 7.1@192Khz.

HDMI 1.4 and HDCP 1.4 compliant.

Built in Bi-directional analog audio extender function.

Support USB 2.0 and compatible with 1.0, 1.1.

Support Bi-directional RS232.

Support one way IR extention, IR carrier 20-60Khz.

Built in EDID copy and integration.

Support external SFP optical transceiver, over Fiber extender.

Receiver unit with 4 ports USB 2.0 devices, to extend USB 2.0 peripheral devices, such as

flash drive, hard drive, mass storage device, keyboard, mouse, etc.
Optional model:

SR01 signal repeater for longer distance application.
IR-CR01: IR receiver cable.
Perfect for control remote machines and security monitoring systems, digital signage

application.
Installation View:
HDMI & USB, Audio, RS232, IR CAT5 Extender
It is optimized for applications at broadcasting
