SC&T HKM01-4K-KS Manual

HDMI & USB 2.0 KVM with Audio/RS232/IR Extender
ITEM NO: HKM01-4K－KS
HDMI & USB with Audio, RS232,IR Fiber Extender with Optical
Transceiver

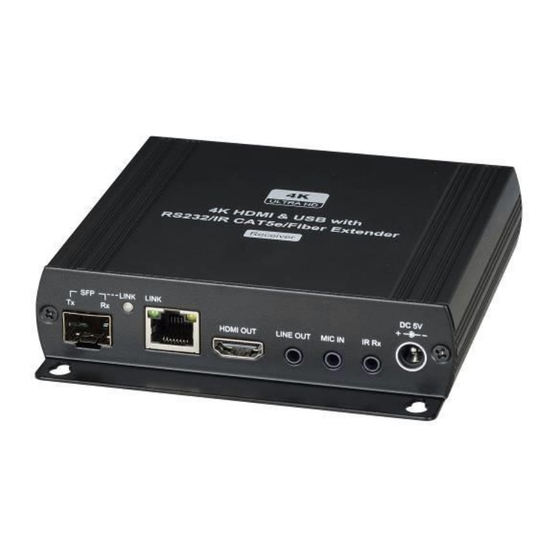

The HKM01-4K-KS HDMI & USB with Analog audio, RS232, and IR CAT5e extender design for
extend all signals over Fiber . Transmitter unit with local HDMI monitor output. It provides
superior video quality up to 4K resolutions, and using Fiber cable for extra longer distance,
instead of HDMI, RS232 cables, for an easy, neater and reliable installation. It is optimized for
applications at broadcasting system, multimedia display and multi-data sharing, digital
signage, home network integration, and industrial control, hospital, education, security and
system control over RS232 and equipment control over IR.
Features:
Extend 4K UHD HDMI, USB, RS232, IR and Audio signals over one CAT5e/CAT6/Fiber

cable.
HDMI video resolutions up to 4K@30Hz, 1080p Full HD and 1920 x 1200@ 60Hz.

Use external SFP Giga module.

Package includes 1G SFP 20KM single mode optical transceiver x 2 units.

Transmission range up to 140M over CAT6, 120M over CAT5e.

HKM01T-4K transmitter unit with HDMI local loop output.

HDMI audio support up to LPCM 7.1@192Khz.

HDMI 1.4 and HDCP 1.4 compliant.

Built in Bi-directional analog audio extender function.

Support USB 2.0 and compatible with 1.0, 1.1.

Support Bi-directional RS232.

Support one way IR extention, IR carrier 20-60 KHz.

Built in EDID copy.

Support external SFP optical transceiver, over Fiber extender.

Receiver unit with 4 ports USB 2.0 devices, to extend USB 2.0 peripheral devices, such as

flash drive, hard drive, mass storage device, keyboard, mouse, etc.
Perfect for control remote machines and security monitoring systems, digital signage

application.
