UM11526
KITFS5600FRDMEVM evaluation board
Rev. 1 — 25 May 2021
Document information
Information
Content
Keywords
FS5600, controller, FET
Abstract
The KITFS5600FRDMEVM is a hardware evaluation tool that allows
performance test of the FS5600.
User manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UM11526 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for NXP Semiconductors UM11526

Summary of Contents for NXP Semiconductors UM11526

  • Page 1 UM11526 KITFS5600FRDMEVM evaluation board Rev. 1 — 25 May 2021 User manual Document information Information Content Keywords FS5600, controller, FET Abstract The KITFS5600FRDMEVM is a hardware evaluation tool that allows performance test of the FS5600.

  • Page 2: Revision History

    UM11526 NXP Semiconductors KITFS5600FRDMEVM evaluation board Revision history Revision history Date Description 20210525 • Initial version UM11526 All information provided in this document is subject to legal disclaimers. © NXP B.V. 2021. All rights reserved. User manual Rev. 1 — 25 May 2021...

  • Page 3: Introduction

    This document is intended for the engineers involved in the evaluation, design, implementation, and validation of FS5600. Finding kit resources and information on the NXP web site NXP Semiconductors provides online resources for this evaluation board and its supported device(s) on http://www.nxp.com. The information page for KITFS5600FRDMEVM evaluation board is at http:// www.nxp.com/KITFS5600FRDMEVM.

  • Page 4: Windows Pc Workstation

    UM11526 NXP Semiconductors KITFS5600FRDMEVM evaluation board 4.3 Windows PC workstation This evaluation board requires a Windows PC workstation. Meeting these minimum specifications should produce great results when working with this evaluation board. • USB-enabled computer with Windows 7 or Windows 10 4.4 Software...

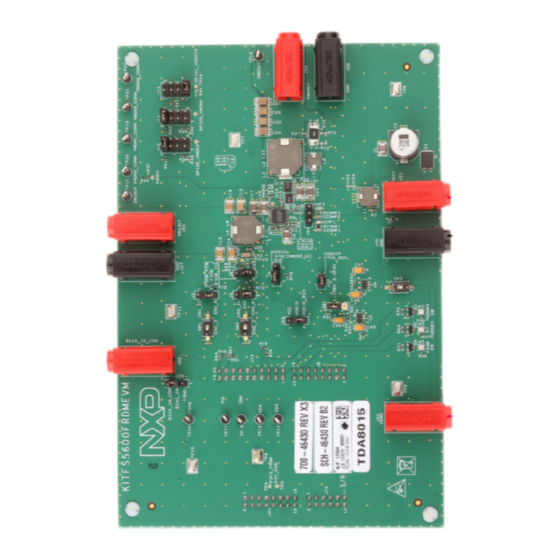

  • Page 5 UM11526 NXP Semiconductors KITFS5600FRDMEVM evaluation board 1. VBAT connector 2. SW1 output 3. SW2 output 4. BIAS_IN input 5. Debug voltage input 6. EN1 and EN2 switches 7. GPIO1/2/3 option selection Figure 1. Evaluation board featured component locations UM11526 All information provided in this document is subject to legal disclaimers.

  • Page 6: Jumpers

    UM11526 NXP Semiconductors KITFS5600FRDMEVM evaluation board 5.2.1 Jumpers Figure 2. Evaluation board jumper/switch locations Table 1. Evaluation board jumper/switch descriptions Name Default Description 2-3 shorted Controls EN1 source • 1-2 shorted → From Freedom board • 2-3 shorted → From onboard switch 2−3 shorted...

  • Page 7: Schematic, Board Layout And Bill Of Materials

    UM11526 NXP Semiconductors KITFS5600FRDMEVM evaluation board Table 1. Evaluation board jumper/switch descriptions ...continued Name Default Description 7−8 shorted GPIO1 selection • 1-2 → Floating • 3-4 → GPO1 • 5-6 → ERRMON1 • 7-8 → VDDOTP (for debug and development) 1−2 shorted BIAS_IN selection •...
  • Page 8 UM11526 NXP Semiconductors KITFS5600FRDMEVM evaluation board 1. Press the RST push button on the Freedom board and connect the USB cable into the SDA port (J5) on the Freedom board. 2. If a new “BOOTLOADER” device appears on the left pane of the File explorer: a.

  • Page 9: Configuring The Hardware For Startup

    UM11526 NXP Semiconductors KITFS5600FRDMEVM evaluation board 5. Freedom board Firmware is successfully loaded. Disconnect and reconnect the USB cable into the USB port. Open the previously installed NXPGUI. The “Start” button on the top-left corner must be activated. 6. If only the NXPGUI firmware needs to be updated, then start from step 4 above. The PC detects FRDM_K82FD.
  • Page 10 UM11526 NXP Semiconductors KITFS5600FRDMEVM evaluation board 5. A configuration window is displayed. Select the kit type and the device silicon version, and then click OK. 6. Click Start to enable the connection to the device. Once the device is connected properly, the “Start”...

  • Page 11: Using The Kitfs5600Frdmevm Evaluation Board

    UM11526 NXP Semiconductors KITFS5600FRDMEVM evaluation board Using the KITFS5600FRDMEVM evaluation board This section summarizes the overall setup. Detailed description is provided in the following sections. 8.1 Modifying the mirror registers on the fly 1. Make sure that the part is turned On with EN1 or EN2 high.

  • Page 12: Legal Information

    NXP Semiconductors. In no event shall NXP product remains with customer. In no event shall NXP Semiconductors, its...
  • Page 13 UM11526 NXP Semiconductors KITFS5600FRDMEVM evaluation board Tables Tab. 1. Evaluation board jumper/switch descriptions ............6 Figures Fig. 1. Evaluation board featured component Fig. 2. Evaluation board jumper/switch locations ..6 locations ............5 Fig. 3. Typical initial configuration ........ 9 UM11526 All information provided in this document is subject to legal disclaimers.

  • Page 14: Table Of Contents

    'Legal information'. © NXP B.V. 2021. All rights reserved. For more information, please visit: http://www.nxp.com For sales office addresses, please send an email to: salesaddresses@nxp.com Date of release: 25 May 2021 Document identifier: UM11526...
