DEMO MANUAL DC2787A
QUICK START PROCEDURE
1mΩ
-
A
V
-
+
V
V
V
IN
-
40V-60V
Load (0~100A)
-
-

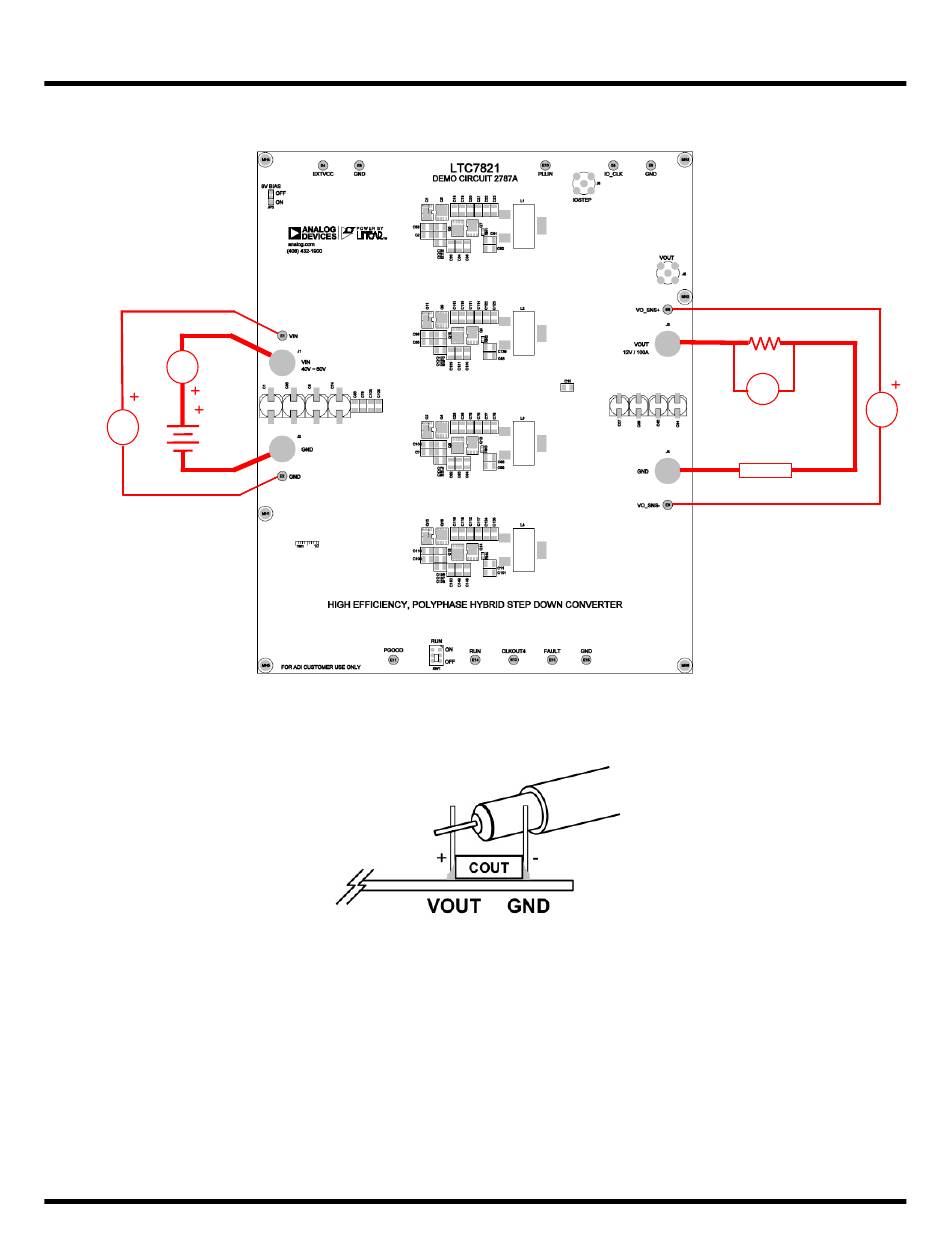

Figure 2. Proper Measurement Equipment Setup
Figure 3. Measuring Output Voltage Ripple
