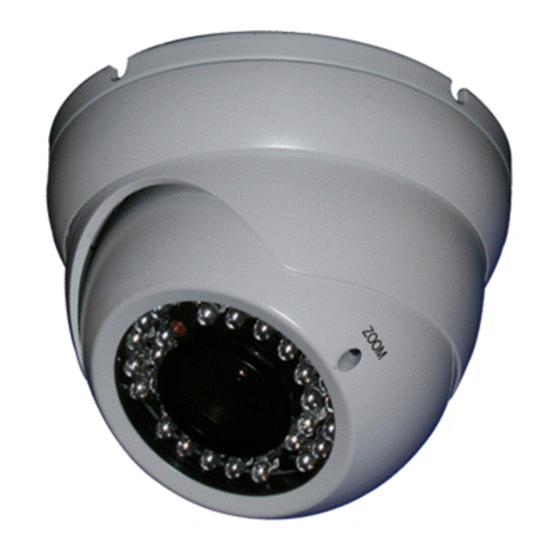

3.5" external adjustable vandalproof eyeball camera

Advertisement

Specifications

Model
VLEDT1W
Pick-up Device
1/3"Panasonic CCD
Effective Pixels (H×V)
NTSC: 768 x 494 PAL: 752 x 582
Sensing Area
4.9mm×3.7mm
Horizontal Resolution
600 TV Lines
Minimum Illumination
0.5 Lux, 0 Lux at IR on
S/N Ratio
More than 48dB
Scanning System
2:1 Interlace
Synchronous System
Internal
Electronic Shutter
1/50s(1/60s)~1/100,000s
IR Distance
IR Leds
36 Pcs 850nm infrared LED
IR status
IR on: under 10Lux, by CDS auto control
Gama Characteristic
Auto Gain Control
White Balance
Video Output
1.0Vp-p composite video, 75Ω
Lens
2.8-12mm
Power/Current
12VDC/ IR on: 400mA, IR off: 100mA
Operating Temperature
14F~122F
Storage Temperature
-4F~140F
30m
0.45
Auto
Auto
VLEDT1W Series Color
Camera
3.5" External Adjustable Vandal-
proof Eyeball Camera
Note:
Before applying power to the cam-
era, please read this UserGuide in detail.
