Front Panel Connectors

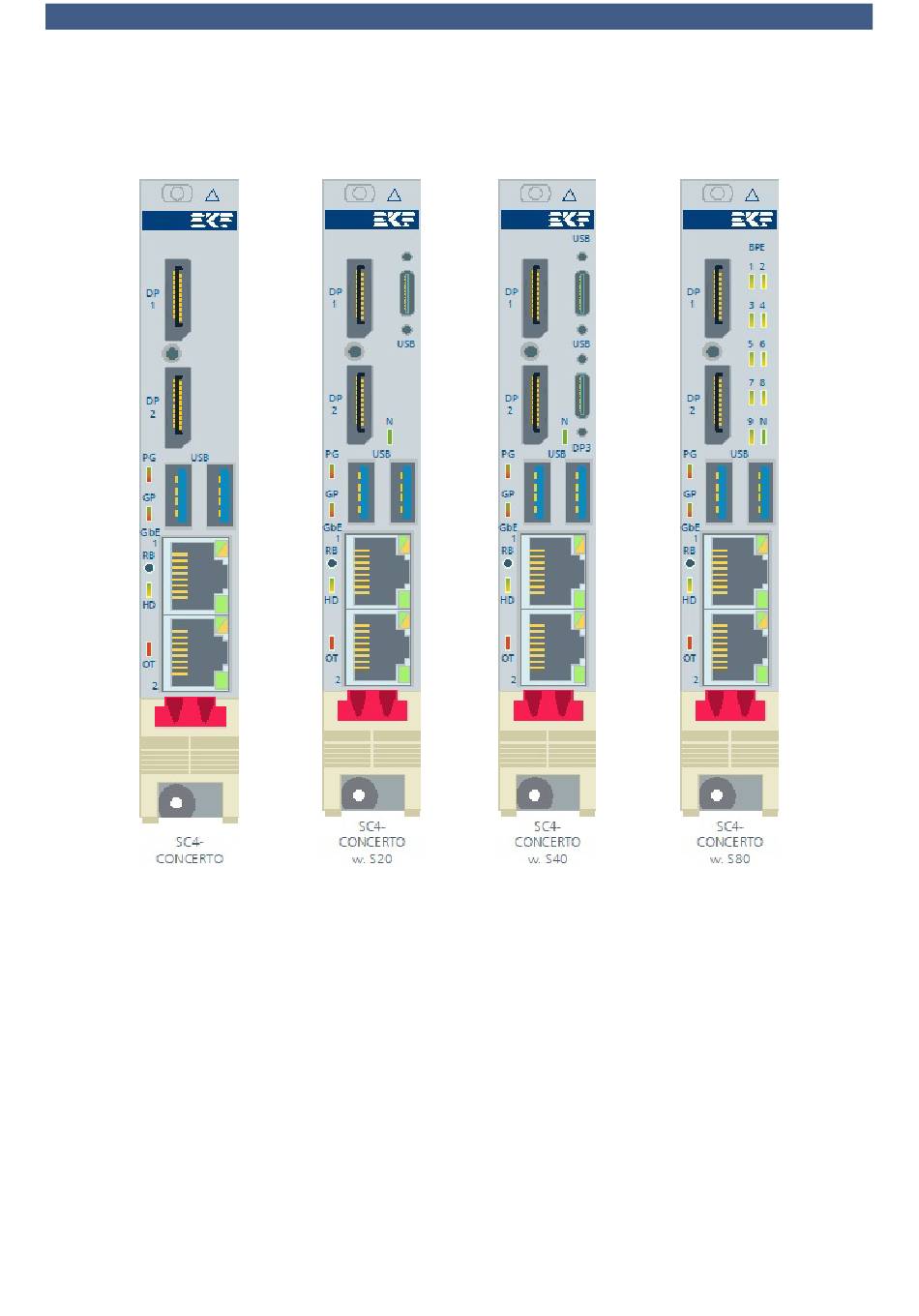

The basic SC4-CONCERTO front panel connectors are illustrated on the left side above . If low profile
mezzanine modules are employed, one or two Type-C receptacles may be available for front I/O in
addition (illustrated on the right side above). Documentation on the Type-C connectors is not
provided in this manual - please refer to the particular mezzanine module in use.
For 8HP/12HP front panel width assemblies together with a side card e.g. SCZ-NVM please refer to the
particular side card documentation.
