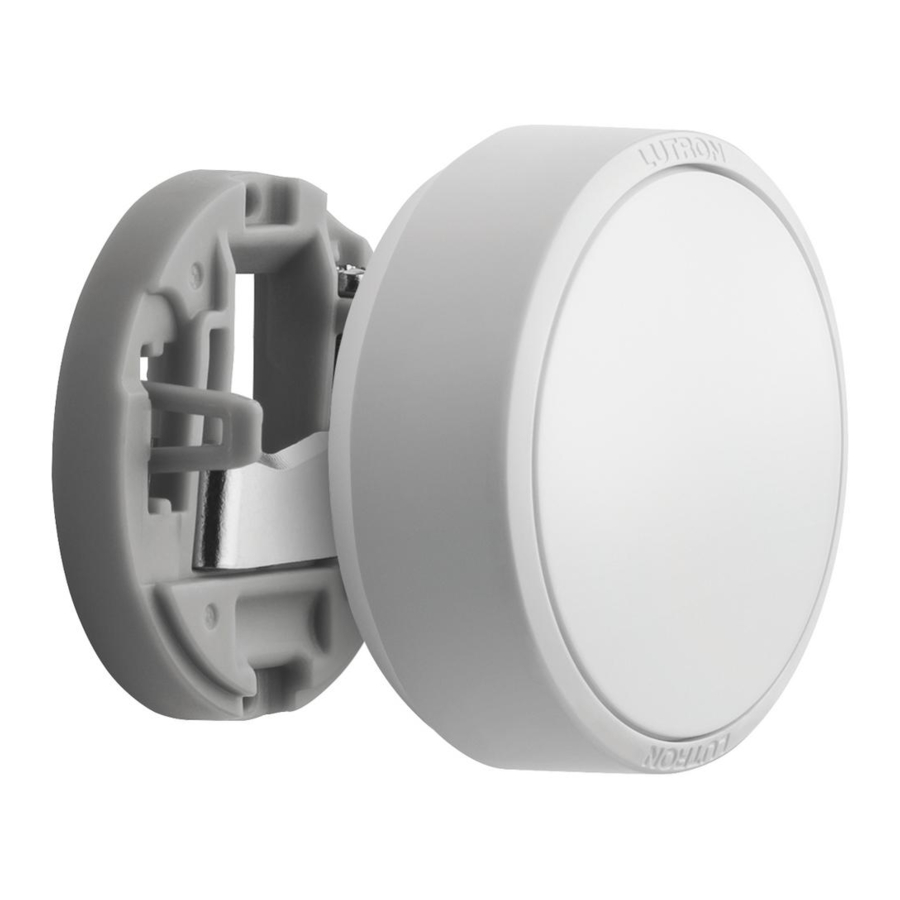

Lutron aurora Z3-1BRL - Always Ready Smart Bulb Dimmer Manual

Required for Installation

Connect

Pair with a smart bulb

If Using a Philips Hue Bridge*

1. Search "PhilipsR HueR" and download the app




2. Follow screen prompts
   Settings > Accessory Setup > Add Accessory > Friends of Hue Switch

If pairing directly to a Philips Hue bulb (no bridge)**

1. Turn bulb OFF and then back ON; this enables bulb pairing for 15 minutes

2.
   Hold button until LED on the unit blinks slowly, ~9 seconds.
   After 6 seconds the bulb will flash, continue to hold. Repeat to add additional bulbs.

* Update to the latest app and Hue bridge software. Only compatible with Philips Hue square-shape bridge V2. Not compatible with round-shape bridge V1.

Mounting to a Toggle Switch

1. Make sure the bulb is ON


2. While the light is ON, place base over the toggle switch as shown


3. Install mounting base *

   While holding the base against the wallplate, securely fasten using a Phillips screwdriver
4. Attach knob to mounting base


Battery Replacement

1. Pull knob straight away from the base


2. Loosen screw and open battery door


3. Slide to remove/install


Risk of fire, explosion, and burns. May result in serious injury or death. DO NOT recharge, disassemble, crush, puncture, heat above 212°F (100°C) or incinerate the battery.

The battery in this device contains Perchlorate material, special handling may apply. For more information, visit www.dtsc.ca.gov/hazardouswaste/perchlorate

Troubleshooting and LED Feedback

Two slow blinks after a press
(Not connected / Bulb is switched off)


Slowly fading in and out
(Connecting is in progess)


Blinks rapidly (Connecting successful)


Red LED blink after a press (Low battery)

Restoring Factory Defaults

To erase device settings and return to factory defaults, tap button quickly 3x. On final tap, continue to hold for 3 seconds or until LED begins to blink. Quickly tap button 3x again.

Customer Assistance

For questions concerning the installation or operation of this product, call Customer Assistance.
Please provide exact model number when calling.
U.S.A. and Canada: 1.844.LUTRON1
Other countries: +1.610.282.3800
Visit www.lutron.com/smartbulbdimmers or www.lutron.com/support for more information.

Ratings

3 V- 10 mA CR2032 battery
Type 1 Action, Pollution Degree 2,
Rated Impulse 71 Vpk
Indoor Use Only 50°F – 104°F (10°C – 40°C)

* Aurora dimmers are a ZigbeeR Certified Product and tested for compatibility with PhilipsR HueR lighting products
