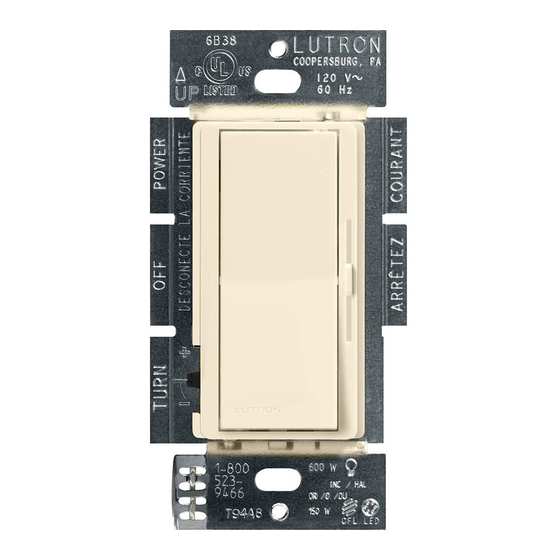

Diva
Diva C
L Dimmer
•
Dimmer for CFL, LED, Halogen, and
Incandescent dimmable bulbs.
Features
• Large paddle switch with a captive linear-slide
dimmer for a standard designer wallplate opening
• HED Technology: Advanced Lutron dimming circuitry
designed for compatibility with most high efficacy
light bulbs
• ULR Listed to control:
— D immable compact fluorescent (CFL) with
integrated ballast
— D immable LED with integrated driver
— H alogen
— I ncandescent
• Low-end adjustment to accommodate a wide range
of bulbs
• 100% factory tested
Application Requirements
• When dimming CFLs or LEDs, only bulbs marked
or rated as DIMMABLE may be used.
• For a complete list of compatible DIMMABLE CFLs
and LEDs please visit www.lutron.com/dimcflled.
For questions call 1.877.346.5338.
• Some DIMMABLE CFLs and LEDs require a
minimum number of bulbs for proper operation. For
details and a list of bulbs, please visit
www.lutron.com/dimcflled.
Model Numbers
DVCL-153P-XX
Gloss Finish, Single pole / 3-way
1,2
DVCL-153PH-XXC
Gloss Finish, Single pole / 3-way
4
DVSCCL-153P-XX
Satin Colors, Single pole / 3-way
1
1
"XX" in the model number represents color/finish code; see "Colors and Finishes" on
next page.
For clamshell packaging, add "H" after "153P".
2
3
For 3-way and 4-way switching, use Claro switches or other mechanical switches.
Clamshell packaged product for Canada.
4
Clamshell packaged product. Available in AL, IV, LA, and WH.
5
Clamshell packaged product for Canada. Available in LA and WH.
6
S P E C I F I C AT I O N S U B M I T TA L
Job Name:
Job Number:
C
L Dimmer
•
* Wallplate sold separately
Packages
DVWCL-153PH-XX
DVWCL-153PH-XXC
3
3
3
Model Numbers:
Wallbox Controls
Includes
1 DVCL-153P-XX and
1,5
1 CW-1-XX (single-gang
faceplate)
1 DVCL-153P-XX-C and
6
1 CW-1-XX (single-gang
faceplate)
369682b 1 11.14.17

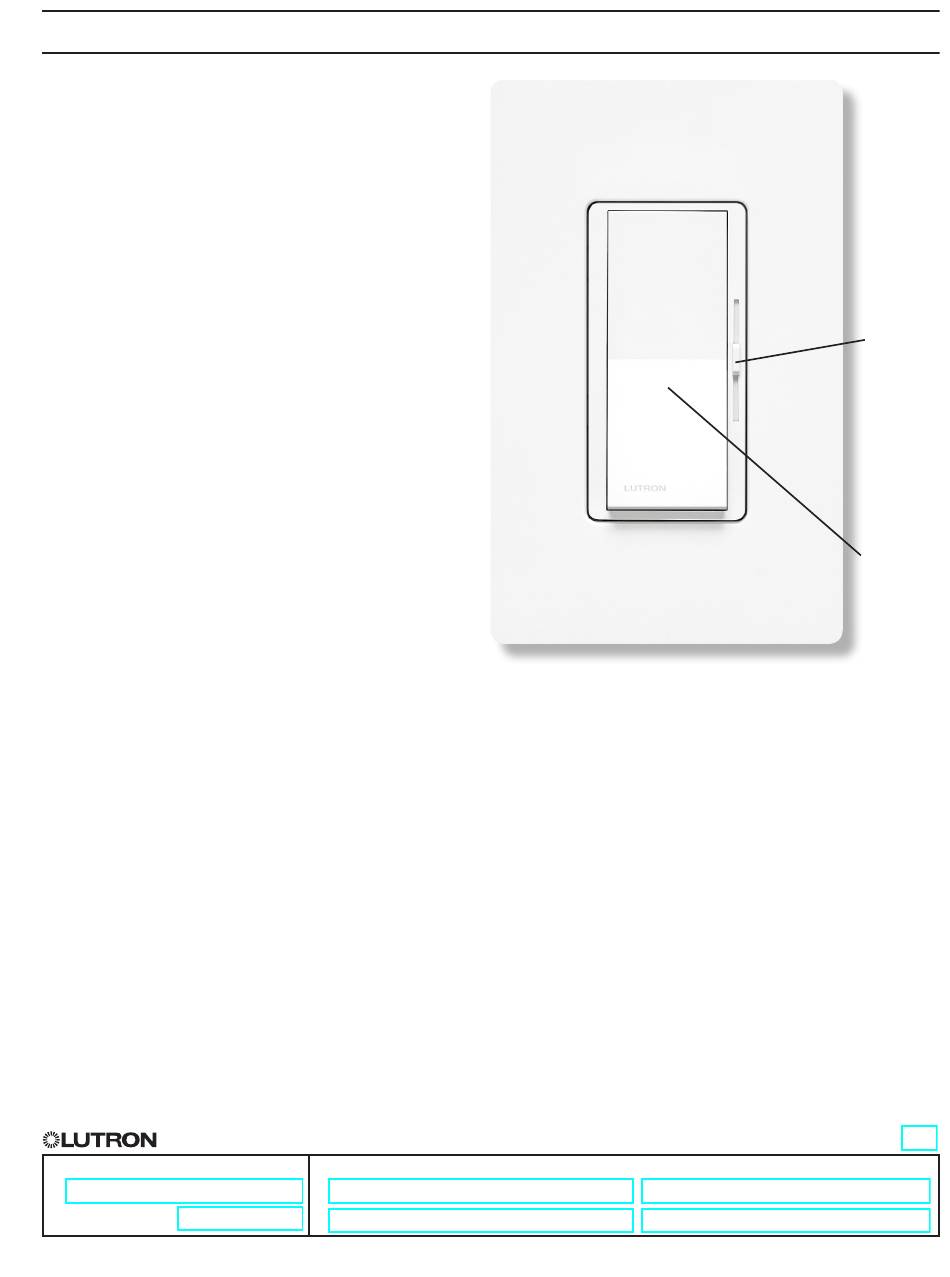

Select
light level
with slider
Switch on
(to selected
light level),
and off
Page
1
Advertisement
Related Manuals for Lutron Electronics Diva C-L DVCL-153P-1 Series
Summary of Contents for Lutron Electronics Diva C-L DVCL-153P-1 Series
- Page 1 Diva L Dimmer Wallbox Controls • 369682b 1 11.14.17 Diva C L Dimmer • Dimmer for CFL, LED, Halogen, and Incandescent dimmable bulbs. Features • Large paddle switch with a captive linear-slide dimmer for a standard designer wallplate opening • HED Technology: Advanced Lutron dimming circuitry designed for compatibility with most high efficacy light bulbs Select • ULR Listed to control: light level — D immable compact fluorescent (CFL) with with slider integrated ballast — D immable LED with integrated driver — H alogen — I ncandescent • Low-end adjustment to accommodate a wide range...
-
Page 2: Specifications
Diva L Dimmer Wallbox Controls • 369682b 2 11.14.17 Specifications Regulatory Approvals Dimensions 0.30 in (7.6 mm) • U LR Listed to US and Canadian safety requirements UL1472 / CSA C22.2 184.1 • N OM Power and Ratings 4.69 in 2.75 in • 120 V~ 60 Hz (119 mm) (70 mm) • 150 W dimmable CFL/LED or • 600 W Incandescent/Halogen or • Mixed bulb type per Multigang and Mixed Bulb Type Ratings table (see page 3) - Page 3 Diva L Dimmer Wallbox Controls • 369682b 3 11.14.17 Multigang and Mixed-Bulb-Type Ratings When installing more than one Dimmer in the same wallbox, it may be necessary to remove some side sections prior to wiring (see diagram). Removal of Dimmer side sections may reduce maximum wattage, as shown in the chart below. Mixing bulb types (using a combination of CFL/LED, and Incandescent/Halogen bulbs) will also affect the maximum ratings, as shown in the chart below. *EXAMPLE: I f one set of side sections is removed and you have two 24 W CFL bulbs installed (Total CFL Wattage = 48 W), you may add up to 300 W of incandescent or halogen lighting. Do not remove outside sections Each Dimmer has inside Middle Dimmer has two side sections removed sections removed Total CFL/LED Maximum Allowable Incandescent/Halogen Wattage Wattage Installed (Wattage per bulb x # of bulbs) No sides removed...
-
Page 4: Operation
Diva L Dimmer Wallbox Controls • 369682b 4 11.14.17 Operation (View with wallplate removed) Lever-type Adjustment Dial Switch Slider Adjustment lever Turns lights ON and OFF. Controls light level. Sets low end dimming limit. Up (clockwise) Increases brightness Increases light level Down Decreases light level IMPORTANT: Set slider to bottom before adjusting dimming range. -
Page 5: Wiring Diagrams
Diva L Dimmer Wallbox Controls • 369682b 5 11.14.17 Wiring Diagrams Single-Pole Wiring Dimmer Line/ Black Red/White 120 V~ Lighting 60 Hz Load Green Neutral 3-Way Wiring Dimmer Dimmer Load Side Line Side 3-Way 3-Way Dimmer Switch Switch Dimmer Line/ Line/ Black Black...
