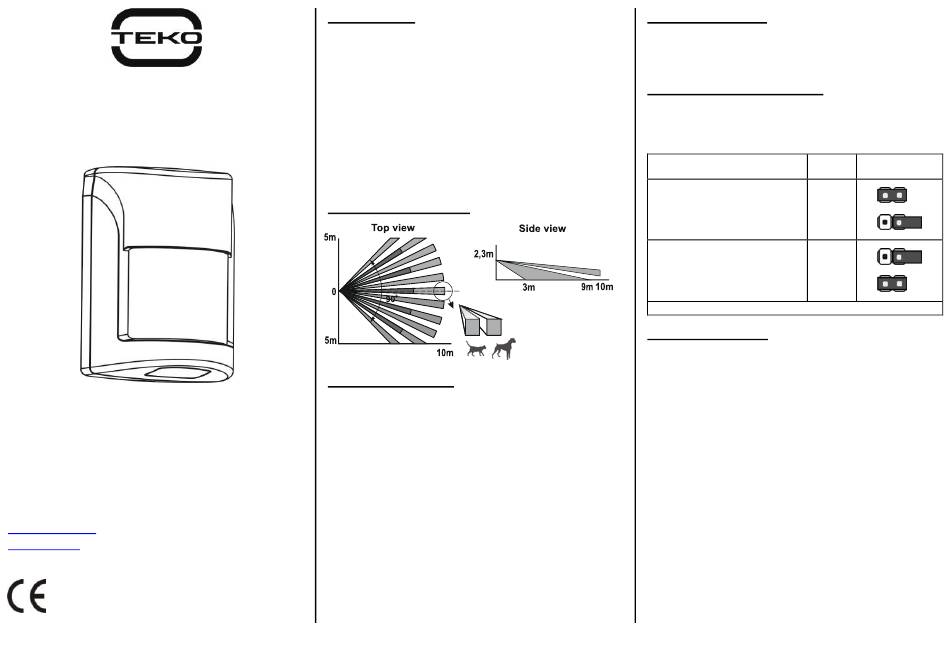

teko Astra-5121 User Manual

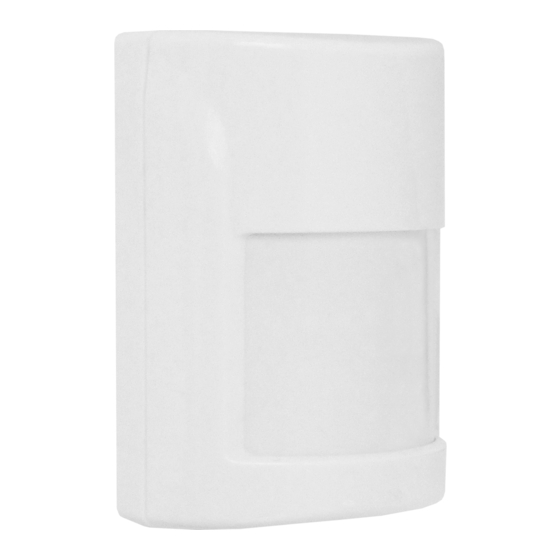

Astra-5121
Wireless motion detector
(Pet immune)
User Guide
Manufacturer:
ZAO NTC TEKO
420108, Russia, Kazan,
Gafuri str., 71
Tel.:+7(843) 528-03-69
export@teko.biz
www.teko.biz
Made in Russia
Rev. 5121-v4_5_instr_en
1 FUNCTION
The detector is designed to detect intrusion into the
protected area, generate an alarm notification and
transmit via radio to the receiver Astra-812 Pro, Astra-
WE 433 or Security hub.
The detector is insensitive to pets of up to 20 kg
weight.
The detector provides measurement and transmission
via radio (at intervals of 12 sec.) of the following
parameters:
a) residual capacity of the battery with display in the
event log when the values of 30, 20, 10% are reached;
b) ambient temperature.
2 DETECTION ZONE
3 SPECIFICATIONS
Range of detectable
moving speed, m/sec ............................. from 0.3 to 3.0
Wireless coverage range (line-of-sight), m .............. 300
Operating frequency range, MHz ............................. 433
Power supply voltage, V ......................... from 2.2 to 3.0
Overall dimensions, mm ............................ 70 × 51 × 42
Operating Conditions
Temperature range, °С ....................... from - 10 to + 50
Relative air humidity, % ......................... up to 98 at + 40 °С
without moisture condensation
4 DELIVERY SET
Detector delivery set includes: dowel – 2 pcs., screw –
2 pcs., battery (CR123A, 3 V) - 1 pc. (installed), jump-
ers – 2 pcs. (installed), user guide – 1 copy.
5 MODES OF OPERATION
Setting an operating mode of the detector and
indication of notifications is possible within 10
minutes after battery insertion!
Mode Plug
Mode 2* (compatible with
Security Hub)
Rmod
Mode 1
Frequency 1 (433,42 МГц)*
(compatible with Security Hub)
Lit
Frequency 3 (434,42 МГц)
* factory setting
6 REGISTRATION
ATTENTION!
When registering, the operating mode of the radio and
the operating frequency of the detector and the wireless
network must match.
1) Create a wireless network in accordance with the
Manual for configuring the receiver.
2) Open detector's cover.
3) Use the jumpers to set the required radio operation
mode and the operating frequency of the detector in
accordance with the wireless network parameters.
4) Start registration procedure on the receiver according
the Manual. Registration starts for 45-60 sec.
5) Activate the battery by pulling out the protective
strip or re-install the battery.
In case of unsuccessful registration, remove the
battery and repeat procedure. Before installing it on
Jumper
