teko Astra-531 AC User Instruction

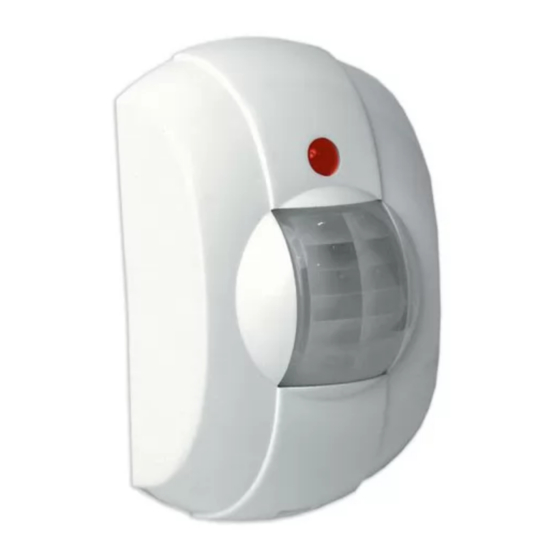

Astra-531 Ver.AC
Acoustic Surface Glass Break
Detector
User Instruction*
Sales: Warranty service and
Controlex GmbH technical support:
TEKO-TD
Philosophenweg 31-33 Prospekt Pobedy str. 19
47051 Duisburg,Germany 420138 Kazan, Russia
+49 (0) 203/393 91 188 +7(843) 261-55-75
info@controlex.eu support@teko.biz
www.controlex.eu www.teko.biz
Made in Russia
Rev. 531-akv1_0_instr_EN
1 FUNCTION
The detector is designed to detect destruction
of glasses, glazed structures of enclosed area
and generate an alarm notification by opening
of signaling relay contacts.

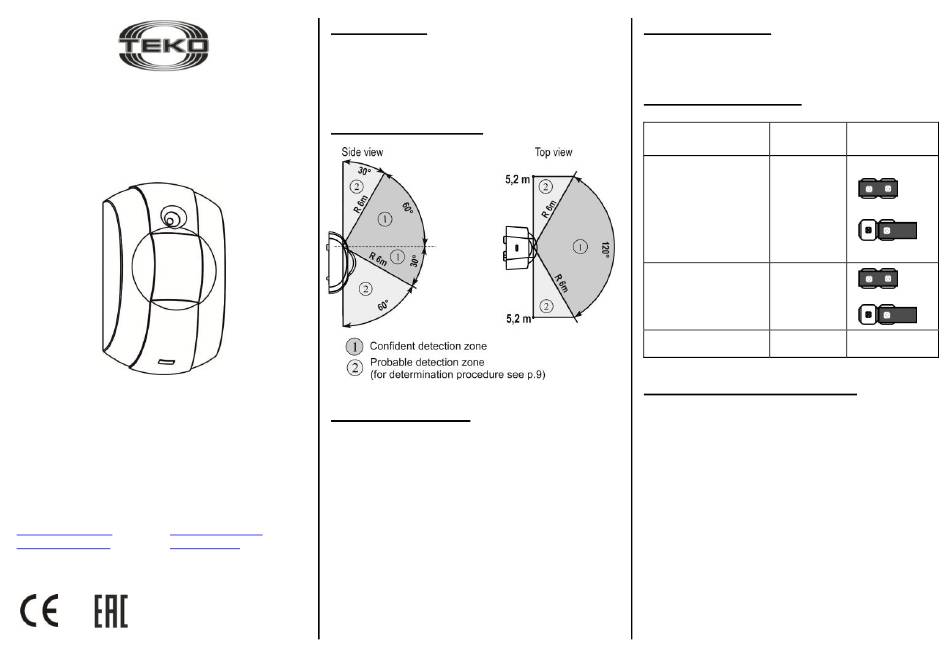

2 DETECTION ZONE
3 SPECIFICATIONS
Maximal detection range, m ............................ 6
Operating frequencies:
first, Hz .............................................. 6000±100
second, Hz ............................................. 150±10
Power supply voltage, V .................. from 8 to 15
Current consumption, mA, max ......................18
Overall dimensions, mm ..................... 62×37×29
Operating Conditions
Temperature range, °С ............from - 20 to + 50
Relative air humidity, % ......... up to 95 at + 35 °С
Without moisture condensation
4 DELIVERY SET
Delivery set contains holders and fasteners
(dowel – 2 pcs., screw – 2 pcs.).
5 OPERATING MODE
Plug
Operating mode
name
High sensitivity of
AC-channel
GB
Normal sensitivity
of
AC-channel
"Alarm memory"
ON
Mem
"Alarm memory"
OFF
AC-channel test Mem
6 INSTALLATION LOCATION
1) Recommended installation height is at least
2m and at a distance not more than 6m from
the most distant spot of protected
2) Installation on ceiling, on a wall, in window
openings and between window frames is al-
lowed.
3) The detector cannot be used in premises
with high level of acoustic interference.
4) Alarm loop and power supply wires should
be located far from power cables.
Jumper
position
See par. 9
glass.
