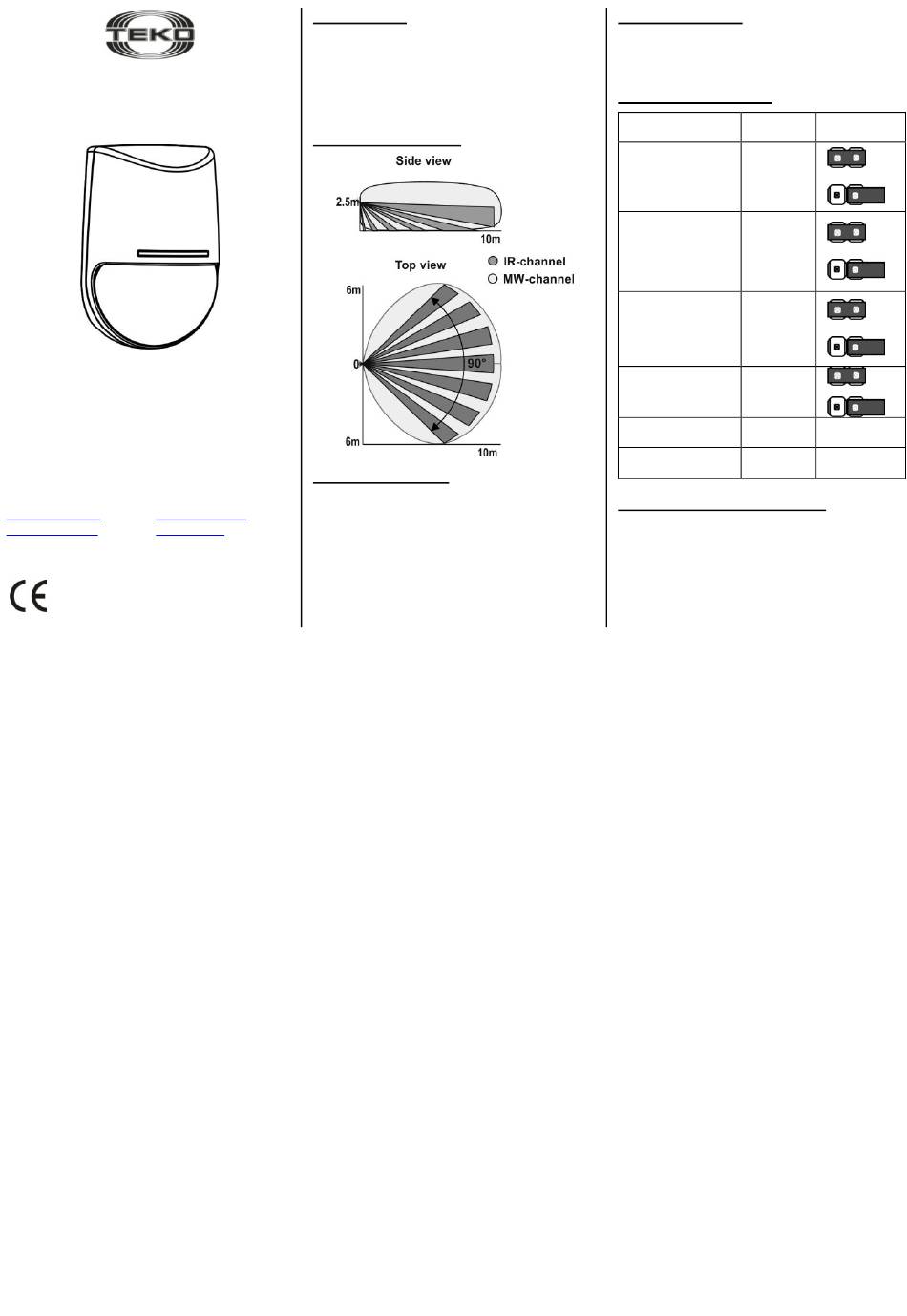

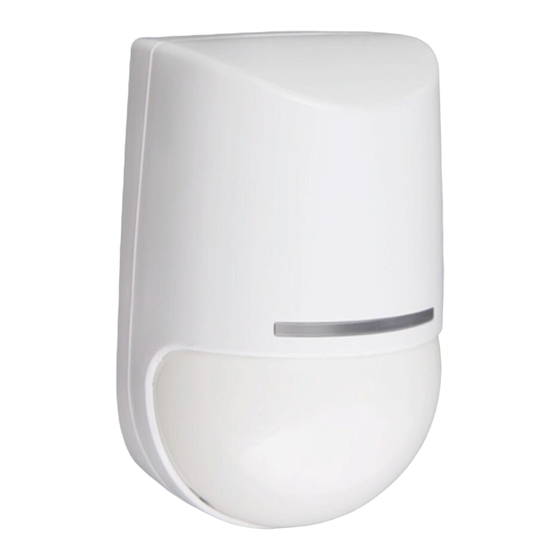

teko Astra-551 Quick Start Manual

Astra-551
Combined Volumetric
Detector
User Instruction*
Sales: Warranty service and
Controlex GmbH technical support:
TEKO-TD
Philosophenweg 31-33 Prospekt Pobedy str. 19
47051 Duisburg,Germany 420138 Kazan, Russia
+49 (0) 203/393 91 188 +7(843) 261-55-75
info@controlex.eu support@teko.biz
www.controlex.eu www.teko.biz
Made in Russia
Rev. 551-v1_1_instr_EN
1 FUNCTION
The detector is intended for detection of
unauthorized access into an enclosed area, and
generation of an alarm notification by opening
contacts of dedicated signaling relay if signals
are present in both detection channels - infrared
and microwave (IR and MW).
2 DETECTION ZONE
3 SPECIFICATIONS
Range of detected
moving speed, m/s ..................... from 0.3 to 3.0
Power supply voltage, V .................. from 8 to 15
Current consumption, mA, max ......................16
Overall dimensions, mm ............. 106.5×72×51.5
Operating Conditions
Temperature range, °С ............from - 30 to + 50
Relative air humidity, % .......... up to 95 at + 35 °С
Without moisture condensation
4 DELIVERY SET
Delivery set contains holders and fasteners
(bracket – 1 pcs., dowel – 2 pcs., screw – 2
pcs.), sealing material – 1 pcs.
5 OPERATING MODE
Plug
Operating mode
name
Frequency shift
ON
Freq
Frequency shift
OFF
"Alarm memory"
ON
Mem
"Alarm memory"
OFF
High detectability
Mode
Normal detecta-
bility
Indication ON
Ind
Indication OFF
MW-channel
Mem
test
PIR-channel
Ind
test
6 INSTALLATION LOCATION
1) Recommended installation height is 2.2-2.5 m.
2) Install detector on bearing walls and carri-
ers.
3) Alarm loop and power supply wires should
be located far from power cables.
Jumper
position
See par. 9
See par. 9
