Astra-5131 ver. A

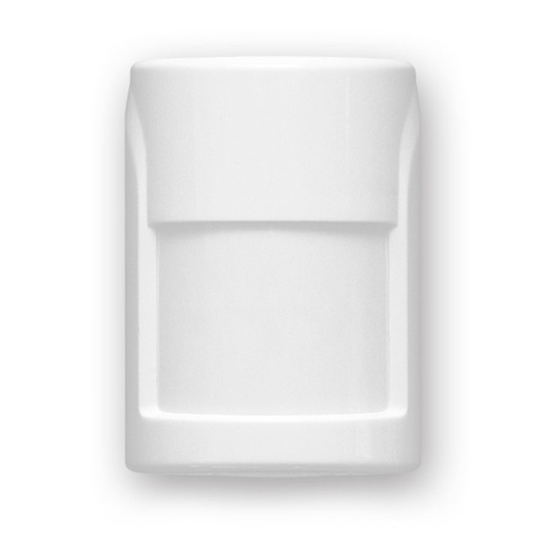

Wireless Optic-Electronic
PIR Motion Detector
User Guide
Manufacturer:
TEKO-TD
420138 Kazan, Russia
Prospekt Pobedy str. 19
Tel.:+7(843) 528-03-69
export@teko.biz
security-hub.ru/en
Made in Russia
Rev. 5131-av4_0_instr_en
1 FUNCTION
The detector is intended for detection of an intrusion
into a secure space of an enclosed area, forming an
alarm notification and transmitting alarm signal to the
Security Hub via radio.
The detector provides measurement and transmission
via radio:
a) the residual capacity of the battery when the
capacity value is 30, 20 and 10%.
b) ambient temperature

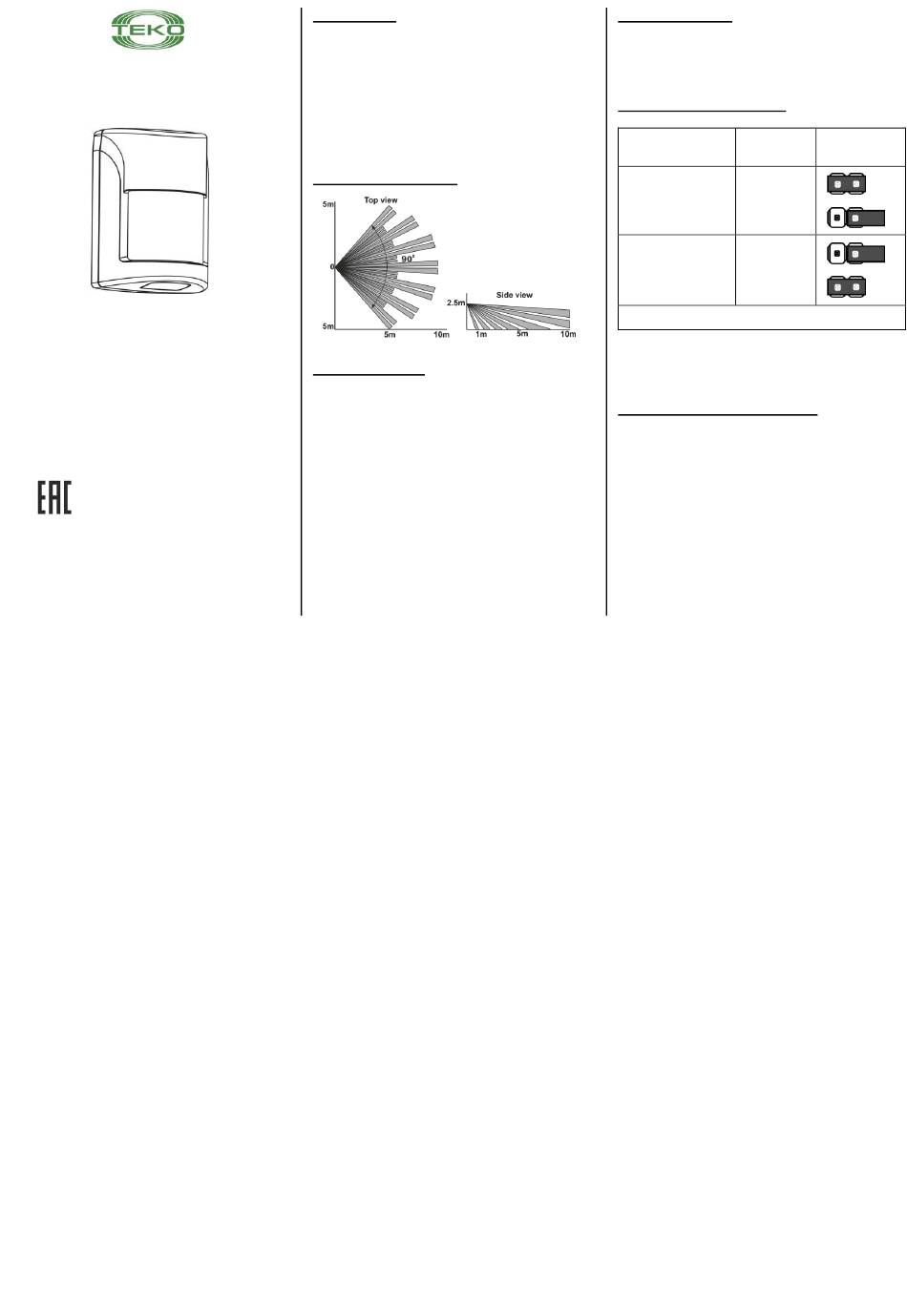

2 DETECTION ZONES
3 SPECIFICATION
Range of detectable
moving speed, m/sec ............................. from 0.3 to 3.0
Wireless coverage range
(line-of-sight), m ....................................................... 100
Operating frequency range, MHz ............................. 433
Power supply voltage, V ......................... from 2.2 to 3.0
Overall dimensions, mm ...........................
Operating Conditions
Temperature range, °С ....................... from - 20 to + 50
Relative air humidity, % ....................... up to 98 at + 40 °С
without moisture condensation
3 DELIVERY SET
Detector delivery set includes: dowel – 2 pcs., screw –
2 pcs., bracket - 1 pcs., 3.0 V battery (CR123A) - 1
pcs., jumpers – 2 pcs.(1 installed), user guide – 1
copy.
5 MODES OF OPERATION
Operation
mode
Mode 2*
(compatible
with Sec. hub)
Mode 1
Freq. letter 1*
Freq. letter 2
*
factory setting
Setting an operating mode of the detector and
indication of notifications is possible within 10
minutes after battery insertion!
6 ASSIGNING TO THE SYSTEM
1) Open cover of detector
2) Start assigning on the mobile or desktop app Secu-
rity Hub. Assigning starts for 45-60 sec.
3) Insert the battery into the detector
70 × 51 × 42
Make sure that the assigning is successful on the
Security Hub mobile app or desktop app. If assigning
is unsuccessful, repeat the procedure.
Plug
Jumper
Rmod
Lit
