teko Astra-531 DC User Instruction

Astra-531 Ver.DC
Dual Channel

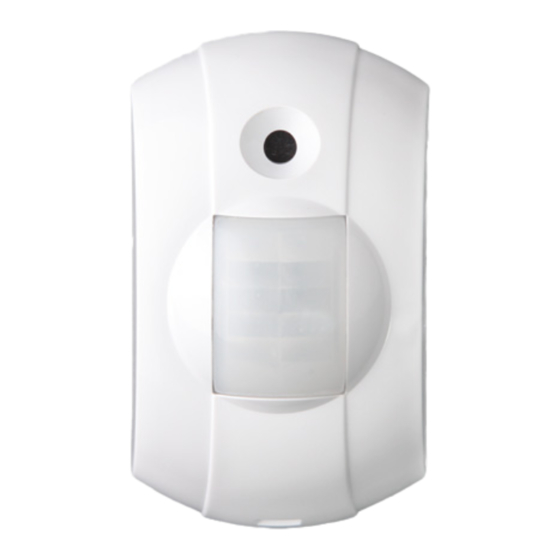

(PIR Motion (Surface Lens)
Detector
User Instruction*
Sales: Warranty service and
Controlex GmbH technical support:
TEKO-TD
Philosophenweg 31-33 Prospekt Pobedy str. 19
47051 Duisburg,Germany 420138 Kazan, Russia
+49 (0) 203/393 91 188 +7(843) 261-55-75
info@controlex.eu support@teko.biz
www.controlex.eu www.teko.biz
Made in Russia
Rev. 531-dcv1_0_instr_EN
1 FUNCTION
The detector is intended for detection of
unauthorized access into an enclosed area,
detection of
constructions of
generation of an alarm notification by opening
contacts of dedicated alarm
+
GB)
2 DETECTION ZONE
3 SPECIFICATIONS
Range of detected
moving speed, m/s ..................... from 0,3 to 3,0
Power supply voltage, V .................. from 8 to 15
Current consumption, mA, max ......................18
Overall dimensions, mm ..................... 62×37×29
glass breaking of glazed
an enclosed area and
relay.
Operating Conditions
Temperature range, °С............ from - 20 to + 50
Relative air humidity, % ......... up to 95 at + 35 °С
Without moisture condensation
4 DELIVERY SET
Delivery set contains holders and fasteners
(dowel – 2 pcs., screw – 2 pcs., bracket - 1 pcs.),
jumper – 2 pcs.
5 OPERATING MODE
Operating Plug
mode
name
High sensitivity
of AC-channel
GB
Normal sensitivi-
ty of AC-channel
High
detectability of
IR channel
PIR
Normal
detectability of
IR channel
"Alarm memory"
ON
Mem
"Alarm memory"
OFF
AC-channel
Mem
TEST
Jumper
position
See par. 9
