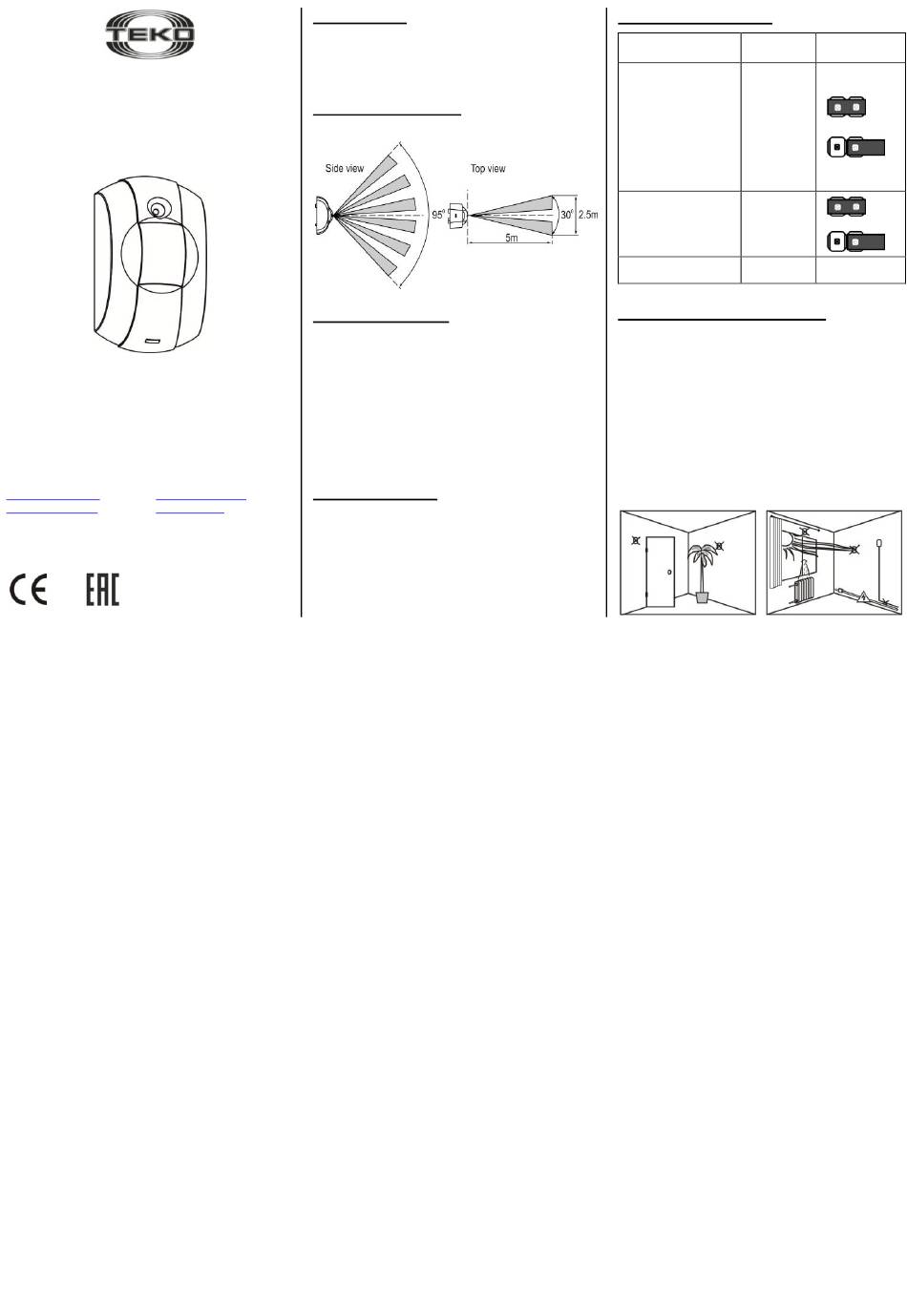

teko Astra-531 PIR User Instruction

Astra-531 Ver.PIR
(Surface Lens)
Optic-Electronic PIR Motion
Detector
User Instruction*
Sales: Warranty service and
Controlex GmbH technical support:
TEKO-TD
Philosophenweg 31-33 Prospekt Pobedy str. 19
47051 Duisburg,Germany 420138 Kazan, Russia
+49 (0) 203/393 91 188 +7(843) 261-55-75
info@controlex.eu support@teko.biz
www.controlex.eu www.teko.biz
Made in Russia
Rev. 531-ikv1_0_instr_EN
1 FUNCTION
Detector is intended to detect unauthorized
access into closed protected area, and to
generate an alarm notification by opening of
signaling relay contacts.
2 DETECTION ZONE
3 SPECIFICATIONS
Range of detected
moving speed, m/s ................. from 0,3 up to 3,0
Power supply voltage, V ............. from 8 up to 15
Current consumption, mA, max ......................18
Overall dimensions, mm ..................... 62×37×29
Operating Conditions
Temperature range, °С .............. от - 20 до + 50
Relative air humidity, % ........... up to 95 at + 35 °С
Without moisture condensation
4 DELIVERY SET
Delivery set contains holders and fasteners
(bracket - 1pcs., dowel – 2 pcs., screw – 2
pcs.), jumper – 2 pcs.
5 OPERATING MODE
Plug
Operating mode
name
High detectability
of PIR-channel
PIR
Normal
detectability
of PIR-channel
"Alarm memory"
ON
Mem
"Alarm memory"
OFF
TEST-pass -
6 INSTALLATION LOCATION
1) Recommended installation height is 5 m max.
2) Installation on ceiling, on a wall, in window
openings and between window frames is al-
lowed.
3) Alarm loop and power supply wires should
be located far from power cables.
To eliminate false alarm hazards
It is recommended to close all doors, air-vents,
switch off fans, air-conditioners and other
sources of intense air flows in the room during
protection period.
Not recommended installation locations
Jumper
position
See par. 9
