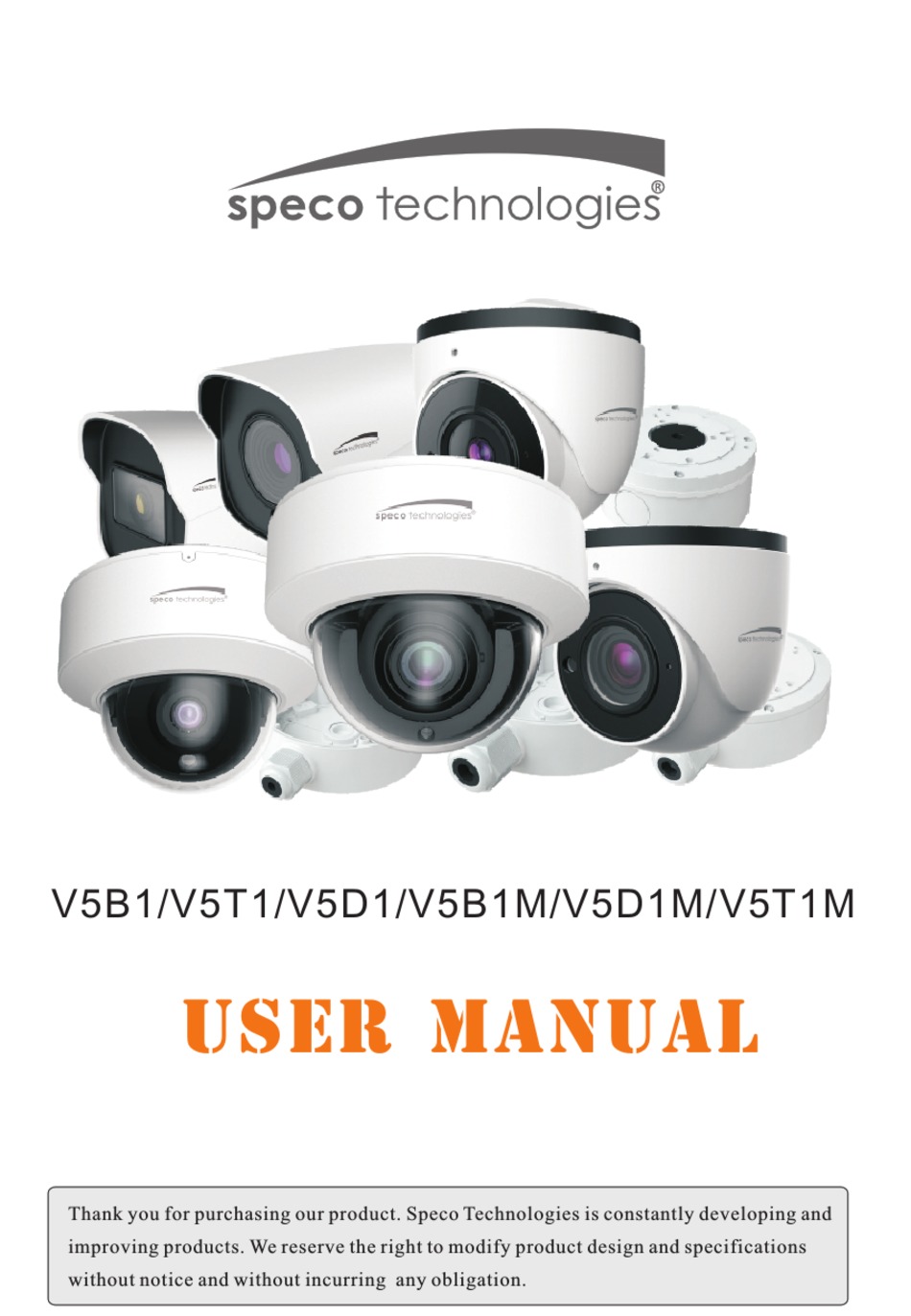

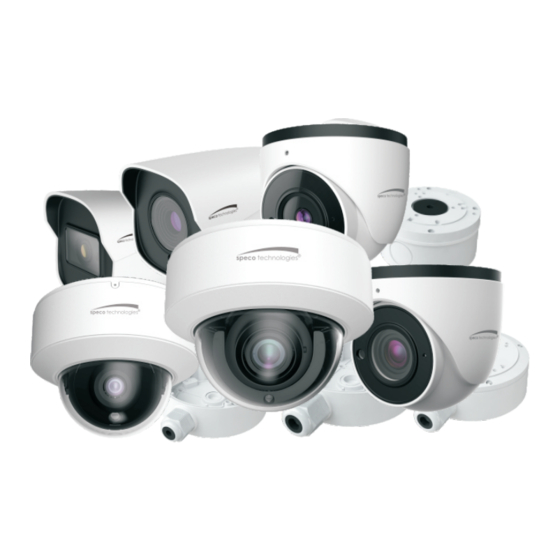

User Manual
Thank you for purchasing our product. Speco Technologies is constantly developing and
improving products. We reserve the right to modify product design and specifications
without notice and without incurring any obligation.
Advertisement
Related Manuals for Speco V5B1
Summary of Contents for Speco V5B1
- Page 1 /V5T1/ V5D1 V5B1M/V5D1M/V5T1M User Manual Thank you for purchasing our product. Speco Technologies is constantly developing and improving products. We reserve the right to modify product design and specifications without notice and without incurring any obligation.
- Page 2 ■ If the product does not work properly, please contact the dealer or where the product was purchased. Speco Technologies is not responsible for any problems caused by improper operation or repair. ■ Keep away from liquid while in use.
-
Page 3: Installation
You’d better install back the lens cover or lower dome less than 4 hours after removing it. The mounting types of cameras are only for reference. ►Mounting for V5B1/V5T1 1. Drill the screw holes and the cable hole on the wall according to the drill template. - Page 4 Rubber plug V5B1 V5B1M 4. Bracket adjustment. Before adjustment, preview the image of the camera on a monitor and then loosen the fixed ring to adjust the view angle of the camera. Tighten the fixed ring after the adjustment. Fixed Ring Fixed Ring 360°...
- Page 5 2. Rotate the trim ring anticlockwise to remove it from the camera. 3. Loosen the screws to open the lower dome. Then route and connect the cables. 4. Secure the camera to the wall with screws provided as shown below. Trim ring Rubber plug * Install it when routing the...
- Page 6 ● Mounting for V5T1/V5T1M 1. Drill the screw holes and the cable hole on the wall according to the drill template . (mm) (mm) 44.2 56.1 Ø91.6 Ø107.7 56.1 38.2 Ø51.0 Ø79.4 Ø4.5 Ø5.0 V5T1 V5T1M Loosen the fixed screw to disassemble the camera. 3.
-
Page 7: Specifications
Specifications Models V5B1 V5D1 V5B1M Specifications Camera Image Sensor 1/2.7" CM S Resolution Image size 2560×1936 Video Output AHD/TVI/CVI/CVBS (*camera comes defaulted to HD-TVI) Image System PAL/NTSC Electronic Shutter Auto; 1/50s~1/100000s(PAL);1/60s~1/100000s (NTSC) IR Distance (feet) 65.6~98.4 65.6~98.4 98.4~164.0 Frame Rate 20fps Min. - Page 8 Models V5D1M V5T1M V5T1 Specifications Camera Image Sensor 1/2.7" CM S Resolution Image size 2560×1936 Video Output AHD/TVI/CVI/CVBS (*camera comes defaulted to HD-TVI) Image System PAL/NTSC Electronic Shutter Auto; 1/50s~1/100000s(PAL);1/60s~1/100000s (NTSC) IR Distance (feet) 98.4~164.0 98.4~164.0 65.6~98.4 Frame Rate 20fps Min.
- Page 9 Model: V5B1/V5B1M/V5D1/V5D1M/V5T1/V5T1M Federal Communications Commission (FCC) Statements This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
