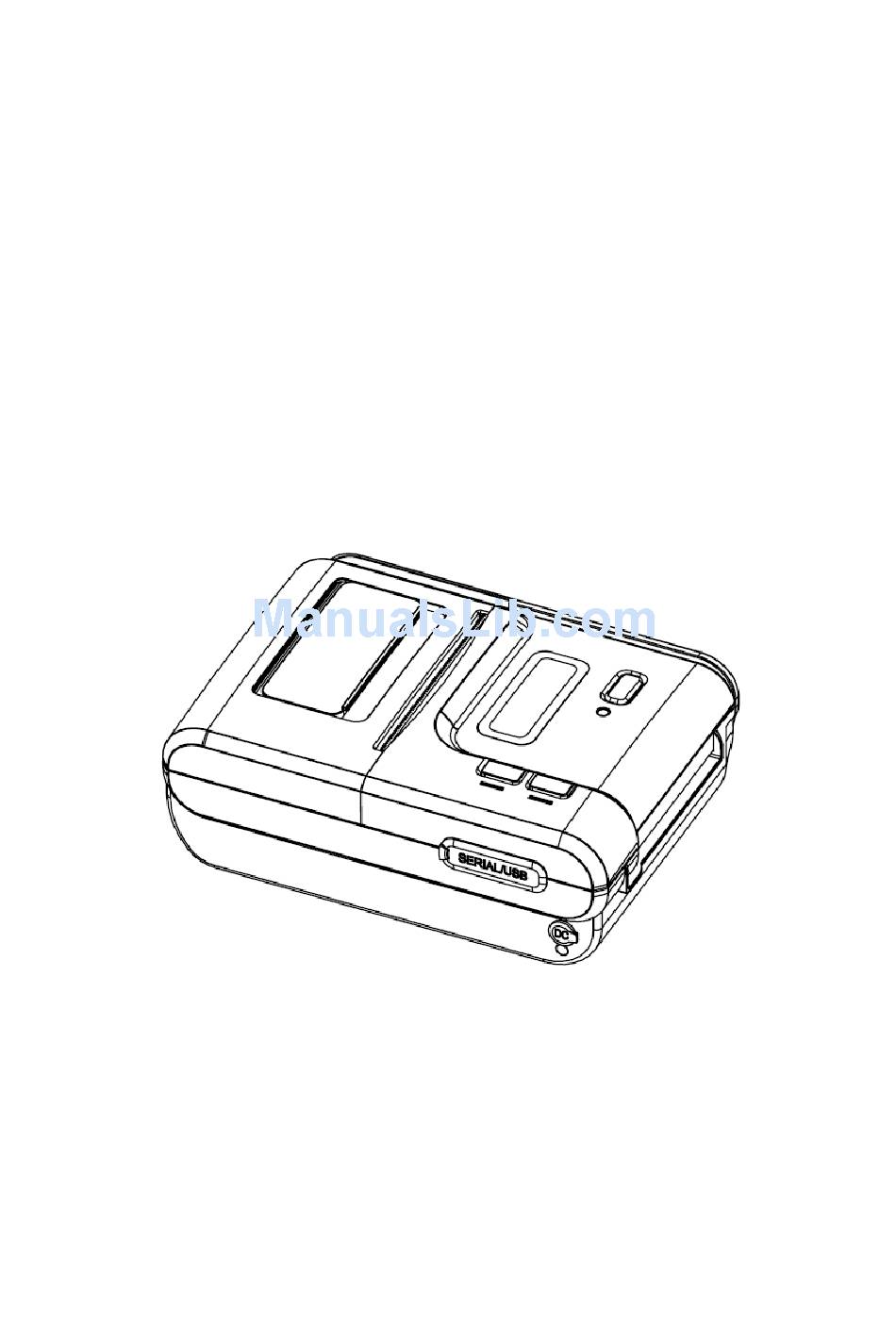

- Page 1 ® SPRT SP-T6 Portable Thermal Printer User’s Manual Beijing Spirit Technology Development Co.,Ltd www.sprinter.com.cn...
-
Page 2: Table Of Contents
Content Operating Precautions ............1 Notes on Safety ..............1 Notes on Using ..............1 Notes on Handling ..............3 Chapter 1 Outer Appearance and Model ......4 1.1 Outer Appearance ............4 1.2 Model Classification ............4 Chapter 2 General Specifications ........5 2.1 Specifications ..............5 2.2 Other Specificaions............8 Chapter 3 Operation ............9 3.1 Using Preparation ............9 3.1.1 Battery Installation ..........9... - Page 3 3.3 Printer Setting .............12 3.4 Printer Interface Connection and Printing ....13 3.4.1 RS-232 Serial ............13 3.4.2 USB Connection ..........13 3.4.3 Bluetooth ..............13 3.4.4 Function of Bluetooth Address Binding ....14 3.5 Indicators and Buzzer ..........14 3.6 Magcard Operation .............16 3.6.1 Functions of the Magcard ........16 3.6.2 Reading Magcard Information ......16 3.7 IC Card Operation .............17 Chapter 4 Other Informations ..........21...
-
Page 4: Operating Precautions
Operating Precautions Please read this chapter carefully before using the printer! Notes on Safety Be sure to use the specified battery and power supply provided by our company. Connection to an improper power supply may cause fire, explosion or damage to the printer. Don‟t put the battery into the fire or water, don‟t disassemble or modify the battery, don‟t be short circuit, otherwise may result in injury or fire even explosion. - Page 5 Water or other liquid should not spill into the printer, also the printer should not be appeared in the rain, or else may cause printer damage. Please do not open the paper case cover when it is printing, otherwise the printer may work improperly. If print with serial interface, should not unplug the interface cable in the course of printing, or else some printing data may be lost.
-
Page 6: Notes On Handling
Be sure to use up the electricity of the battery before charge it, as it can ensure the using life of the battery. Notes on Handling The printer should be placed in such an environment that the temperature is between -20℃ and 60℃, and the relative humidity is between 5% and 95%. -
Page 7: Chapter 1 Outer Appearance And Model
Chapter 1 Outer Appearance and Model 1.1 Outer Appearance 1.2 Model Classification By now, all the models can support serial and USB. SP-RMT6xx XX BT——Serial, USB, Bluetooth Blank——Only Serial and USB SM——Smart IC Card and Magnetic Card, with LCD display M——Only Magnetic Card... -
Page 8: Chapter 2 General Specifications
Chapter 2 General Specifications 2.1 Specifications Printing Method Thermal Line Printing Speed 50mm/sec Print Resolution 8dots/mm,384dots/line,203dpi Effective Printing 48mm Width ANK: 12*24 ,9*24 Chinese: Print Font Character 24 x 24 Character per Line 32/42 Paper Type Thermal paper Paper Width 57.5±... - Page 9 Auto-cutter 50km 1-D:UPC-A UPC-E EAN-13 EAN-8 CODE39 ITF25 CODABAR CODE93 Barcodes CODE128 2-D:PDF417、 QR code、 DATA Matrix Button POWER, FEED, MODE Indicator ERROR, POWER 128X32 Dots FSTN (Blue human-ma LED Backlight) chine printer status(serial, interface Bluetooth, paper out error), Display Content baud rate, speed, density, battery capacity Memory...
- Page 10 baud rate, font, speed, density, password, black mark, Bluetooth etc. Sensor Paper End Sensor Interface RS-232,USB, Bluetooth Power Adaptor DC9V/2A Battery Power 1500mAh/7.4V Battery Duration 90 meters continuous printing Battery Charging Time less than 3 hours Battery One Charge Standby about 100hours Time Drop Duration...
-
Page 11: Other Specificaions
Humidity Storage Humidity 10~90% 2.2 Other Features ● Paper loading method: drop-in easy loading (details please refer to 3.1.2 Paper Installation). ● Black mark localization: available (details please see 4.2 ready printing black mark specification). ● Paper out detection: when paper is out, the FEED indicator blinks, and the buzzer rings once a second,and will show on the screen. -
Page 12: Chapter 3 Operation
These parameters are just for reference, long term usage will cause the capacity decline, and can not ensure the time of printing. Chapter 3 Operation 3.1 Using Preparation 3.1.1 Battery Installation 3.1.2 Paper Installation... -
Page 13: Operation Specifications
3.2 Operation Specifications 3.2.1 Printer On 1, When connect with the external power source, and touch with the printer normally, it will show „Battery Charging‟. If not, or the battery is full, there is nothing on the screen except battery icon. Under this state, press „power‟ button for 1 second, the indicator is on with blue color, when loosen will hear “beep”, this means hardware self-test properly. -
Page 14: Printer Off
on the screen. Under this state, please connect with our technical support. 2. Without the external power source and under the halt state, press the power button for 1 second, the indicator is on with blue color, when loosen will hear “beep”, this means hardware self-test properly, and the printer engages in work. -
Page 15: Battery Charging
Under the normal work state, press [FEED] button, the paper feeding begins, and stop when hold down [FEED] button. When the printer works in black mark node, press [FEED] button, the printer begins to feed paper and stops at the position of black mark. -
Page 16: Printer Interface Connection And Printing
Users can set the printer parameter by using the〈T6 Setting Tools〉 software attaching through computer. The setting including: serial baud rate and data format, black mark setting, language, letterform, print density, bluetooth device name and password(only T6-BT) etc. Regard to the setting method please refer to the<T6 Setting Tools Software Help>... -
Page 17: Function Of Bluetooth Address Binding
The name of the printer is T6_Bluetooth_Printer, the initial password is “1234”; users can change the printer name and password by using<T6 Setting Tools> software. Please see the details in help file of <T6 Setting Tools>. Before working,T6-BT Portable Micro Thermal Printer need to match with primary device. - Page 18 There are three indicators, they are blue and red [CHARGE] light, red [ERROR] light and blue [POWER] indicator. The meanings of each indicator are as below: [CHARGE] indicator Blue light constant on: charging complete; Red light constant on: on charging; Two lights on: there are some mistakes, please check whether the battery connecting well.
-
Page 19: Magcard Operation
condition; Three low: low battery, sounds every five minutes. 3.6 MSR Card Operation 3.6.1 Functions of MSR Card T6 has the function of reading MSR cards. The MSR card slot is as the picture below: 3.6.2 Reading MSR Card Information Setting the card mode by sending 1CH 4DH 31H (32H,33H,36H) to the printer through serial, USB or blue tooth. -
Page 20: Ic Card Operation
direction shown in the picture above. If succeed, the printer will send out the beeping of “one high one low”, and showing “punch the card successfully”, at the same time, sending the information of the card to client-side according to relevant transfer channel, and quitting the card mode back to the normal printing mode. - Page 22 The printers will enter the IC Card mode when sending 1BH 4EH command to the printers under normal printing mode. Under IC Card mode, except the command of quiting the IC Card mode, all other command operations abide by an agreement called block, at the same time, every block of datas is contained between two 7EH, only this kind of data format can be identified by the printer and card reader.
- Page 23 7EH, the function of this command is to power up to the IC Card, it matches the block agreement and packed format completely. The detailed description of block agreement please see < T6 Printer Developing Guide >; After powering up the IC Card, it needs to select the type of the IC Card first, CPU card is default;...
-
Page 24: Chapter 4 Other Informations
Chapter 4 Other Information 4.1 Printer Developing Guide <T6 Technical Manual> is a technical manual for engineer to develop printer utility, and users can claim our company for it. This manual including the technical description of hardware interface(serial port communication, Bluetooth, USB interface),technical documentation of printing control instruction set, and others such as how to print black mark and locate by it. - Page 25 Print Position: As the picture above, the black mark should be printed on the right edge of the letters. Width range: width≥7mm Height range: 4mm≤height≤6mm Reflectivity to infrared ray:<10%(infrared ray reflectivity of other parts of the black mark paper is >65%) Hps: it is the distance between edges of black mark and loading position.
- Page 26 Manufacture has right to amend the content of the instruction without prior announcement! Beijing Spirit Technology Development Co.,Ltd Address:No.26,Ave 4,Chuangye Middle Roda,Shangdi Information Industry Park,Beijing,China Post Code:100085 Tel:+86 10 51661178 Fax:+86 10 51661178-190 Technical Support:+86 10 51661178-167 62969379 E-mail:support@sprinter.com.cn...
-
Page 27: Appendix
Appendix Appendix is the usage of setting printer parameter: Description: Hold on [MODE] button and power on the printer to make the printer enter into SETUP mode. Then use [FEED] button to select setup items, press [FEED] button each time, the setup item moves to next one, and it displays the first parameter of the current item.
