Quick Guide to Using the Venus GX and
Battery Monitor BMV-702
Using the Venus GX and BMV-702 Battery Monitor
The SICS Venus GX is the information centre of the SICS. It provides real-time data on the performance
and status of the power system, as well as an archive of this data from the previous 30 days.
The Venus GX and BMV-702 are supplied pre-configured and require no setting up by the user. Once
the Venus GX is configured on the TCO Network it can be accessed from an authorised workstation or
on a device connected to the external ethernet port on the rear of the SICS cabinet. The BMV-702
includes an integrated LCD display for checking the SICS battery voltage from inside the SICS cabinet.
However, it is not recommended to open the SICS cabinet during the winter period due to the risk of
condensation and heat loss from the cabinet.
Venus GX: Reading Live Performance Data
To access the Venus GX, type its IP address in the URL bar of an internet browser on an authorised
workstation connected to the correct network. This can also be carried out with a laptop computer
connected to the external ethernet port on the rear panel of a deployed SICS in the field.

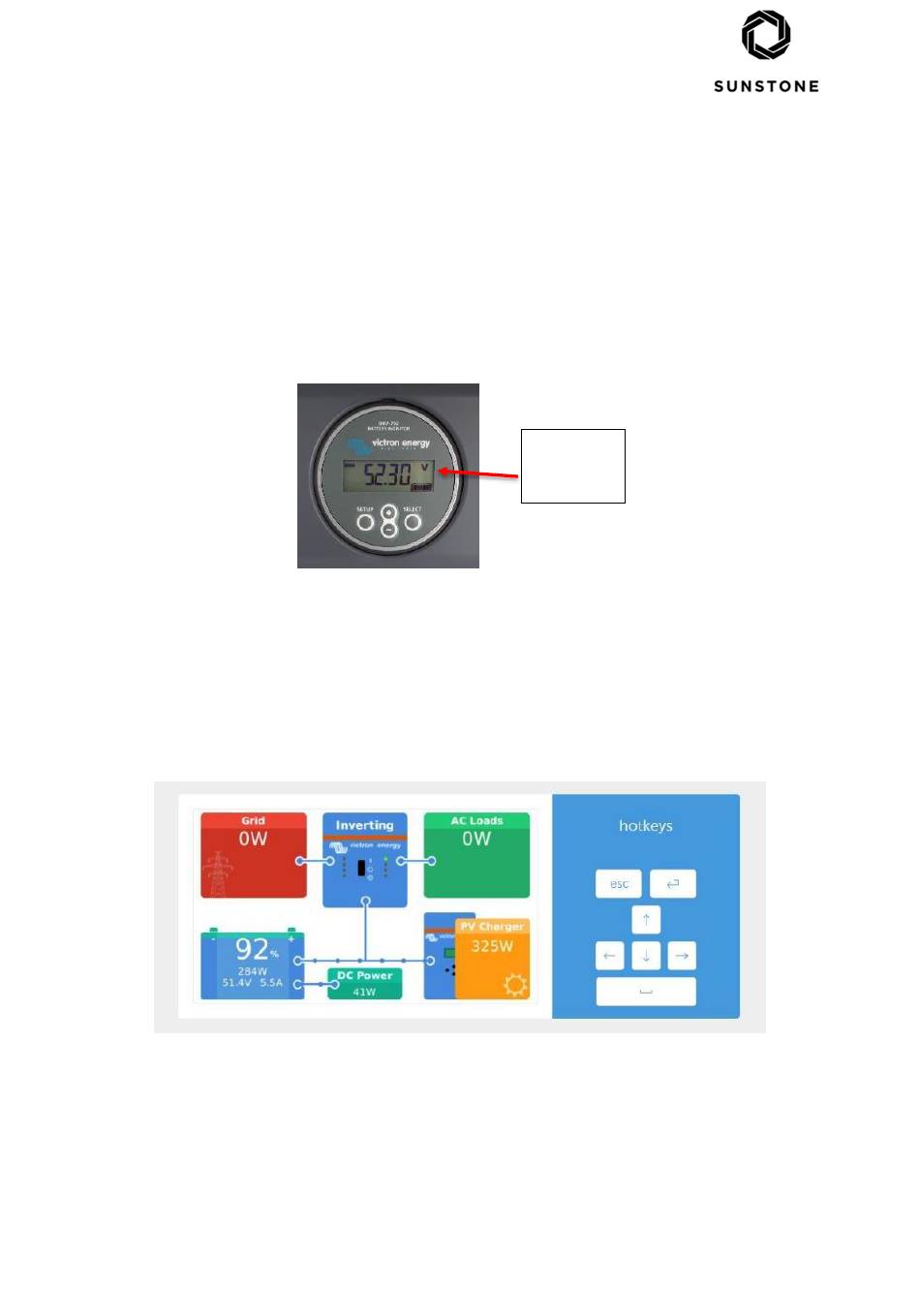

The live performance page (shown in the image above) will be displayed in the browser window and
displays the following information:
Quick Guide to Using the Venus GX and Battery Monitor BMV-702 V001
BMV-702
Battery
Monitor
12-07-2018
Advertisement
Related Manuals for SUNSTONE Venus GX
Summary of Contents for SUNSTONE Venus GX
- Page 1 Venus GX: Reading Live Performance Data To access the Venus GX, type its IP address in the URL bar of an internet browser on an authorised workstation connected to the correct network. This can also be carried out with a laptop computer connected to the external ethernet port on the rear panel of a deployed SICS in the field.
- Page 2 44.0 V and poor solar conditions are expected (see Training Manual 040-0000-AAA-MAN-000-SU6- 00001-00 Section G2 for details on charging the batteries). The system will automatically switch on again when the system voltage rises to 46 V. Quick Guide to Using the Venus GX and Battery Monitor BMV-702 V001 12-07-2018...
- Page 3 Accessing 30 Day Archive Data Click the return hotkey on the Venus GX browser display to show the Devices List. Use the up/down hotkeys to highlight the BlueSolar Charger MPPT 150/35 and click the right arrow hotkey to access its menu.
- Page 4 Charge time (Float): the total time spent top-up charging the battery to maintain charge at maximum (hours and minutes). • Last error: any errors detected by the Battery Protect. Quick Guide to Using the Venus GX and Battery Monitor BMV-702 V001 12-07-2018...
- Page 5 Battery Monitor BMV-702 Changing the Language of the Venus GX Click the return hotkey on the Venus GX browser display to show the Devices List. Use the up/down hotkeys to highlight Settings and then click the right arrow hotkey. Use the up/down hotkeys to highlight Display & Language and click the right arrow hotkey.
- Page 6 The external ethernet port is secured behind a lockable cover and protected by a weatherproof screwcap (see images below). The Venus GX can then be accessed by typing its IP address in the URL bar of an internet browser.
- Page 7 Using the BMV-702 Battery Monitor The SICS cabinet is fitted with the BMV-702 Battery Monitor. The Battery Monitor is preconfigured and requires no setup by the user. However, it can be used via the Venus GX to display key information about the batteries.
- Page 8 Quick Guide to Using the Venus GX and Battery Monitor BMV-702 Use the up/down hotkeys to highlight History and then click the right arrow hotkey. The Venus GX browser display will now show key information about the batteries since their initial installation and setup.
- Page 9 During normal operation it is common for the battery percentage state-of-charge and battery voltage displayed on the BMV-702 Battery Monitor and Venus GX to gradually drift from the true value. Each time the batteries are fully charged, these parameters will synchronise and allow the BMV-702 to display an accurate Time-to-Go value (see Training Manual 040-0000-AAA-MAN-000-SU6-00001-00 Section G2).
