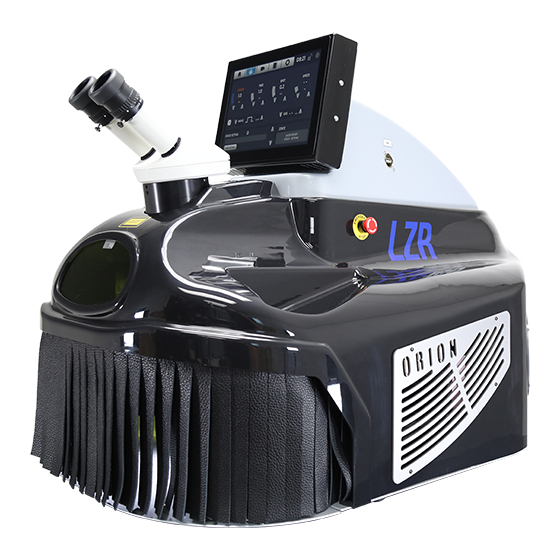

SUNSTONE Orion LZR Benchtop Laser Welder User Manual
  1. Manuals
  2. Brands
  3. SUNSTONE Manuals
  4. Welding System
  5. Orion LZR Benchtop Laser Welder
  6. User manual

SUNSTONE Orion LZR Benchtop Laser Welder User Manual

Laser welder
Hide thumbs
Table of Contents

Advertisement

Quick Links

LZR Laser Welder
Benchtop Users Guide
Version 20200708 • Part #1154
e Micro Welder Experts

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Orion LZR Benchtop Laser Welder and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SUNSTONE Orion LZR Benchtop Laser Welder

Summary of Contents for SUNSTONE Orion LZR Benchtop Laser Welder

  • Page 1 LZR Laser Welder Benchtop Users Guide Version 20200708 • Part #1154 e Micro Welder Experts...
  • Page 2 INCIDENTAL, CONSEQUENTIAL, SPECIAL, EXEMPLARY OR PUNITIVE DAMAGES, OF ANY NATURE WHAT- SOEVER, ARISING OUT OF THE USE OF OR INABILITY TO USE ANY SUNSTONE ENGINEERING LLC PROD- UCT, INCLUDING, WITHOUT LIMITATION, PROPERTY DAMAGE, LOSS OF VALUE OF THE SUNSTONE ENGI-...

  • Page 3: Table Of Contents

    e Micro Welder Experts Table of Contents Chapter 1: General Warnings and Safety Chapter 4: Maintenance Laser Recitation Absorption Realigning the Microscope Crosshairs Classification and Danger Levels Periodically Changing the Cooling Water 25 Radiation Vision Conditions How to Remove the Cooling Water Risks for the Eyes and Skin How to Refill the Cooling System General Safety Prescriptions...
  • Page 4 LZR LASER WELDER USERS GUIDE iv • Questions? Call or Text +1-801-658-0015...

  • Page 5: Chapter 1: General Warnings And Safety

    e Micro Welder Experts Chapter 1: General Warnings and Safety Carefully read and follow all instructions to ensure proper use and maintenance of the equipment. Read all gen- eral warnings and cautions before operating the welder. LASER WARNING Be aware of the danger of being exposed to visible and invisible laser radiation. If you see this symbol: •...
  • Page 6 LZR LASER WELDER USERS GUIDE EXPLOSION WARNING The Argon gas cylinder is under pressure and can consequently explode if the cylinder is not handled with the necessary cautions. • Protect any cylinder from excessive heat and mechanical stresses. • Install the cylinders in a vertical position and position it with a fixed support chain or with a proper cylinder case to avoid falls or knocks.

  • Page 7: Laser Recitation Absorption

    e Micro Welder Experts the back of the welder in accordance with this manual and any local standards and rules. • Switch off the welder when not in use. • Do not use any power cables that are damaged or that are not rated for this welder.

  • Page 8: Classification And Danger Levels

    LZR LASER WELDER USERS GUIDE The extent of damages due to radiation absorption depends on the wavelength. The short wavelengths (ultra- violet UV-C 180-280nm, UV-B 180-280nm, UV-A 315-400nm) generally provoke and cause photochemistry effects: cataract or opacification of the lens in the eye, blackening or reddening for the skin. Major wavelengths (infrared: IR-a 780-1400nm IR-c 3000-10 E6nm) generally provoke thermal effects: retinal detachment and pho- tocoagulation for the eye, burning for the skin.

  • Page 9: Risks For The Eyes And Skin

    NOTE: Do not open and access internal parts of the welder. Only to authorized personnel who are qualified, trained, and aware of the potential electric risks. Sunstone Engineering denies all responsibility for any interven- tions on behalf of untrained personnel.
  • Page 10 LZR LASER WELDER USERS GUIDE Laser N. 3. Radiation Information. 104 x 52, 52 x 26 Laser N. 4. Laser Exposure Information. 56 x 40 Laser N.5. Laser Technical Data. 104 x 25 Laser N.6. Laser Opening Information. 104 x 26 Electric N.1.

  • Page 11: Technical Specifications

    e Micro Welder Experts Technical Specifications SPECIFICATION DESCRIPTION Electric Input VAC 110V or 230V Electric Power Phase Single Phase Electric Frequency Hz 50-60 Hz Average Energy Consumption 100 W Laser Crystal Type Nd:YAG Wavelength 1064 nm Weld Energy 0.1-60 or 0.1-100 J Weld Length 0.5-10 ms Repetition Frequency...

  • Page 12: Chapter 2: Installation

    Connect the foot pedal to the Remote Control Port found on the rear of the welder (see Figure 9.1). ATTENTION: Use only the cables and equipment shipped with the welder or provided by Sunstone. Do not substitute or change any cables or plugs. •...

  • Page 13: Adding Cooling Water

    e Micro Welder Experts Figure 9.1 Foot Pedal Connection. Figure 9.2 Attach eyepieces to the microscope tubes and tighten the screws with an Allen wrench. Generally speaking, the eyepiece with the crosshairs is attached to the right tube. Adding Cooling Water NOTE: During the first setup and installation, extra steps are needed to get the welder functioning.

  • Page 14: Powering The Welder For The First Time

    Push the internal joystick down and hold down for 5 to 6 seconds or until you hear the welder’s fans and the pump turn on. The air will be forced out of the system. You should not see the error message. If the error message persists, call Sunstone’s customer service team at +1-801-658- 0015 for assistance.

  • Page 15: Chapter 3: Controls

    e Micro Welder Experts Chapter 3: Controls Chamber Controls Welder controls are conveniently placed inside the Orion LZR laser welder’s chamber. Refer to Figure 11.1 to see where these controls are placed. From within the chamber, you are able to: •...

  • Page 16: Joystick Control

    LZR LASER WELDER USERS GUIDE Moving the Joystick up will cycle up through the different parameters displayed on the touchscreen interface Moving the Joystick to the Moving the Joystick to the left will decease the value of right will increase the value the parameter selected on of the parameter selected on the touchscreen interface.

  • Page 17: Touchscreen Display Controls

    e Micro Welder Experts Figure 13.1. The Orion LZR laser welder’s features are controlled with the Touchscreen Display. Touch the screen with your finger to make changes to features or control settings. Touchscreen Display Controls You are able to control all weld parameters from the Touchscreen Display Control (see Figure 13.1). Simply use your finger to touch the screen or the Joystick to select features or control settings.

  • Page 18: Camera Tab

    The Spot Size Slider is used to set and adjust the weld spot diameter. Be aware that reducing the spot size channel the energy into a smaller area, which will affect the weld results. Sunstone recommends reducing the power slightly when reducing the spot size.
  • Page 19 e Micro Welder Experts Figure 15.1. When you press the Cam Tab you are able to view the weld area while still accessing weld parameter controls. cycle through the parameters and make adjustments using the Joystick found inside the weld chamber. The Joystick-selected parameter is highlighted with an orange box and text.

  • Page 20: Video Tab

    LZR LASER WELDER USERS GUIDE Memory This box will display instructions, status conditions, system settings, warnings, and error messages. Zoom Tapping this button will change the camera zoom from 1x to 2x to 4x and then back to 1x. Menu The Menu Button will replace the on-screen weld parameters with certain parameters relating to the camera.

  • Page 21: Settings Tab

    e Micro Welder Experts Figure 17.1. Press the Manuals Tab to access this documentation. Figure 17.2. Press the Settings Tab to display general welder settings. SETTINGS TAB The Settings Screen has multiple sub-tabs with different contents. See Figure 17.2. The main settings screen displays the weld counter, firmware version, and welder model number.
  • Page 22 LZR LASER WELDER USERS GUIDE Figure 18.1. Press the Parameters Tab to set Stand-by Time, Platform Step, and view welder temperatures and other controls. Figure 18.2. Press the Memory Set Tab to load or save any weld setting. Memory Set The Memory Set Tab allows you to quickly load any saved setting by number rather than scrolling through one by one.
  • Page 23 +1-801- 658-0015. Contact The Contact Tab displays all the contact details for Sunstone Engineering LLC should you need customer ser- vice assistance. See Figure 19.2. Engine Control The Engine Control Tab can be used when the welder is equipped with optional accessories designed for automated welding.
  • Page 24 LZR LASER WELDER USERS GUIDE Figure 20.1. Press the Networking Tab to connect the welder to a LAN so it can be controlled remotely. Figure 20.2. Press the Software Management Tab to update the welder’s software. Networking The Networking Tab can be used to connect the welder to a LAN, which in turn can allow you to control the welder remotely.
  • Page 25 e Micro Welder Experts Figure 21.1. The Orion LZR laser welder can be controlled using eight different languages. Press the Language Tab to select the language of choice. Language The Language Tab can be used to change the language of the interface. Available languages include: English, Spanish, Italian, German, French, Russian, Turkish, and Vietnamese.

  • Page 26: Chapter 4: Maintenance

    Any required maintenance on the laser’s optic rail and trajectory path, must be performed EXCLUSIVELY by Sunstone Engineering or an agent authorized by Sunstone Engineering. In order to keep your welder in a safe and optimal working condition, ensure that the following safety measures are followed: •...

  • Page 27: Realigning The Microscope Crosshairs

    e Micro Welder Experts Figure 23.1. Cleaning or replacing the Protection Lens is a maintenance task you should perform periodically. Screw A Screw B Housing Unit C • Unscrew the two screws A and B seen in Figure 23.1. • Disconnect the housing unit C from the optic assembly and remove the lens.
  • Page 28 LZR LASER WELDER USERS GUIDE Figure 24.1. Before realigning the crosshairs, make sure the microscope is firmly attached to the welder. Screw C Screw D Adjusts the up/ Adjusts the left/right down position position of the laser. of the laser. Figure 24.2.

  • Page 29: Periodically Changing The Cooling Water

    e Micro Welder Experts Screw C adjusts the vertical (up/down) positioning of the laser. Turning the screw in a clockwise direction will raise the weld spot location. Screw D adjusts the horizontal (left/right) positioning. Turning the screw in a clockwise direction will move the weld spot location to the right.

  • Page 30: How To Refill The Cooling System

    LZR LASER WELDER USERS GUIDE Figure 26.1. To refill the cooling tank, connect the plastic hose to the Female Connector. Connect the funnel to the hose. Remove the Red Plug from the Upper Connector. Fill the tank until water comes out of the upper tank.

  • Page 31: Chapter 5: Error Messages And Troubleshooting

    REMEDY NUMBER Error Simmer The laser lamp is not switching on. A. Check the fuse. B. Contact Sunstone Engineering. Not Working The refrigerating liquid is not flowing A. Make sure there is water in the inside the cooling pipes. welder, and that the water level is Refrigerating Liquid full.
  • Page 32 B. Dust or dirt left on the cooling that may have settled inside. fans. C. Contact Sunstone Engineering. C. Non-working cooling fans. Relay Input The welder will not weld. A. Check the connection to the power supply.
  • Page 33 e Micro Welder Experts PROBLEM RESOLUTION The shielding gas doesn’t flow when the pedal is A. Check the home screen to verify the gas flow is pushed. turned on. B. Check that the input pressure is not higher than 2 Bars.

  • Page 34: Chapter 6: Safety Systems

    LZR LASER WELDER USERS GUIDE Chapter 6: Safety Systems The Orion LZR laser welder is equipped with a high number of safety system checks designed to prevent laser radiation leaks. These safety systems include the following: Resonator Shutter The Resonator Shutter is formed from a small flag controlled by an electromagnet and it is placed inside the Laser Resonator.
  • Page 35 ATTENTION: If this filter should ever break, it is very important to get it replaced with a new filter. To ensure safety, use only original and approved spare parts from Sunstone Engineering. Leather Strips Protecting the Chamber Opening Figure 31.2. Weld Chamber Infrared Filter..

  • Page 36: Chapter 7: Suggested Settings

    LZR LASER WELDER USERS GUIDE Chapter 7: Suggested Settings METAL TYPE POWER SPOT SIZE TIME ms FREQUENCY WAVE Yellow Gold Thin SLO+ Yellow Gold Wire SLO+ Yellow Gold Smoothing SLO+ White Gold Thin SLO- White Gold Wire SLO- White Gold Smoothing SLO- Rose Gold Thin SLO+...
  • Page 37 Other World-Class Micro Welders from Sunstone: e Micro Welder Experts The World’s Most Advanced Micro TIG Welder When you need a tiny little weld in exactly the right spot! +1-801-658-0015 Call or Text www.sunstonewelders.com e Micro Welder Experts Questions? Call or Text +1-801-658-0015 • 33...
  • Page 38 1693 American Way Ste 5 • Payson UT 84651 USA Tel. +1-801-658-0015 wwww.sunstonewelders.com PART #1154 ©2020 Sunstone Engineering LLC. Safety information subject to change. Sunstone and Orion are trademarks of Sunstone Engineering LLC. 20200708 • 34 • Questions? Call or Text +1-801-658-0015...
