E2S STExB2X05 Instruction Manual page 7

8) Flash Pattern Settings
8.1. Flash Rate Setting
Warning – high-intensity light source.
Avoid looking directly at the light source for
extended periods of time.
The STExB2 beacons can produce different flash patterns as
shown in Table 3. The flash patterns are selected by operation
of the flash setting DIP switch on the PCBA (See Fig 6).

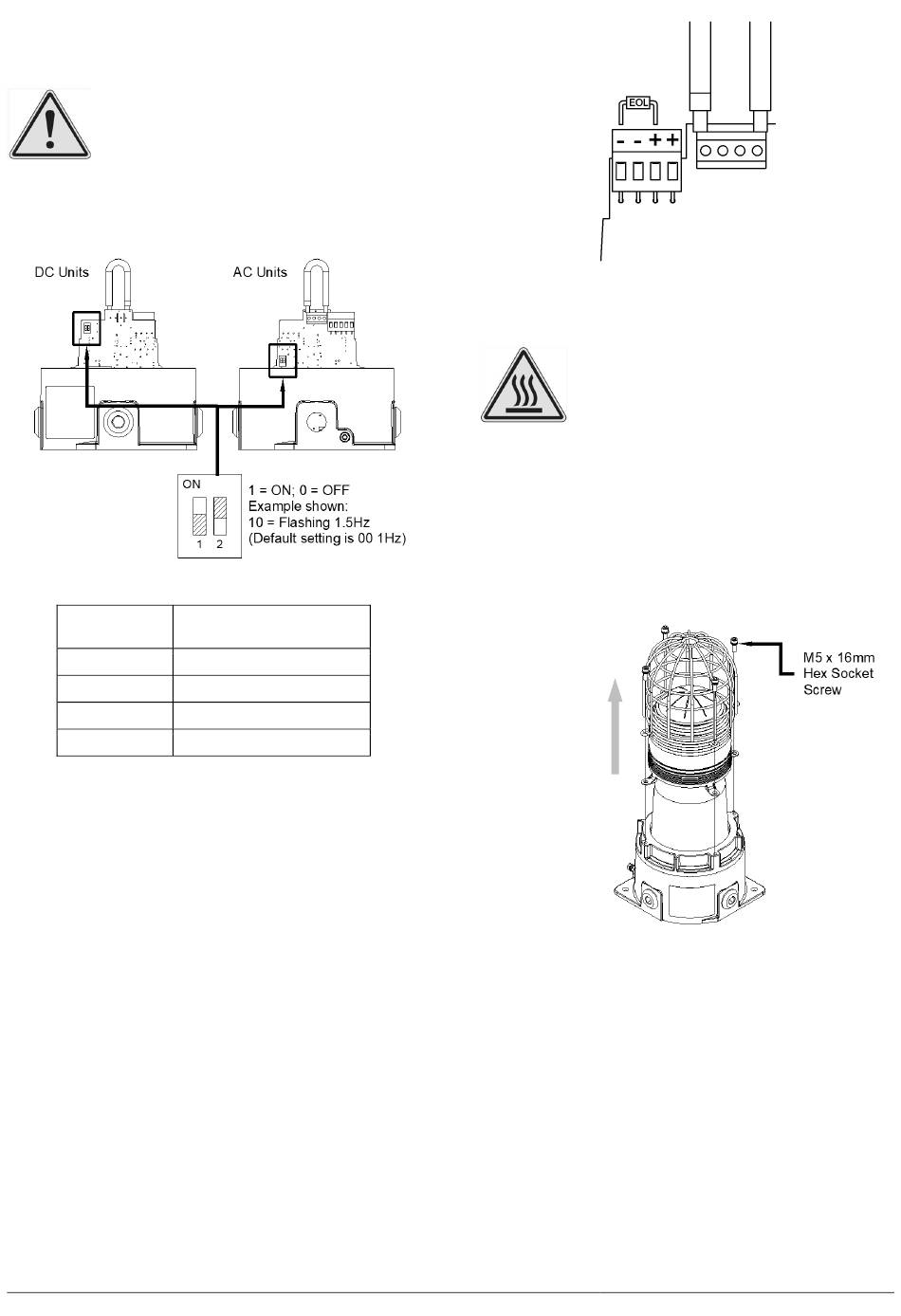

Figure 6: DIP Switch Location.
Switch
Setting
00
01
10
11
Table 4: Switch Positions for Flash Patterns
9) End of Line Monitoring (DC Units)
All DC units have a blocking diode fitted in their supply input
lines. An end of line monitoring diode or an end of line
monitoring resistor can be connected across the +ve and –ve
terminals in the flameproof chamber. If an end of line resistor
is used it must have a minimum resistance value of 3k3 ohms
and a minimum wattage of 0.5W or a minimum resistance
value of 500 ohms and a minimum wattage of 2W.
The resistor must be connected directly across the +ve and -
ve terminals as shown in the following drawing. The resistor
leads should be kept as short as possible.
E2S Warning Signals Impress House, Mansell Road, Acton, London W3 7QH
Document No. D199-00-201-IS
S1 Mode
1Hz (60FPM)
1.33Hz (80FPM)
1.5Hz (90FPM)
Double Flash
Issue 5 28-11-22
Figure 7: End of Line Resistor Placement.
10) Interchangeable & Spare Parts
Warning – Hot surfaces. External surfaces
and internal components may be hot after
operation, take care when handling the
equipment.
The beacon lens is interchangeable, contact European Safety
Systems Ltd for a replacement lens available in various
colours.
The guard is an integral part of the protection and must be
reassembled exactly the same way as it was disassembled.
To change the lens, unscrew the M5 socket head screws and
remove the M5 screws, M5 spring & flat washers.
Figure 8: Removal of Lens.
Remove the guard and replace the old lens with the new lens.
www.e2s.com Tel: +44 (0)208 743 8880
Sheet 7 of 8
