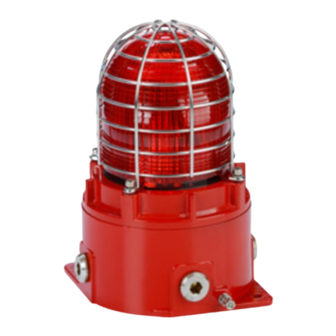

E2S STExB2X05 Series Instruction Manual
Flameproof xenon beacons with relay / telephone initiation for use in flammable gas and dust atmospheres
Hide thumbs
Also See for STExB2X05 Series:
- Instruction manual (16 pages) ,
- Instruction manual (20 pages)
Advertisement
Quick Links

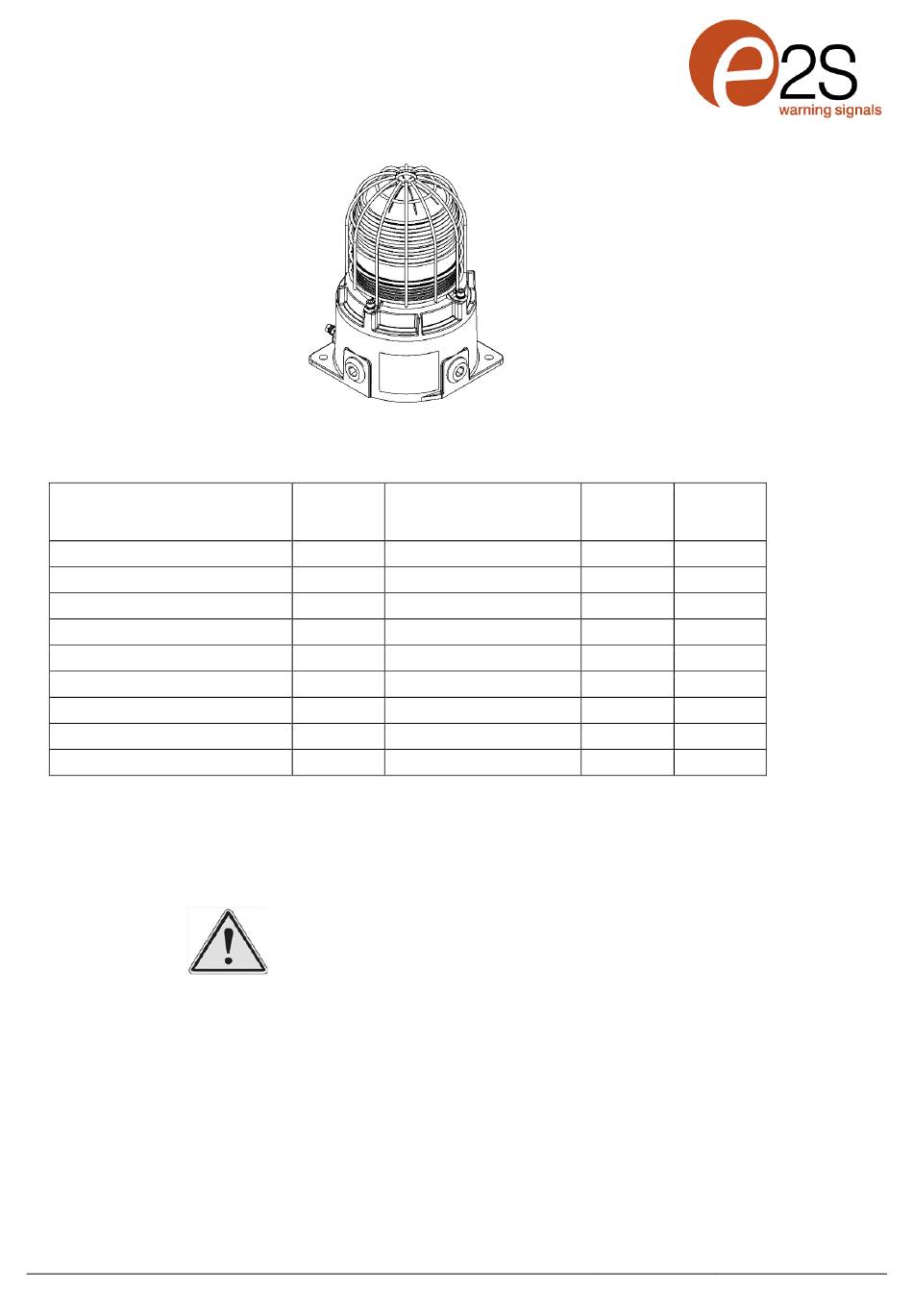

INSTRUCTION MANUAL
STExB2X05, STExB2X10 & STExB2X15
Flameproof Xenon Beacons with relay / telephone initiation
For use in Flammable Gas and Dust Atmospheres
1) Product Table
Model
STExB2X05DC024-T
STExB2X05AC115-T
STExB2X05AC230-T
STExB2X10DC024-T
STExB2X10AC115-T
STExB2X10AC230-T
STExB2X15DC024-T
STExB2X15AC115-T
STExB2X15AC230--T
Ensure the system power supply is capable of providing the maximum current required for all beacons. Review associated cable size,
length and quantity of beacons on each circuit.
2) Warnings
• DO NOT OPEN WHEN AN EXPLOSIVE ATMOSPHERE IS
PRESENT.
• POTENTIAL ELECTROSTATIC CHARGING HAZARD –
CLEAN ONLY WITH A DAMP CLOTH.
• ALL ENTRIES M20 X 1.5MM.
• USE SUITABLE RATED CABLES AND CABLE GLANDS
IF TEMPERATURE EXCEEDS 70ºC AT ENTRY OR 80ºC
AT BRANCHING POINT.
E2S Warning Signals
Impress House, Mansell Road, Acton, London W3 7QH
Document No. D199-00-581-IS
Nom.
Voltage Range
Voltage
24Vdc
20-28Vdc
115Vac
110-120Vac 50/60Hz
230Vac
220-240Vac 50/60Hz
24Vdc
20-28Vdc
115Vac
110-120Vac 50/60Hz
230Vac
220-240Vac 50/60Hz
24Vdc
20-28Vdc
115Vac
110-120Vac 50/60Hz
230Vac
220-240Vac 50/60Hz
Issue 1
07-11-23
STExB2X05-T
STExB2X10-T
STExB2X15-T
Nom.
Operating
Max Current
Current*
295mA
350mA
140mA
200mA
70mA
100mA
605mA
710mA
220mA
300mA
130mA
180mA
835mA
920mA
310mA
420mA
170mA
230mA
www.e2s.com
Tel: +44 (0)208 743 8880
Sheet 1 of 7
Advertisement
Related Manuals for E2S STExB2X05 Series
Summary of Contents for E2S STExB2X05 Series
- Page 1 • ALL ENTRIES M20 X 1.5MM. • USE SUITABLE RATED CABLES AND CABLE GLANDS IF TEMPERATURE EXCEEDS 70ºC AT ENTRY OR 80ºC AT BRANCHING POINT. E2S Warning Signals Impress House, Mansell Road, Acton, London W3 7QH www.e2s.com Tel: +44 (0)208 743 8880 Document No.
- Page 2 4) Zones, Gas Group, Category and IP66 to EN60529 Temperature Classification The units can be installed in locations with the following conditions: E2S Warning Signals Impress House, Mansell Road, Acton, London W3 7QH www.e2s.com Tel: +44 (0)208 743 8880 Document No. D199-00-581-IS...
-
Page 3: Special Conditions For Safe Use
Warning – Hot surfaces. External the necessary training. surfaces and internal components may be hot after operation, take care when handling the equipment. E2S Warning Signals Impress House, Mansell Road, Acton, London W3 7QH www.e2s.com Tel: +44 (0)208 743 8880 Document No. D199-00-581-IS... - Page 4 4mm2 in size. adapters, only directly onto the M20 entries. Any other adapters used must be suitably rated and certified adapters. E2S Warning Signals Impress House, Mansell Road, Acton, London W3 7QH www.e2s.com Tel: +44 (0)208 743 8880 Document No. D199-00-581-IS...
- Page 5 For AC and DC voltage wiring diagrams see document D250- H2 Header Positions 06-001 Fig 8: Header H1 and H2 Positions E2S Warning Signals Impress House, Mansell Road, Acton, London W3 7QH www.e2s.com Tel: +44 (0)208 743 8880 Document No. D199-00-581-IS...
-
Page 6: Maintenance, Overhaul And Repair
(0000) = All off activation signal. 0000 1000 0100 1100 0010 1010 0110 1110 1111 E2S Warning Signals Impress House, Mansell Road, Acton, London W3 7QH www.e2s.com Tel: +44 (0)208 743 8880 Document No. D199-00-581-IS Issue 1 07-11-23 Sheet 6 of 7... - Page 7 Fit the guard back on to the lens and casting, align the holes of the guard, lens and casting. To reattach the lens, the fixings MUST be in the order shown in Figure 11. E2S Warning Signals Impress House, Mansell Road, Acton, London W3 7QH www.e2s.com Tel: +44 (0)208 743 8880 Document No.
- Page 8 16/03/2023 WRITTEN CONSENT. IMPRESS HOUSE STANDARDS MANSELL ROAD EUROPEAN SAFETY SYSTEMS LTD. ACTON DRAWING NUMBER ALTERNATIVE MATERIAL AS PER LATEST DATE OF ISSUE SHOWN ABOVE LONDON W3 7QH SCALE SHEET APPROVED DATE ALERTALARM RANGE D250-06-001 WWW.E2S.COM NTS 1 16/03/2023 R.N.POTTS...
-
Page 9: Eu Declaration Of Conformity
Notified Body No.: 0539 Borupvang 5A, 2750 Ballerup, Denmark EU‐type Examination Certificate (Module B): DEMKO 16ATEX1466X Notified Body for Quality Assurance Notification / Conformity to EU‐type Sira Certification Service based on Notified Body No.: 2813 quality assurance of the production process (Module D): CSA Group Netherlands B.V, Utrechtseweg 310, 6812 AR, Arnhem, Netherlands Quality Assurance Notification (Module D): SIRA 05 ATEX M342 Provisions fulfilled by the equipment: II 2G Ex db IIC T6…T3 Gb II 2D Ex tb IIIC T82°C…T137°C Db IP6X Dust Protection to EN60079‐0 / EN60079‐31 Standards applied: EN IEC 60079‐0: 2018 EN 60079‐1: 2014 EN 60079‐31: 2014 Directive 2014/30/EU: Electromagnetic Compatibility Directive (EMC) Standards applied: EN 61000‐6‐1:2007 EN 61000‐6‐2:2005 EN 61000‐6‐3:2007 / A1:2011 / AC: 2012 EN 61000‐6‐4:2007 / A1: 2011 Directive 2011/65/EU: Restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS) The product and all the components contained within it are in accordance with the restriction of the use of hazardous substances in electrical and electronic equipment, including amendment by Directive 2015/863/EU. Regulation (EC) 1907/2006: Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) The product and all the components contained within it are free from substances of very high concern. Other Standards and Regulations EN 60529:1991 / A1:2000 / A2:2013 ‐ Degrees of protection provided by enclosures (IP code) – enclosure rated IP66 E2S Telephone: +44 (0)20 8743 8880 Fax: +44 (0)20 8740 4200 Email: sales@e2s.com www.e2s.com DC‐070_Issue_G (STEx).docx ‐ Page 1 of 2 ‐ QAF_252_Issue_5... - Page 10 EU Declaration of Conformity On behalf of European Safety Systems Ltd., I declare that, on the date the equipment accompanied by this declaration is placed on the market, the equipment conforms with all technical and regulatory requirements of the above listed directives, regulations and standards. This Declaration is issued under the sole responsibility of the manufacturer. Martin Streetz Document No.: DC‐070_Issue_G Quality Assurance Manager Date and Place of Issue: London, 03/12/2021 E2S Telephone: +44 (0)20 8743 8880 Fax: +44 (0)20 8740 4200 Email: sales@e2s.com www.e2s.com DC‐070_Issue_G (STEx).docx ‐ Page 2 of 2 ‐ QAF_252_Issue_5...
- Page 11 Unit 1‐3 Horizon Kingsland Business Park, Wade Road, Basingstoke, Hampshire RG24 8AH UK UK‐type Examination Certificate (Module B): UL21UKEX2019X Notified Body for Quality Assurance Notification / Conformity to EU‐type Sira Certification Service based on Notified Body No.: 0518 quality assurance of the production process (Module D): Rake Lane, Eccleston, Chester CH4 9JN, UK Quality Assurance Notification (Module D): CSAE 22UKQAN0046 Provisions fulfilled by the equipment: II 2G Ex db IIC T6…T3 Gb II 2D Ex tb IIIC T85°C…T137°C Db IP6X Dust Protection to EN60079‐0 / EN60079‐31 Standards applied: EN IEC 60079‐0: 2018 EN 60079‐1: 2014 EN 60079‐31: 2014 Directive 2014/30/EU: Electromagnetic Compatibility Directive (EMC) Standards applied: EN 61000‐6‐1:2007 EN 61000‐6‐2:2005 EN 61000‐6‐3:2007 / A1:2011 / AC: 2012 EN 61000‐6‐4:2007 / A1: 2011 Directive 2011/65/EU: Restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS) The product and all the components contained within it are in accordance with the restriction of the use of hazardous substances in electrical and electronic equipment, including amendment by Directive 2015/863/EU. Regulation (EC) 1907/2006: Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) The product and all the components contained within it are free from substances of very high concern. Other Standards and Regulations EN 60529:1991 / A1:2000 / A2:2013 ‐ Degrees of protection provided by enclosures (IP code) – enclosure rated IP66 E2S Telephone: +44 (0)20 8743 8880 Fax: +44 (0)20 8740 4200 Email: sales@e2s.com www.e2s.com DC‐100_Issue_A (STEx)‐ Page 1 of 2 ‐ QAF_252_Issue_5...
- Page 12 UKCA Declaration of Conformity On behalf of European Safety Systems Ltd., I declare that, on the date the equipment accompanied by this declaration is placed on the market, the equipment conforms with all technical and regulatory requirements of the above listed directives, regulations and standards. This Declaration is issued under the sole responsibility of the manufacturer. Martin Streetz Document No.: DC‐100_Issue_A Quality Assurance Manager Date and Place of Issue: London, 24/02/2022 E2S Telephone: +44 (0)20 8743 8880 Fax: +44 (0)20 8740 4200 Email: sales@e2s.com www.e2s.com DC‐100_Issue_A (STEx) ‐ Page 2 of 2 ‐ QAF_252_Issue_5...
