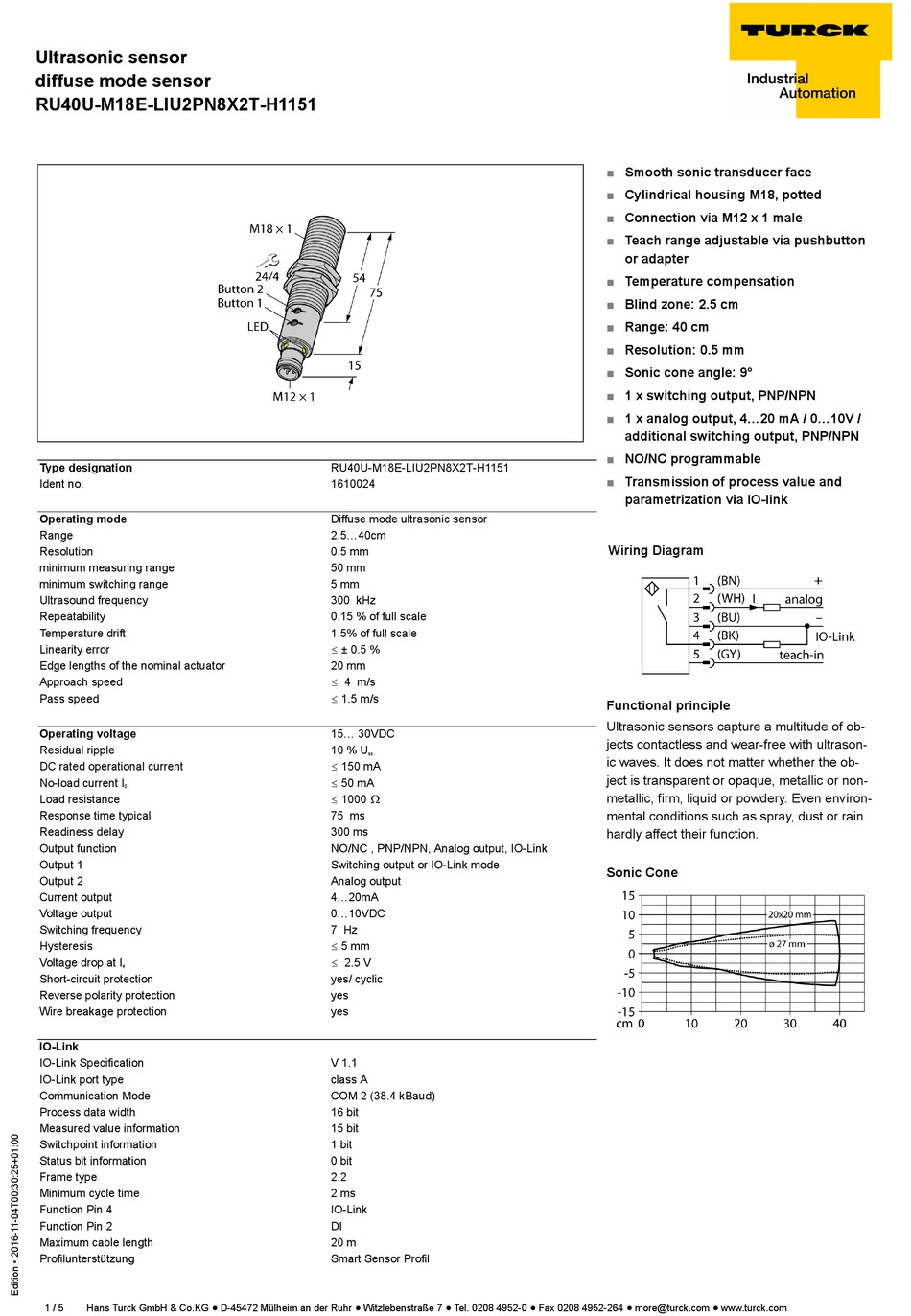

turck RU40U-M18E-LIU2PN8X2T-H1151 Quick Start Manual

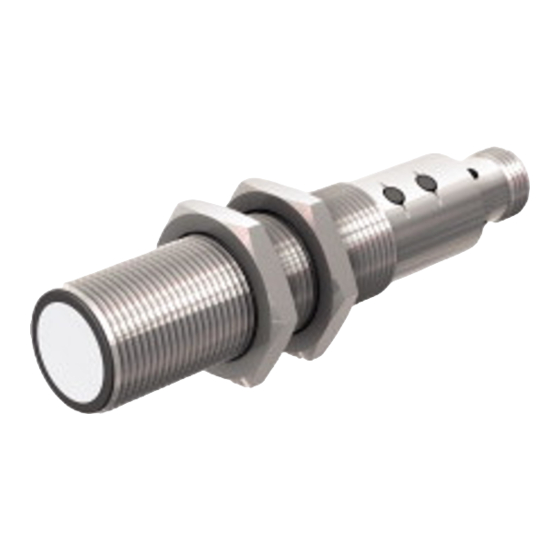

Ultrasonic sensor
diffuse mode sensor
RU40U-M18E-LIU2PN8X2T-H1151
Type designation
Ident no.
Operating mode
Range
Resolution
minimum measuring range
minimum switching range
Ultrasound frequency
Repeatability
Temperature drift
Linearity error
Edge lengths of the nominal actuator
Approach speed
Pass speed
Operating voltage
Residual ripple
DC rated operational current
No-load current I
0
Load resistance
Response time typical
Readiness delay
Output function
Output 1
Output 2
Current output
Voltage output
Switching frequency
Hysteresis
Voltage drop at I
e
Short-circuit protection
Reverse polarity protection
Wire breakage protection
IO-Link
IO-Link Specification
IO-Link port type
Communication Mode
Process data width
Measured value information
Switchpoint information
Status bit information
Frame type
Minimum cycle time
Function Pin 4
Function Pin 2
Maximum cable length
Profilunterstützung
1 / 5 Hans Turck GmbH & Co.KG ñ D-45472 Mülheim an der Ruhr ñ Witzlebenstraße 7 ñ Tel. 0208 4952-0 ñ Fax 0208 4952-264 ñ more@turck.com ñ www.turck.com
RU40U-M18E-LIU2PN8X2T-H1151
1610024
Diffuse mode ultrasonic sensor
2.5...40cm
0.5 mm
50 mm
5 mm
300 kHz
0.15 % of full scale
1.5% of full scale
ð ± 0.5 %
20 mm
ð 4 m/s
ð 1.5 m/s
15... 30VDC
10 % U
ss
ð 150 mA
ð 50 mA
ð 1000 ò
75 ms
300 ms
NO/NC , PNP/NPN, Analog output, IO-Link
Switching output or IO-Link mode
Analog output
4...20mA
0...10VDC
7 Hz
ð 5 mm
ð 2.5 V
yes/ cyclic
yes
yes
V 1.1
class A
COM 2 (38.4 kBaud)
16 bit
15 bit
1 bit
0 bit
2.2
2 ms
IO-Link
DI
20 m
Smart Sensor Profil
■ Smooth sonic transducer face
■ Cylindrical housing M18, potted
■ Connection via M12 x 1 male
■ Teach range adjustable via pushbutton
or adapter
■ Temperature compensation
■ Blind zone: 2.5 cm
■ Range: 40 cm
■ Resolution: 0.5 mm
■ Sonic cone angle: 9°
■ 1 x switching output, PNP/NPN
■ 1 x analog output, 4...20 mA / 0...10V /
additional switching output, PNP/NPN
■ NO/NC programmable
■ Transmission of process value and
parametrization via IO-link
Wiring Diagram
Functional principle
Ultrasonic sensors capture a multitude of ob-
jects contactless and wear-free with ultrason-
ic waves. It does not matter whether the ob-
ject is transparent or opaque, metallic or non-
metallic, firm, liquid or powdery. Even environ-
mental conditions such as spray, dust or rain
hardly affect their function.
Sonic Cone
